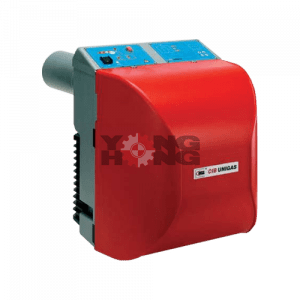

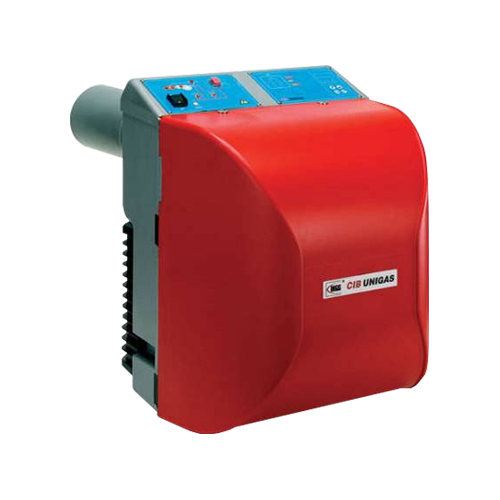

Burners C I B Unigas IDEA LO280-LO550 is a light oil burner designed for industrial applications that require high heat output. The burner is made from high-quality materials for durability and long-lasting performance. It comes with an electronic control system for easy, safe, and precise operation.
| Burner type | Model | Power [min, kW] | Power [max, kW] | Oil flow [min, kg/h] | Oil flow [max, kg/h] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Power supply [aux, kW] | Protection class IP |
| LO280 | G-.TN.S.xx.A | 115 | 310 | 9.7 | 26 | 230 | 1Nac 50 | 0.55 | 0.25 | 0.3 | IP40 |
| LO280 | G-.TN.L.xx.A | 115 | 310 | 9.7 | 26 | 230 | 1Nac 50 | 0.55 | 0.25 | 0.3 | IP40 |
| LO280 | G-.AB.S.xx.A | 70 | 310 | 5.9 | 26 | 230 | 1Nac 50 | 0.55 | 0.25 | 0.3 | IP40 |
| LO280 | G-.AB.L.xx.A | 70 | 310 | 5.9 | 26 | 230 | 1Nac 50 | 0.55 | 0.25 | 0.3 | IP40 |
| LO400 | G-.TN.M.xx.A | 195 | 420 | 16.4 | 35 | 230 | 1Nac 50 | 0.67 | 0.37 | 0.3 | IP40 |
| LO400 | G-.AB.M.xx.A | 115 | 420 | 9.7 | 35 | 230 | 1Nac 50 | 0.67 | 0.37 | 0.3 | IP40 |
| LO400 | G-.AB.M.xx.A.M | 115 | 420 | 9.7 | 35 | 230 | 1Nac 50 | 0.67 | 0.37 | 0.3 | IP40 |
| LO550 | G-.TN.S.xx.A | 200 | 560 | 16.9 | 47 | 230 | 1Nac 50 | 0.92 | 0.62 | 0.3 | IP40 |
| LO550 | G-.TN.L.xx.A | 200 | 560 | 16.9 | 47 | 230 | 1Nac 50 | 0.92 | 0.62 | 0.3 | IP40 |
| LO550 | G-.AB.S.xx.A | 160 | 560 | 13.5 | 47 | 230 | 1Nac 50 | 0.92 | 0.62 | 0.3 | IP40 |
| LO550 | G-.AB.L.xx.A | 160 | 560 | 13.5 | 47 | 230 | 1Nac 50 | 0.92 | 0.62 | 0.3 | IP40 |
| LO550 | G-.AB.S.xx.A.M | 160 | 560 | 13.5 | 47 | 230 | 1Nac 50 | 0.92 | 0.62 | 0.3 | IP40 |
| LO550 | G-.AB.L.xx.A.M | 160 | 560 | 13.5 | 47 | 230 | 1Nac 50 | 0.92 | 0.62 | 0.3 | IP40 |
