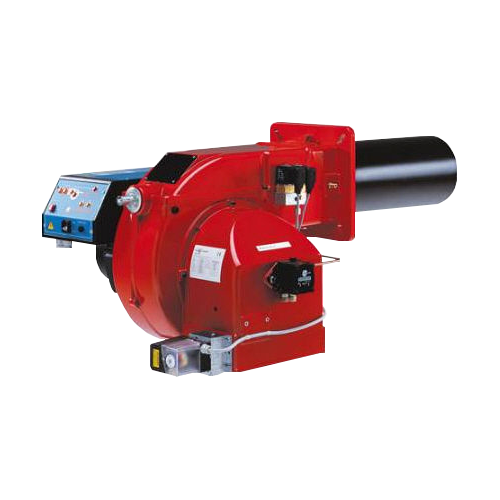

Burners C I B Unigas TECNOPRESS PG30-PG81

Burners C I B Unigas TECNOPRESS PG30-PG81

Burners C I B Unigas TECNOPRESS PG30-PG81 is a light oil burner designed for industrial applications that require high heat output. The burner is made from high-quality materials for durability and long-lasting performance. It comes with an electronic control system for easy, safe, and precise operation.

Category Tags , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Light Oil Burners C I B Unigas TECNOPRESS PG30-PG81

Burner type Model Power [min, kW] Power [max, kW] Oil flow [min, kg/h] Oil flow [max, kg/h] Voltage [V] Phases / frequency [Hz] Total power [kW] Fan motor [kW] Power supply [aux, kW] Protection class IP
PG30 G-.AB.S.xx.A 105 383 8.9 32 230 1Nac 50 0.87 0.37 0.5 IP40
PG30 G-.AB.L.xx.A 105 383 8.9 32 230 1Nac 50 0.87 0.37 0.5 IP40
PG30 G-.PR.S.xx.A 105 383 8.9 32 230 1Nac 50 0.87 0.37 0.5 IP40
PG30 G-.PR.L.xx.A 105 383 8.9 32 230 1Nac 50 0.87 0.37 0.5 IP40
PG30 G-.MD.S.xx.A 105 383 8.9 32 230 1Nac 50 0.87 0.37 0.5 IP40
PG30 G-.MD.L.xx.A 105 383 8.9 32 230 1Nac 50 0.87 0.37 0.5 IP40
PG30 G-.PR.S.xx.A.EA 105 383 8.9 32 230 1Nac 50 0.87 0.37 0.5 IP40
PG30 G-.PR.L.xx.A.EA 105 383 8.9 32 230 1Nac 50 0.87 0.37 0.5 IP40
PG30 G-.MD.S.xx.A.EA 105 383 8.9 32 230 1Nac 50 0.87 0.37 0.5 IP40
PG30 G-.MD.L.xx.A.EA 105 383 8.9 32 230 1Nac 50 0.87 0.37 0.5 IP40
PG60 G-.AB.S.xx.A 145 698 12.2 59 400 3Nac 50 1.6 1.1 0.5 IP40
PG60 G-.AB.L.xx.A 145 698 12.2 59 400 3Nac 50 1.6 1.1 0.5 IP40
PG60 G-.PR.S.xx.A 151 791 12.7 67 400 3Nac 50 1.6 1.1 0.5 IP40
PG60 G-.PR.L.xx.A 151 791 12.7 67 400 3Nac 50 1.6 1.1 0.5 IP40
PG60 G-.MD.S.xx.A 151 791 12.7 67 400 3Nac 50 1.6 1.1 0.5 IP40
PG60 G-.MD.L.xx.A 151 791 12.7 67 400 3Nac 50 1.6 1.1 0.5 IP40
PG60 G-.PR.S.xx.A.EA 151 791 12.7 67 400 3Nac 50 1.6 1.1 0.5 IP40
PG60 G-.PR.L.xx.A.EA 151 791 12.7 67 400 3Nac 50 1.6 1.1 0.5 IP40
PG60 G-.MD.S.xx.A.EA 151 791 12.7 67 400 3Nac 50 1.6 1.1 0.5 IP40
PG60 G-.MD.L.xx.A.EA 151 791 12.7 67 400 3Nac 50 1.6 1.1 0.5 IP40
PG60 G-.MD.S.xx.A.ES 151 791 12.7 67 400 3Nac 50 1.6 1.1 0.5 IP40
PG60 G-.MD.L.xx.A.ES 151 791 12.7 67 400 3Nac 50 1.6 1.1 0.5 IP40
PG70 G-.AB.S.xx.A 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG70 G-.AB.L.xx.A 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG70 G-.PR.S.xx.A 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG70 G-.PR.L.xx.A 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG70 G-.MD.S.xx.A 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG70 G-.MD.L.xx.A 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG70 G-.PR.S.xx.A.EA 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG70 G-.PR.L.xx.A.EA 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG70 G-.MD.S.xx.A.EA 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG70 G-.MD.L.xx.A.EA 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG70 G-.MD.S.xx.A.ES 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG70 G-.MD.L.xx.A.ES 291 1047 25 88 400 3Nac 50 2.7 2.2 0.5 IP40
PG81 G-.AB.S.xx.A 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40
PG81 G-.AB.L.xx.A 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40
PG81 G-.PR.S.xx.A 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40
PG81 G-.PR.L.xx.A 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40
PG81 G-.MD.S.xx.A 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40
PG81 G-.MD.L.xx.A 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40
PG81 G-.PR.S.xx.A.EA 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40
PG81 G-.PR.L.xx.A.EA 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40
PG81 G-.MD.S.xx.A.EA 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40
PG81 G-.MD.L.xx.A.EA 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40
PG81 G-.MD.S.xx.A.ES 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40
PG81 G-.MD.L.xx.A.ES 264 1900 22 160 400 3Nac 50 3.5 3 0.5 IP40

TECNOPRESS PG30 PG81 Curve

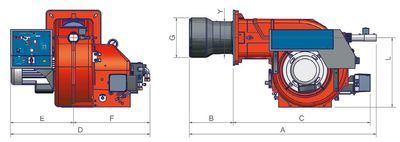

TECNOPRESS PG30 PG81 Dimension
