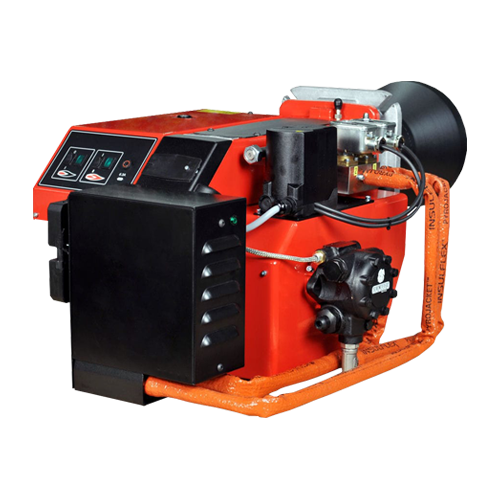

Oil burners Bio oils BENTONE B45-2 MF is a burner designed for use with bio oils, specifically B45-2 MF by BENTONE. It is capable of efficiently burning renewable bio oils (RME). Bio oils are often produced from low-cost materials and are popular for their environmentally friendly nature in reducing reliance on fossil fuels. The use of Bio oils with BENTONE B45-2 MF ensures high combustion efficiency, resulting in a high yield with easy maintenance.
The Multi Fuel Burner range consists of B40 and B45 which are designed for oils with higher viscosity. For example, pure rapeseed oil and other types of bio oils and fossil oils.
The burner is designed to manage oil with a viscosity of 120 cSt at 20 °C.
– Suitable oils with higher viscosity of both fossil and biological origin
– Equipped with preheater and components suitable for corrosive oils
– Energy saving and compatible with environmental requirements
– Designed for easy regulation and maintenance
– Designed and approved by the European standard EN 267 together with rapeseed oil according to DIL 51605
– Suitable for Hight Resistance Boiler
– Designed for 2-stage operation
– Plug-in contact facilitates the installation
| Type | B45-2 MF | |
| Capacity | kg/h | 9.0-55.0 |
| kW | 90-550 | |
| Motor | V/Hz/W | 230/50-60Hz/550 |
| Cntrol box | Siemens | |
| Fuel pump | Suntec | |
| Oil preheater | 3N- | |
| Gross weight | kg c. | 67 |
| Volume | m³ c. | 0.25 |
