Oil burners Bio oils BENTONE BF1 RME
Oil burners Bio oils BENTONE BF1 RME is a burner designed for use with bio oils, specifically BF1 RME by BENTONE. It is capable of efficiently burning renewable bio oils (RME). Bio oils are often produced from low-cost materials and are popular for their environmentally friendly nature in reducing reliance on fossil fuels. The use of Bio oils with BENTONE BF1 RME ensures high combustion efficiency, resulting in a high yield with easy maintenance.
Oil burners Bio oils BENTONE BF1 RME

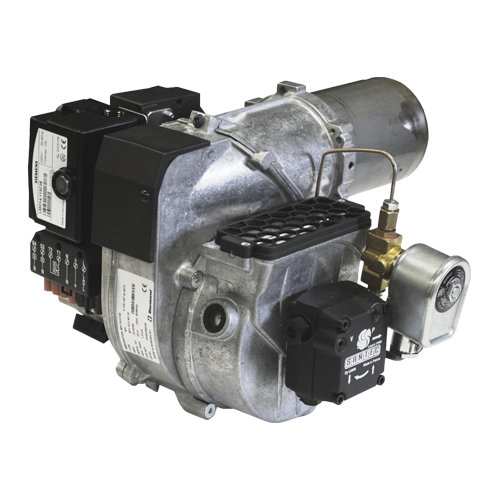

Bentone BF1 RME (Rapeseed methyl ester) is a newly developed modern burner that meets the current and future environmental and economic requirements for standard burners. Can be used with fuel according to European standard EN 14214 FAME .The burners can be used for traditional heating of residential buildings and real estate, both for industrial applications and mobile sites.
It’s a 1 – stage RME burner that is built with a nozzle for ON/OFF- regulation.
This burner can handle environmental regulations and challenging oil viscosity. At the same time it has a very small or non-impact on the global warming.
The burner comes complete and is internally connected. It comes with oil lines that are resistant to RME, oil filter, flange / gaskets and maintenance instructions.
Available with half cover.
Oil Burner
– Energy saving and compatible with environmental requirements
– Designed for easy regulation and maintenance
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 276
– Suitable for Hight Resistance/ Condensing Boiler
– Industry standard components easily available
– Designed for on/off
– Plug-in contact facilitates the installation
– High flexibility with reference the different options
– Safety shut-off valve with internal parts of ruby andd stainless steel

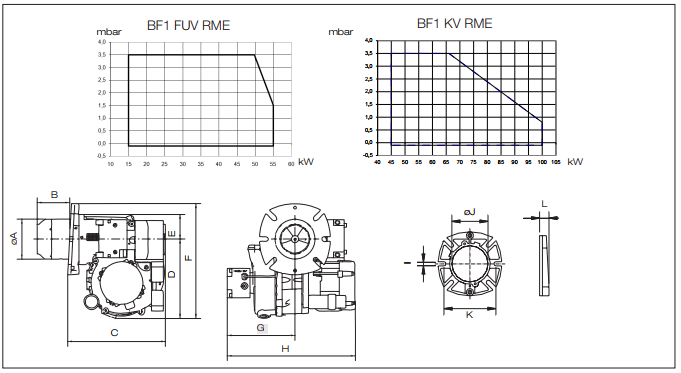

| Type | BF1 RME | ||
| Model | FUV | KV | |
| 63-16 | 76-26 | ||
| Capacity | kg/h | 1.3-4.6 | 3.8-8.0 |
| kW | 15.0-55.0 | 45.0-95.0 | |
| Motor | V/Hz/W | 230/50/110 | |
| Cntrol box | Siemens | ||
| Oil preheater | . | . | |
| Fuel pump | Suntec, Danfoss | ||
| Adjustable burner head | . | ||
| Full cover | . | ||
| Half cover | . | ||
| Ducted air inlet | . | ||
| Silencer | . | ||
| Automatic air damper | . | ||
| Air grid | . | ||
| Gross weight | kg c. | 10 | |
| Volume | m³ c. | 0.045 | |
