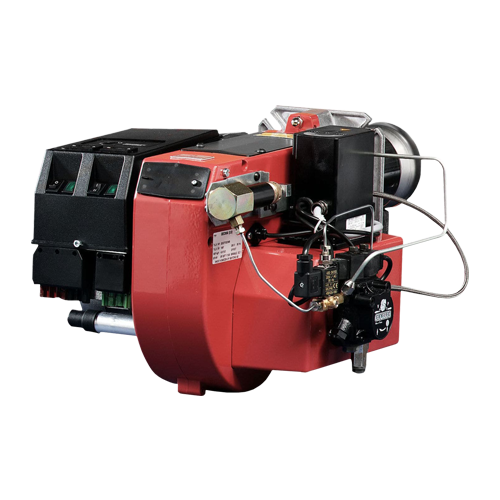

Oil burners One stage BENTONE B30
Oil burners One stage BENTONE B30 is a burner with a two-stage combustion system, allowing for adjustable flame levels according to job requirements. The two-stage system enhances energy efficiency and reduces the accumulation of soot during combustion. The BENTONE B30 is known for its durability and suitability for various environments.
Oil burners One stage BENTONE B30
Hydraulic adjustment of the nozzle assembly is optional on the 2-stage models. Quiet in operation. A soft pulsation free start. Wide adjustment range and high efficiency ensure lowest possible energy consumption.
Oil Burner
– Energy saving and compatible with environmental requirements
– Quiet in operation and designed for easy maintenance
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 276
– Suitable for Hight Resistance Boiler
– Designed for on/off and 2-stage operation
– Industry standard components easily available
– Available with hydraulic air adjustment
– Plug-in contact facilitates the installation
| Type | B30A | B302A | B30A2 | |
| Capacity | kg/h | 6.0-17.0 | 6.0-17.0 | 4.5-15.0 |
| kW | 71-202 | 71-202 | 53-178 | |
| Motor | V/Hz/W | 230/50/180 | ||
| Cntrol box | Siemens | |||
| Fuel pump | Danfoss, Suntec | |||
| 2-stage | . | . | ||
| Gross weight | kg c. | 18 | 18 | 19 |
| Volume | m³ c. | 0.09 | ||
