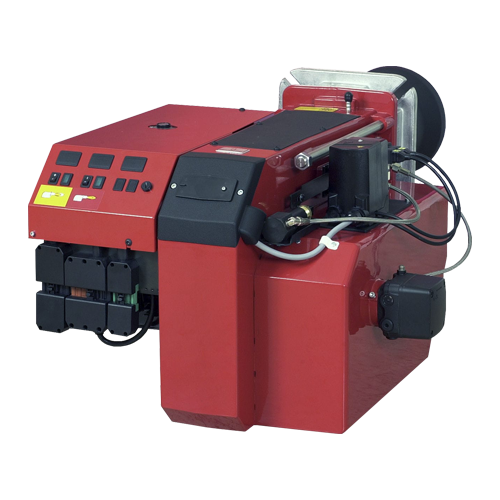

Oil burners Three stage BENTONE B65
Oil burners Three stage BENTONE B65 is a burner designed with a three-stage combustion system, allowing for flexible adjustment of flame levels according to job requirements. The three-stage system helps to reduce energy consumption efficiently and ensures a balanced and efficient combustion process. The BENTONE B65 is known for its durability and suitability for various environments.
เครื่องพ่นไฟ Oil burners Three stage BENTONE B65
Available in versions up to 99,0 kg/h in 2-stage and 3-stage versions.
Hydraulic adjustment of the nozzle assembly is optional. Quiet in operation. A soft pulsation free start. Wide adjustment range, high efficiency with constant combustion values. Energy saving.
Oil Burner
– Energy saving and compatible with environmental requirements
– Designed for easy regulation and maintenance
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 276
– Suitable for Hight Resistance Boiler
– 2 or 3-stage
– Industry standard components easily available
– Available with hydraulic air adjustment or airdamper motor
– Plug-in contact facilitates the installation

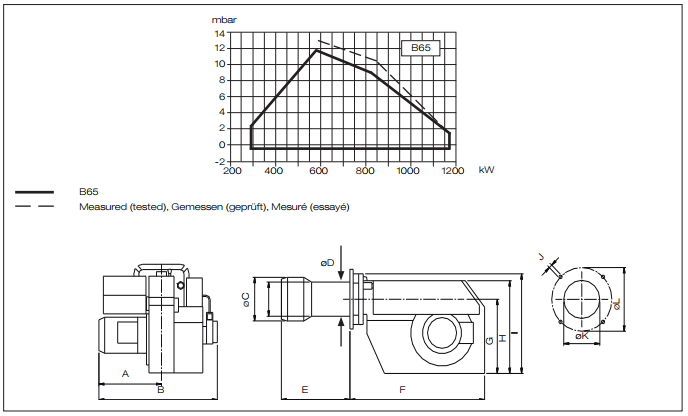

| Type | B65-2 | B65-2H | B65-2R | B65-3R | |
| Capacity | kg/h | 24-99 | 24-99 | 24-99 | 24-99 |
| kW | 166-795 | 166-795 | 166-795 | 166-760 | |
| Motor | V/Hz/W | 230-400/50/1500 | |||
| Cntrol box | Siemens | ||||
| Fuel pump | Danfoss | ||||
| Thermostat RT16 | . | ||||
| Gross weight | kg c. | 50 | |||
| Volume | m³ c. | 0.3 | |||
