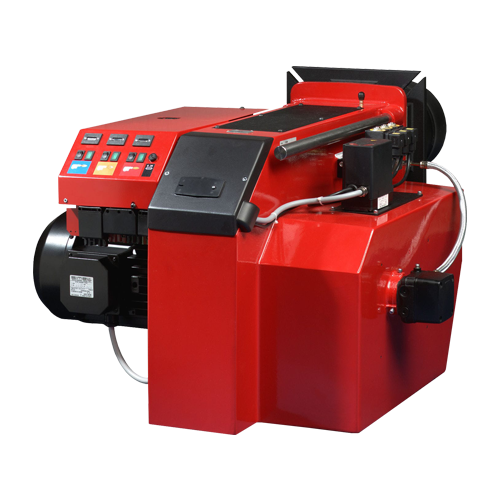

Oil burners Three stage BENTONE B80
Oil burners Three stage BENTONE B80 is a burner designed with a three-stage combustion system, allowing for flexible adjustment of flame levels according to job requirements. The three-stage system helps to reduce energy consumption efficiently and ensures a balanced and efficient combustion process. The BENTONE B80 is known for its durability and suitability for various environments.
Oil burners Three stage BENTONE B80
Oil Burner
– Energy saving and compatible with environmental requirements
– Designed for easy regulation and maintenance
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 276
– Suitable for Hight Resistance Boiler
– Industry standard components easily available
– 2-Stage or 3-stage with 3 nozzles
– Plug-in contact facilitates the installation

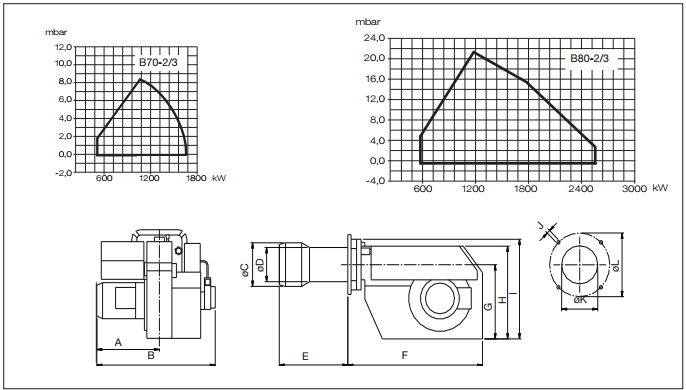

| Type | B70-2/3 | B80-2/3 | |
| Capacity | kg/h | 41.0-139.0 | 50.0-214.0 |
| kW | 486-1649 | 593-2538 | |
| Motor | V/z/W | 400/50-60/3.0 | 400/50-60/5.0 |
| Cntrol box | Siemens | ||
| Fuel pump | Danfoss | ||
| Thermostat RT16 | . | ||
| Hydraulic adjustment of nozzle assembly | . | ||
| Air damper motor | . | ||
| Gross weight | kg c. | 127 | 150 |
| Volume | m³ c. | 0.9 | 0.9 |
