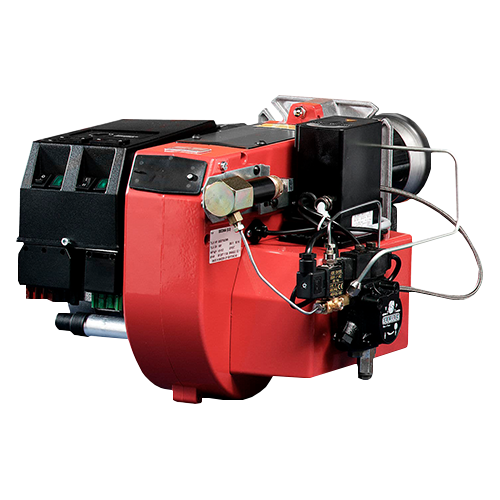

Oil burners Two stage BENTONE B30-2 is a burner with a two-stage combustion system, allowing for adjustable flame levels according to job requirements. The two-stage system enhances energy efficiency and reduces the accumulation of soot during combustion. The BENTONE B30-2 is known for its durability and suitability for various environments.
Available in versions up to 17,0 kg/h in 1-stage and 2-stage versions.
Hydraulic adjustment of the nozzle assembly is optional on the 2-stage models. Quiet in operation. A soft pulsation free start. Wide adjustment range and high efficiency ensure lowest possible energy consumption.
– Energy saving and compatible with environmental requirements
– Designed for easy regulation and maintenance
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 276
– Suitable for Hight Resistance Boiler
– Designed for on/off and 2-stage operation
– Industry standard components easily available
– Available with hydraulic air adjustment
– Plug-in contact facilitates the installation

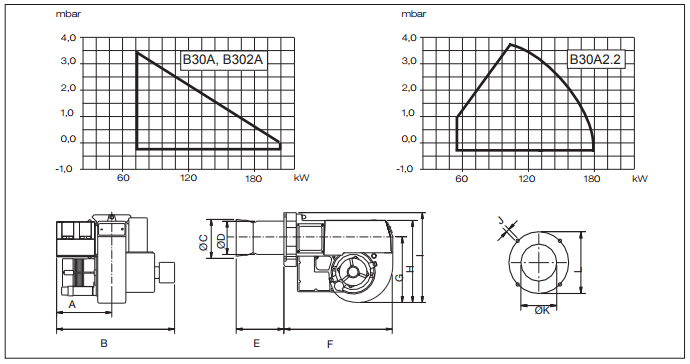

| Type | B30A | B302A | B30A2 | |
| Capacity | kg/h | 6.0-17.0 | 6.0-17.0 | 4.5-15.0 |
| kW | 71-202 | 71-202 | 53-178 | |
| Motor | V/Hz/W | 230/50/180 | ||
| Cntrol box | Siemens | |||
| Fuel pump | Danfoss,Suntec | |||
| 2-stage | . | . | ||
| Gross weight | kg c. | 18 | 18 | 19 |
| Volume | m³ c. | 0.09 | ||
