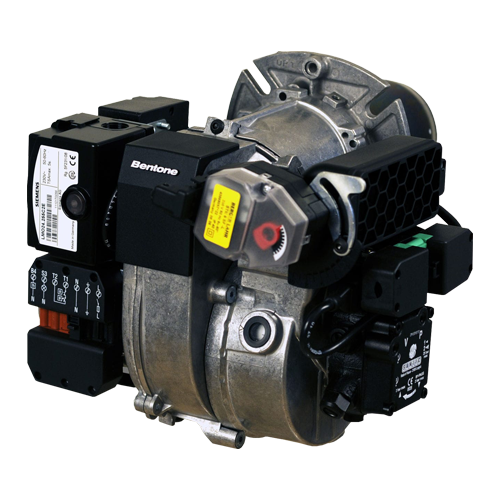

Oil burners Two stage BENTONE BF1-2 is a burner with a two-stage combustion system, allowing for adjustable flame levels according to job requirements. The two-stage system enhances energy efficiency and reduces the accumulation of soot during combustion. The BENTONE BF1-2 is known for its durability and suitability for various environments.
Available in many versions up to 8,4 kg/h. With or without preheating.
Ducted or conventional air inlet. Suitable for high resistance/condensing boilers. Designed for 2- stage operation. High flexibility with reference to different options.
Also available with half-cover (HC)
– Energy saving and compatible with environmental requirements
– Designed for easy regulation and maintenance
– Reliable and trouble free
– Designed and approved in accordance with the European standard EN 276
– Suitable for Hight Resistance/ Condensing Boiler
– Industry standard components easily available
– 2-stage operation
– Plug-in contact facilitates the installation
– High flexibility with reference to different options
| Type | B40A | ||
| Model | K/KV | ||
| 76-26 | |||
| Capacity | kg/h | 3.8-8.4 | |
| kW | 45.0-100.0 | ||
| Motor | V/Hz/W | 230/50/110 | |
| Cntrol box | Siemens | ||
| Oil preheater | . | . | |
| Fuel pump | . | ||
| Adjustable burner head | . | ||
| Half cover | . | ||
| Ducted air inlet | . | ||
| Automatic air damper | . | ||
| Air grid | . | ||
| Gross weight | kg c. | 12 | |
| Volume | m³ c. | 0.06 | |
