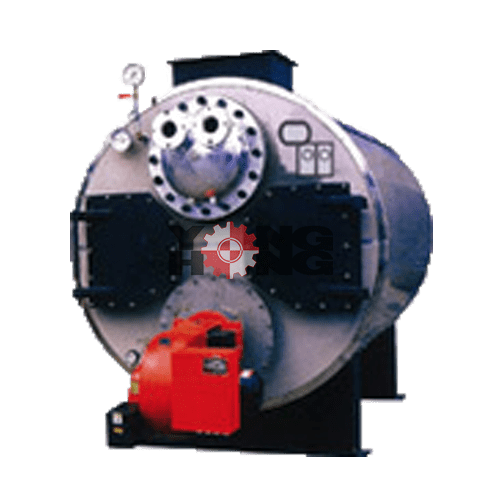

Boiler OLYMPIA OLB Series
Boiler OLYMPIA OLB Series
OLB-500RD,OLB-700RD,OLB-000RD,OLB-1500RD,OLB-2000RD,OLB-3000RD,OLB-4000RD,OLB-500GD,OLB-700GD,OLB-1000GD,OLB-1500GD,OLB-2000GD,OLB-3000GD,OLB-4000GD
Energy saving Hot water boiler Heat from the fire of Olympia, which is designed to use minimal energy to create a flame and heat by using various devices. Effectively, as the oil spewing into the mist. From fuel pump And the appropriate nozzle or turn – off gas valves in the proper amount.
Safe to use, boil water and spray Olympia was designed based on the concept of safety in use. The installation of safety equipment such as electric box commands the stage, a light sensor to detect the brightness of the flame, the switch detects the gas pressure, the switch detects the pressure. weather and other users to make sure. Safe to Use What are the main considerations Hot water boiler Burner and Olympia
Hot water boiler Olympia intuitive control panel to two points, both on the hot water boiler. So the user can adjust the monitor unit. And panel building For maximum convenience, near the point of use.
Hot water boiler Olympia range is available in both types of fuel. Natural gas, associated gas, LPG and diesel.
OLYMPIA OLB Series Boiler Specifications
OLB-500RD,OLB-700RD,OLB-000RD,OLB-1500RD,OLB-2000RD,OLB-3000RD,OLB-4000RD,OLB-500GD,OLB-700GD,OLB-1000GD,OLB-1500GD,OLB-2000GD,OLB-3000GD,OLB-4000GD
| Items / Model | Oil Boiler | Unit | OLYMIA OLB-500RD | OLYMIA OLB-700RD | OLYMIA OLB-000RD | OLYMIA OLB-1500RD | OLYMIA OLB-2000RD | OLYMIA OLB-3000RD | OLYMIA OLB-4000RD |
| Gas Boiler | OLYMIA OLB-500GD | OLYMIA OLB-700GD | OLYMIA OLB-1000GD | OLYMIA OLB-1500GD | OLYMIA OLB-2000GD | OLYMIA OLB-3000GD | OLYMIA OLB-4000GD | ||
| Capacity | (Kcal/h) | 50,000 | 70,000 | 100,000 | 150,000 | 200,000 | 300,000 | 400,000 | |
| Warm & Hot water output | (Kcal/h) | 50,000 | 70,000 | 100,000 | 150,000 | 200,000 | 300,000 | 400,000 | |
| Efficiency | % | 91 | |||||||
| Voltage | V/Hz | 220V/50Hz (220/60Hz) | 3P 220V,380/50Hz (60Hz) | ||||||
| Peak pressure | kgf/cm2 | 1.83 | 3.11 | 3.12 | 4.74 | 6.15 | 10.8 | 13.7 | |
| Heating space | m2 | 6.6 | 9.3 | 13.3 | 19.9 | 26.2 | 40.9 | 54.5 | |
| Fuel Consumption | Oil | l/h | 5.5 | 7.7 | 10.9 | 16.4 | 21.9 | 32.8 | 43.8 |
| Gas | Nm2/h | 77.5 | 101.3 | 174 | 198.1 | 268.5 | 611 | 719 | |
| Water volume | L | 77.5 | 101.3 | 174 | 198.1 | 268.5 | 611 | 719 | |
| Warming space | m2 | 333 (580) | 466 (812) | 667 (1160) | 1000 (1740) | 1330 (2320) | 2000 (3480) | 2667 (4640) | |
| Dia of warm wate pipe | A | 50 | 65 | 80 | |||||
| Dia of hot wate pipe | A | 20 | 25 | ||||||
| Dia of chimney | Ø | 150 | 200 | 25 | |||||
| Weight | kg | 180 | 228 | 228 | 332 | 425 | 1201 | 1221 | |
| Dimension (WxLxH) | mm | 580 x 840 x 1120 | 580 x 840 x 1420 | 700 x 1060 x 1420 | 710 x 1140 x 1740 | 801 x 817 x 1743 | 1270 x 1810 x 1870 | 1270 x 1810 x 2020 | |
| Items / Model | Unit | Specification (Gas Boiler) | ||
| OLYMPIA OLB-5000GD | OLYMPIA OLB-6000GD | |||
| Capacity | (Kcal/h) | 500,000 | 600,000 | |
| Warm & Hot water output | (Kcal/h) | 500,000 | 600,000 | |
| Efficiency | % | 92 | 92 | |
| Voltage | V/Hz | 3p 220V, 380V/50Hz (60Hz) | ||
| Peak pressure | kgf/cm2 | 5-8 | ||
| Heating space | m2 | 16 | 16 | |
| Fuel Consumption | L.P.G | Nm2/h | 23.74 | 28.49 |
| L.N.G | 52.91 | 63.49 | ||
| 4A4B | 158.73 | 190.48 | ||
| Gas Pressure | L.P.G | mmH20 | 280 | |
| L.N.G | 200 | |||
| Water volume | L | 1950 | 2358 | |
| Warming space | m2 | 3306 (5800) | 3967 (6960) | |
| Dia of warm wate pipe | Ømm | 80 | ||
| Dia of hot wate pipe | Ømm | 65 | ||
| Dia of chimney | mm | 400×500 | ||
| Burner | – | LTG-80T | ||
| Weight | kg | 3200 | 3500 | |
| Dimension (WxLxH) | mm | 1579x2649x1956 | 1579x2951x1956 | |
| Items / Model | Unit | Specification (Oil Boiler) | |
| OLYMPIA OLB-5000VD | OLYMPIA OLB-6000VD | ||
| Capacity | (Kcal/h) | 500,000 | 600,000 |
| Warm & Hot water output | (Kcal/h) | 500,000 | 600,000 |
| Efficiency | % | 92 | 92 |
| Voltage | V/Hz | 3p 220V, 380V/50Hz (60Hz) | |
| Peak pressure | kgf/cm2 | 8-May | |
| Heating space | m2 | 16 | 19 |
| Fuel Consumption | l/h | 65 | 78 |
| Water volume | L | 1950 | 2358 |
| Warming space | m2 | 3306 (5800) | 3967 (6960) |
| Dia of warm wate pipe | Ømm | 80 | |
| Dia of hot wate pipe | Ømm | 65 | |
| Dia of chimney | mm | 400×500 | |
| Burner | – | LT-80T | |
| Weight | kg | 3200 | 3500 |
| Dimension (WxLxH) | mm | 1579x2560x1956 | 1579x2862x1956 |
Yonghong(Thailand)Co.,Ltd.We are Import OLYMPIA BURNER and distribution Industrial Products as Burner , Vacuum pump,water pump ,Chemical Pump ,Air Compressor,Pressure tank , motor ,Hoist ,Crane and Industrial machinery equipment.We offer after-sales service.Trustworthy for over 60 years.
