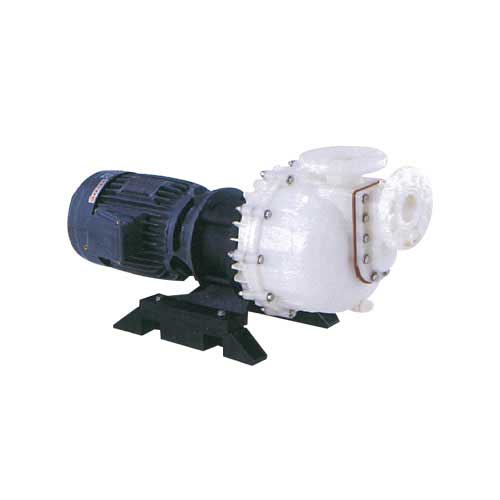

Chemical Pump CHEMPRO Model PD-F is a chemical pump. Self-priming pump, suitable for pumping chemicals with acidic and alkaline Pump head is made from polyvinylidene. Difluoride (PVDF) is highly resistant to corrosion.
CHEMPRO chemical pump model PD-F is a Self-Priming Pump is a centrifugal pump without water. Able to work efficiently Suitable for the distribution of a wide range of liquids such as acids, alkalis, water treatment chemicals, plating chemicals, flammable chemicals There are many variations to choose from as appropriate.
| Hz | Type | S.G | Motor | Pump | Weight | Height | Pump Dia | |||||
| PVDF | Power | Phase | volt | Bore size | Max. Head | Max. Flow | ||||||
| PD-F | KW(HP) | PH | V | Inter inch(mm) | Outlet inch(mm) | m | m³/min | kg | mm | mm | ||
| 50 | CHEMPRO PD-132F | 1 | 0.75(1) | 3 | 220 ̴ 480 | 1 1/2″(40) | 1 1/2″(40) | 12 | 0.2 | 30 | 374 | 625 |
| CHEMPRO PD-232F | 1 | 1.5(2) | 4 | 221 ̴ 480 | 1 1/2″(40) | 1 1/2″(40) | 18 | 0.36 | 37 | 374 | 704 | |
| CHEMPRO PD-332F | 1 | 2.2(3) | 5 | 222 ̴ 480 | 2″(50) | 2″(50) | 21 | 0.5 | 40 | 374 | 704 | |
| CHEMPRO PD-532F | 1 | 3.7(5) | 6 | 223 ̴ 480 | 2″(50) | 2″(50) | 26 | 0.48 | 69 | 420 | 780 | |
| CHEMPRO PD-532LF | 1 | 3.7(5) | 7 | 224 ̴ 480 | 3″(80) | 3″(80) | 24 | 0.68 | 70 | 425 | 830 | |
| 60 | CHEMPRO PD-132F | 1 | 0.75(1) | 8 | 225 ̴ 480 | 1 1/2″(40) | 1 1/2″(40) | 10 | 0.19 | 30 | 374 | 625 |
| CHEMPRO PD-232F | 1 | 1.5(2) | 9 | 226 ̴ 480 | 1 1/2″(40) | 1 1/2″(40) | 20 | 0.38 | 30 | 374 | 704 | |
| CHEMPRO PD-332F | 1 | 2.2(3) | 10 | 227 ̴ 480 | 2″(50) | 2″(50) | 24 | 0.48 | 37 | 374 | 704 | |
| CHEMPRO PD-532F | 1 | 3.7(5) | 11 | 228 ̴ 480 | 2″(50) | 2″(50) | 28 | 0.6 | 40 | 420 | 780 | |
| CHEMPRO PD-532LF | 1 | 3.7(5) | 12 | 229 ̴ 480 | 3″(80) | 3″(80) | 28 | 0.68 | 69 | 425 | 830 | |
