Chemical Pump LITTLE GIANT TE-6-MD-CK Series
]Little Giant TE-6-MD-CK Series chemical pump is suitable for the handling of highly corrosive liquids, alkalis, solvents, saline, plating solutions, sterile solutions and corrosive chemicals. Other high
Facebook
Twitter
Email
Print

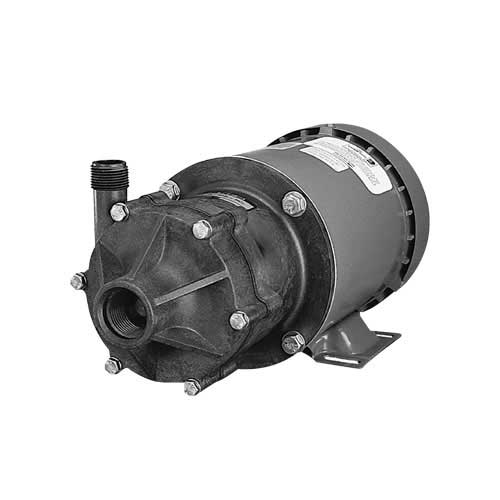

Chemical Pump LITTLE GIANT TE-6-MD-CK Series
- PSC motor (cooling fan) 1/3 hp
- The pump is made of PVDF reinforced with carbon
- Specific gravity 1.1
- Fluoroelastomer O-rings (FKM)
- Ceramic retaining ring and shaft
- C-cCSAus listed
| Model | Item No. | Volts | Hertz | Amps | Watts | Cord | List/Cert |
| TE-6-MD-CK | 586600 | 230 | 50/60 | 5.8 | 640 | Not included | UR/C-CSA |
| TE-6-MD-CK | 586610 | 230 | 50/60 | 5.8 | 640 | Not included | UR/C-CSA |
| Model | Item No. | RPM | Capacity | Liquid Temperature | Discharge | Intake | Impeller | Electrical |
| TE-6-MD-CK | 586600 | 2850/3450 | 125 LPM | 93.3°C | 3/4″ MNPT (19 mm) | 1″ FNPT (25.4 mm) | Carbon-filled Kynar® (PVDF) w/ Chemloy bushing (586600); Mica-filled Teflon® bushing (586610) | 230V, 50/60Hz |
| TE-6-MD-CK | 586610 |
