Koshin Fill pump FD / FA / FR Series is an automatic electric oil pump. To use to pump oil from a 200 liter tank There are both direct current (DC 12v and DC 24v) and alternating current (AC 220v) suitable for pumping low viscosity oil or other liquid contained in a 200 liter tank.
FD-12,FD-24,FA-100,FR-200

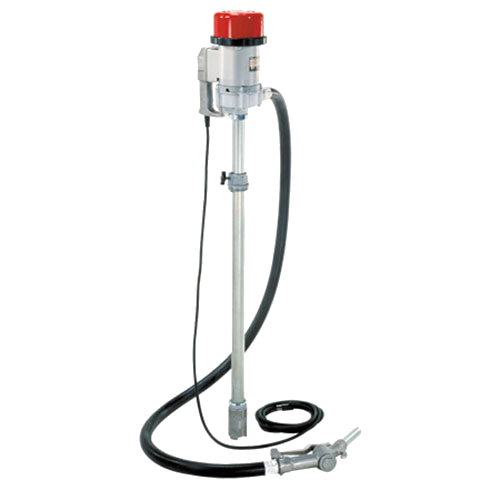

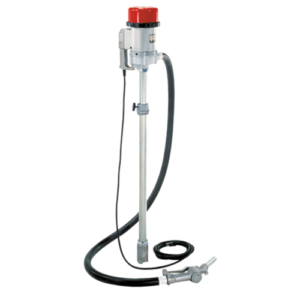

Powerful “FULL PUMP” Only 2 Minutes to Empty 200L Drum (FR-200)
หมายเหตุ – เนื่องจากปั๊มสูบน้ำมัน Koshin FD/FA/FR Series เป็นปั๊มไฟฟ้า ดังนั้นจึงไม่ควรใช้กับน้ำมันที่มีจุดระเบิดต่ำ เช่น เบนซิน เพราะอาจทำให้เกิดการระเบิดได้

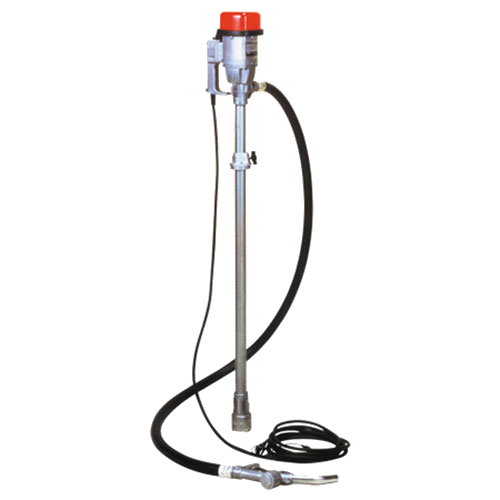

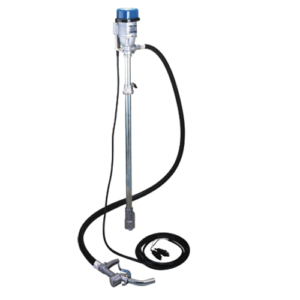

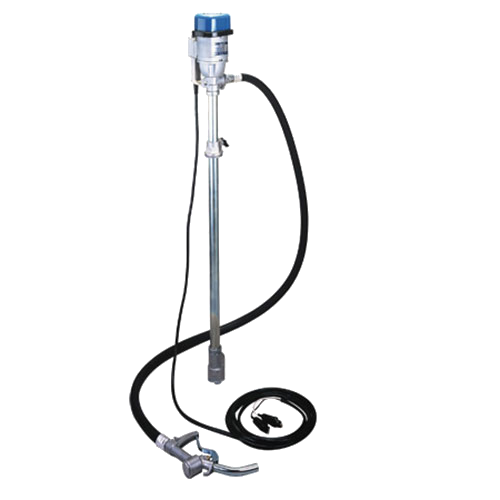

Koshin “fill pump“ is an electric fueling pump. Designed for pumping oil for 200-liter tall tank, whether it is steel tank or PVC tank. The pump works with direct current. It is a DC 12v, DC 24v DC oil pump in the FD Series and uses AC 220v-240v AC in FA100 and FR200 models. There is a on-off switch for controlling the motor at the pump. And there is a oil distribution valve on the oil injector for ease of use. Suitable for transferring oil or liquid from 200 liters of all kinds of tanks with low concentration, such as automotive engine oil, kerosene, diesel oil, etc.
| Model | FD-12 | FD-24 | FA-100 | FR-200 | |||
| Pump | Connection Dia | 20 mm (¾”) | 32 mm (1¼”) | ||||
| Connection Thread | Inner Pipe Thread | ||||||
| Total Head | 6 m (19 ft) | 7 m (23 ft) | 11 m (36 ft) | ||||
| Delivery Volume | 40 L/min (10 USG/min)(Kerosene, Light Oil) | 50 L/min (13 USG/min)(Kerosene, Light Oil) | 110 L/min (29 USG/min)(Kerosene, Light Oil) | ||||
| Motor | Type | Enclosed Fan-Cooled Commutator | Fan-Cooled Commutator | ||||
| Voltage | DC 12 V | DC 24 V | AC 110 V / 130 V | AC 220 V – 240 V | AC 110 V | AC 220 V – 240 V | |
| Rated Current | 14 A | 7:00 AM | 2:00 AM | 1:00 AM | 5:00 AM | 2.5 A | |
| Output | 80 W | 90 W | 100 W | 200 W | |||
| Revolution | 7000 rpm | 7300 rpm | 7500 rpm | 6200 rpm | |||
| Rating | Continuous | ||||||
| Power Cord | Oil-Proof Cord 5 m (16.4 ft) | ||||||
| Delivery Hose | 1 Oil-Proof Rubber Hose (20 mm (¾”) × 2 m) | ||||||
| Gross Weight | 20 kg (44.1 lbs) | 30 kg (66.1 lbs) | |||||
| Dimensions LxWxH (mm) | 1228 × 291 × 172 | 1290 × 490 × 205 | |||||
| Packing Unit | 2 | ||||||
