Fill Pump KOSHIN FP Series
Fill Pump KOSHIN FP Series electric oil pump. Power AC 220V AC 1 Phase and DC 12V DC to pump oil for tanks 200 liter for kerosene (Kerosene) and diesel fuel (Diesel) can suck the oil tank 200 liters within 10 minutes intuitive end suction. the filter prevents debris
Facebook
Twitter
Email
Print

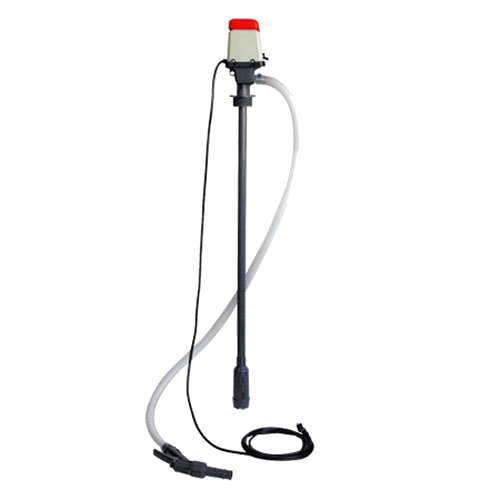

Fill Pump KOSHIN
FP Series FP-25,FP-2512
Suitable for Transferring Kerosene & Diesel
Fill Pump KOSHIN FP Series FP-25, FP-2512 Suitable for Transferring Kerosene & Diesel Available in both AC 220V Phase 1 for the FP-25 and DC 12V for the FP-2512. Can be used with a battery with a typical DC-12V voltage. Note: Because it is an electric pump. Therefore should not be used with flammable substances or oils such as gasoline.
SPECIFICATIONS DATA KOSHIN FP Series
| Model | Connection Dia | Total Head | Delivery Volume | Voltage | Frequency | Power Code | Delivery Hose | Gross Weight | Dimensions LxWxH (mm) | Packing Unit |
| FP-25 | 25 mm (1″) | 3.5 m (11 ft) | 20 L/min (5.3 USG/min) | AC 100 V | 50 Hz / 60 Hz | 4 m (13 ft) | 1.5 m (4.9 ft) | 3.8 kg (8.3 lbs) | 1190 × 235 × 130 | 1 |
| AC 220 V | ||||||||||
| FP-2512 | 2.8 m (9 ft) | 18 L/min (4.7 USG/min) | DC 12 V | – | 3.1 kg (6.8 lbs) |
