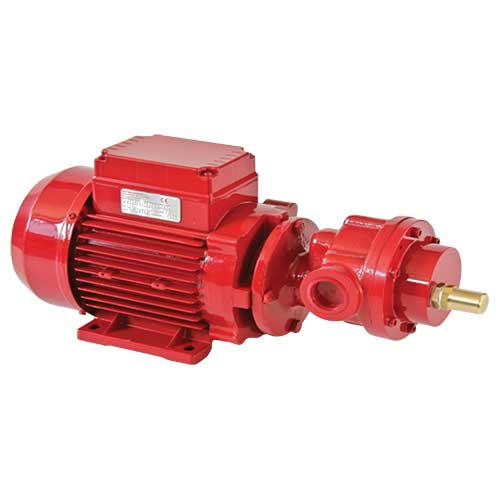

Gear Pump CUCCHI FMG Series
Cucchi gear pump, FMG type, built-in motor Imported from Italy Able to suck up the liquid by itself without having to draw water (In the specified suction distance) suitable for dispensing Pumping less viscous liquid To medium without sediment Withstands temperatures up to 90 degrees Celsius. Maximum pressure is 10 bars. Suitable for installation in tight spaces, easy to install. There is a built-in liquid circulation system (By pass Valves) to prevent pressure holding. There is a power system 220v-380v.
[vc_row][vc_column][vc_column_text]
Gear Pump CUCCHI FMG Series
CUCCHI FMG 005,FMG 010,FMG 015,FMG 040,FMG 050
[/vc_column_text][vc_column_text]
- Pumping – supplying fuel such as fuel oil for flamethrowers
- Pumping-dispensing viscous substances in the new metric system
- Pump-distribute oil in the laundry industry
- Pumping-dispensing viscous fluids such as dyes for dyeing-related industries Or automotive paint
- Metering or circulating viscous liquid for the food industry
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
CUCCHI FMG Series SPECIFICATIONS
CUCCHI FMG 005,FMG 010,FMG 015,FMG 040,FMG 050
| MODEL | SPECIFICATIONS | |||
| Capacity (liter/min) | power (HP) | Outlet (inch) | Phase | |
| FMG 005 | 5 | 0.33 | 1/2 | 1 (220 V.) |
| FMG 005 | 5 | 0.33 | 1/2 | 3 (380 V.) |
| FMG 010 | 10 | 0.5 | 3/4 | 1 |
| FMG 010 | 10 | 0.5 | 3/4 | 3 |
| FMG 015 | 16.6 | 0.75 | 3/4 | 1 |
| FMG 015 | 16.6 | 0.75 | 3/4 | 3 |
| FMG 040 | 41.6 | 1.5 | 1 | 3 |
| FMG 050 | 50 | 2 | 1 | 3 |
