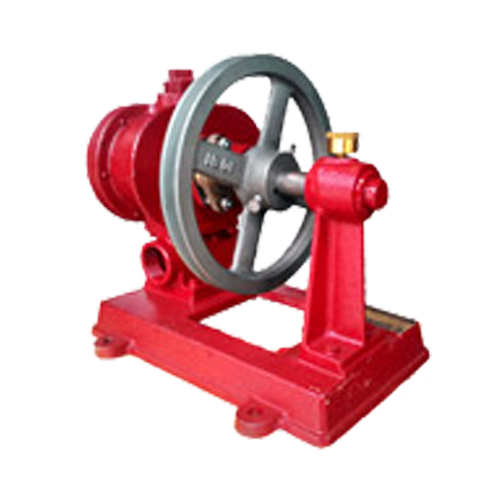

Gear Pumps Huzie HGR Series
Gear pumps (Huzie) pump-quality products imported from Japan (Made in Japan) The pumps are suitable for pumping slurry. The high viscosity Available models include all seven HGR2-1, HGR2-2, HGR2-3, HGR2-4, HGR2-5, HGR2-6 HGR2-7 and can be connected to a suction pipe sizes ranging from 25- 100 mm.[:]
Facebook
Twitter
Email
Print
Gear Pumps Huzie HGR Series
Gear pumps (Huzie) pump-quality products imported from Japan (Made in Japan) The pumps are suitable for pumping slurry.
Huzie HGR Series Specifications
| Model | แบบทองเหลือง | ||||||||
| Type | Suction and Delivery Pipe Sige | Capacity/hour | Total Head | Revolution R.P.M. | Required Power (kw) | ||||
| m/m | inch | Cubic Meter | U.S. Gallons | Meter | Ft. | ||||
| HGR2-1 | Horizontal | 25 | 1 | 4.0 | 1056 | 12 | 40 | 400 | 0.75 |
| HGR2-2 | Horizontal | 35 | 1-1/4 | 6.4 | 1689 | 14 | 45 | 400 | 1.5 |
| HGR2-3 | Horizontal | 40 | 1-1/2 | 8.0 | 2212 | 14 | 45 | 400 | 1.5 |
| HGR2-4 | Horizontal | 50 | 2 | 10.8 | 3151 | 18 | 60 | 370 | 2.2 |
| HGR2-5 | Horizontal | 70 | 2-1/2 | 20.0 | 5280 | 18 | 60 | 370 | 3.7 |
| HGR2-6 | Horizontal | 80 | 3 | 27.3 | 7207 | 18 | 60 | 350 | 5.5 |
| HGR2-7 | Horizontal | 100 | 4 | 36.0 | 9504 | 18 | 60 | 350 | 7.5 |
| Model | แบบเหล็ก | ||||||||
| Type | Suction and Delivery Pipe Sige | Capacity/hour | Total Head | Revolution R.P.M. | Required Power (kw) | ||||
| m/m | inch | Cubic Meter | U.S. Gallons | Meter | Ft. | ||||
| HGR2-1 | Horizontal | 25 | 1 | 4.0 | 1056 | 12 | 40 | 400 | 0.75 |
| HGR2-2 | Horizontal | 35 | 1-1/4 | 6.4 | 1689 | 14 | 45 | 400 | 1.5 |
| HGR2-3 | Horizontal | 40 | 1-1/2 | 8.0 | 2212 | 14 | 45 | 400 | 1.5 |
| HGR2-4 | Horizontal | 50 | 2 | 10.8 | 3151 | 18 | 60 | 370 | 2.2 |
| HGR2-5 | Horizontal | 70 | 2-1/2 | 20.0 | 5280 | 18 | 60 | 370 | 3.7 |
| HGR2-6 | Horizontal | 80 | 3 | 27.3 | 7207 | 18 | 60 | 350 | 5.5 |
| HGR2-7 | Horizontal | 100 | 4 | 36.0 | 9504 | 18 | 60 | 350 | 7.5 |
