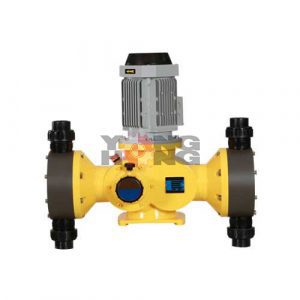

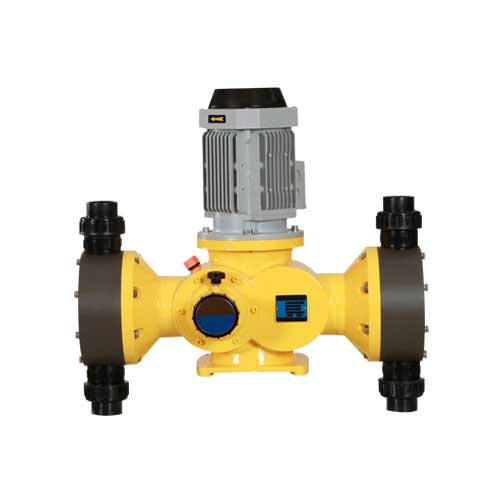

Metering Pump DOSSER MMG3

Metering Pump DOSSER MMG3

DOSSER Diaphragm pump MMG3, driven by a motor, double pump head, high flow rate Compact design Easy to install Energy saving

Category Tags , , , , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

[vc_row][vc_column][vc_column_text]

Metering Pump DOSSER MMG3

[/vc_column_text][vc_column_text]Specifications:

  • Volume: 1300 liters / hour -3600 liters below 50Hz
  •  Pressure: 3-5 bar
  • Temperature: from 0-70 ° C (158 ℉)
  •  Stroke adjustment: 0-100%
  • Suction lift: 1.5m
  • Accuracy: ± 2% of set value

Material:

  • Pump head: PVC, PTFE, SS304, SS316
  • Diaphragm: composite PTFE diaphragm
  • Check valve: PVC, PTFE, SS304, SS316 (same as pump head selection)
  •  Ball valve: Ceramic, SS304, SS316

Power supply:

  •  Standard 380V 3 phase model and can be specially ordered in single phase models or other voltages.There is a motor that prevents leakage of electricity upon request.

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

SPECIFICATIONS DATA DOSSER MMG3

MMG3 1300/0.5-L,MMG3 1700/0.5-L,MMG3 2000/0.4-L,MMG3 2800/0.3-L,MMG3 3600/0.3-L

[/vc_column_text][vc_column_text]

Model
 50Hz 60 Hz Pressure Diaphragm Dia.(mm) Power KW(HP)
Flow (lph) Flow (gph) SPM Flow (lph) Flow (gph) SPM Bar Psi
MMG3 1300/0.5-L 1300 343 96 1560 412 115 5 73 148 1.1(1.5)
MMG3 1700/0.5-L 1700 449 144 2040 539 173 5 73
MMG3 2000/0.4-L 2000 528 2400 634 4 58
MMG3 2800/0.3-L 2800 740 3360 888 3 44 185
MMG3 3600/0.3-L 3600 951 4320 1141 3 58

[/vc_column_text][/vc_column][/vc_row]
