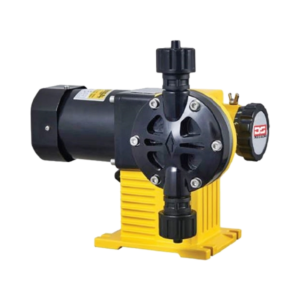

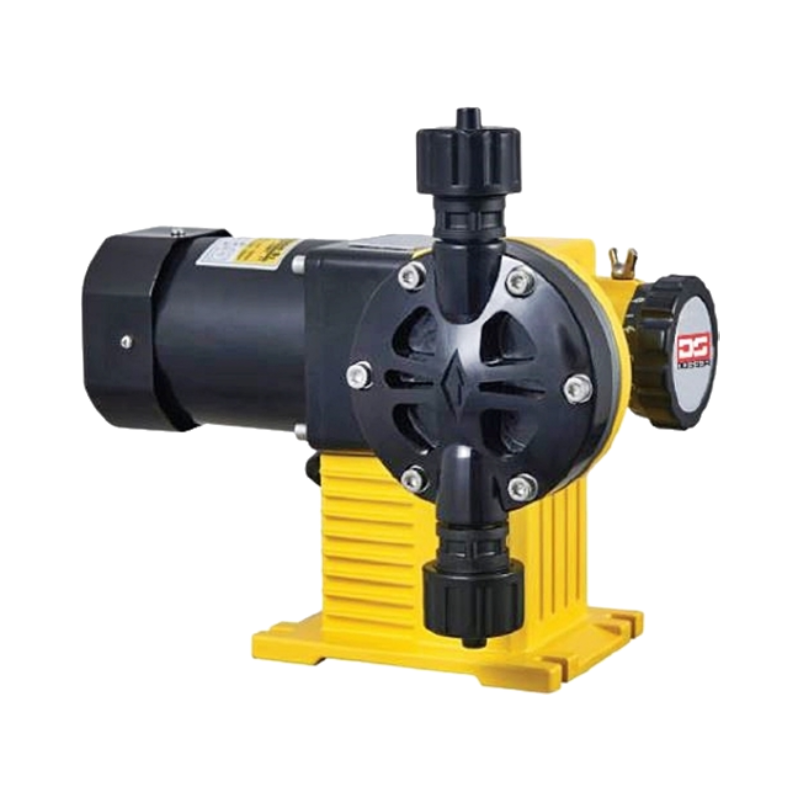

DOSSER MMJ1 series mechanical diaphragm metering pumps are spring type pumps with micro motor and reducer. It is robust and oil-free design. The rated power is only 60W, while the max pressure can be up to 10 bars, and max capacity can be up to 130lph. It is an ideal metering pump for all chemical dosing applications.
DOSSER MMJ11510,MMJ12510,MMJ14008,MMJ16006,MMJ18505,MMJ110004,MMJ113004
Features:
Materials:
Power Supply:
380V 3 phase on standard, single phase or other voltage on request; DC powered motor 12V or 24V is available.
DOSSER MMJ11510,MMJ12510,MMJ14008,MMJ16006,MMJ18505,MMJ110004,MMJ113004
| Model | 50Hz | 60 Hz | Pressure | DiaphragmDia. (mm) | Power | |||||
| Flow (lph) | Flow (gph) | SPM | Flow (gph) | Flow (lph) | SPM | (Bar) | (Psi) | |||
| MMJ11510 | 14 | 3.7 | 100 | 4.4 | 17 | 120 | 10 | 145 | 60 | 60W |
| MMJ12510 | 25 | 6.6 | 100 | 7.9 | 30 | 120 | 10 | 145 | ||
| MMJ14008 | 38 | 10 | 150 | 12 | 46 | 180 | 7 | 102 | ||
| MMJ16006 | 60 | 16 | 100 | 19 | 72 | 120 | 6 | 87 | 84 | |
| MMJ18505 | 80 | 21 | 100 | 25 | 96 | 120 | 5 | 73 | ||
| MMJ110004 | 100 | 26 | 150 | 32 | 120 | 180 | 4 | 58 | ||
| MMJ113004 | 130 | 34 | 150 | 41 | 156 | 180 | 4 | 58 | ||
