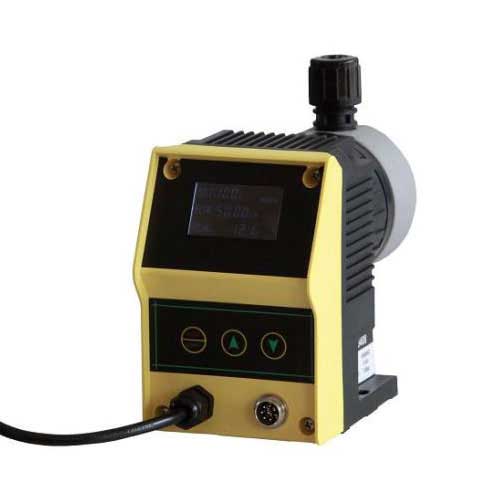

Metering Pump DOSSER MSJ2
Metering Pump Solenoid-driven Diaphragm pump DOSSER MSJ2 is a digital pump with advanced microprocessor control panels. Innovative large LED screen displays instant flow and cumulative flow for easy reading. Precise volume control Can control the tempo Manually and automatically, flow rates from 1 liter / hour to 20 liters / hour at reverse pressure from 10 bar to 1 bar
Facebook
Twitter
Email
Print
[vc_row][vc_column][vc_column_text]
Metering Pump DOSSER MSJ2
DOSSER MSJ2 0110-L,MSJ2 0408-L,MSJ2 0607-L,MSJ2 0805-L,MSJ2 1204-L,MSJ2 1502-L,MSJ2 2001-L
Using
- Waste water treatment system: add disinfectants Sediment measurement
- Cooling system: add corrosion inhibitors and biocides
- Paper industry: additive
- Plastic production: Measurement of additives
qualification
- Control the flow rate manually by rhythm rate
- Automatic analog input control: Compatible with 4-20 mA signals
- Automatic pulse input control: Pulse input with the ability to multiply and divide
- RS485 comunication interface: single pump or two pumps connected and – controlled by computer
- External remote control for starting / stopping: the pump can be connected to – level indicator for starting / stopping automatically
Material
- Pump head: PVC, PVDF, SS304, SS316
- Diaphragm: PTFE
- Valve: Same as choosing a pump head
- Ball valve: Ceramic
- Inlet – Out pipe: PE pipe[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
DOSSER MSJ2 Series Metering Pump Specifications
DOSSER MSJ2 0110-L,MSJ2 0408-L,MSJ2 0607-L,MSJ2 0805-L,MSJ2 1204-L,MSJ2 1502-L,MSJ2 2001-L
[/vc_column_text][vc_column_text]
|
Model
|
50/60 Hz | Diaphragm Dia.(mm) | Power | Connection Size | ||||
| Flow (lph) | Pressure (Bar) | Flow (gph) | Pressure (Psi) | SPM | ||||
| DOSSER MSJ2 0110-L | 1 | 10 | 0.3 | 145 | 110 | 34 | 30W | 5*8mm |
| DOSSER MSJ2 0408-L | 3.8 | 7.6 | 1 | 110 | 130 | |||
| DOSSER MSJ2 0607-L | 6.3 | 6.8 | 1.7 | 99 | 160 | 41 | ||
| DOSSER MSJ2 0805-L | 8 | 5 | 2.1 | 73 | 170 | |||
| DOSSER MSJ2 1204-L | 12 | 4 | 3.2 | 58 | 150 | 52 | ||
| DOSSER MSJ2 1502-L | 15 | 2 | 4 | 29 | 170 | |||
| DOSSER MSJ2 2001-L | 20 | 1 | 5.03 | 15 | 180 | |||
[/vc_column_text][/vc_column][/vc_row]
