DOSSER MPA Series

METERING PUMPS DOSSER MPA Series

Dosser MPA Series Solenoid Metering PumpHouse. Adjustable dual The adjustablefrequency adjustable volume There are several models to choose from the Max Capacity Flow from 1-15 L / H sized pipeline1/4 “PE and 3/8″ PE Power 22 W Frequency50/60 Hz.

Category Tags , , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

METERING PUMPS DOSSER MPA Series

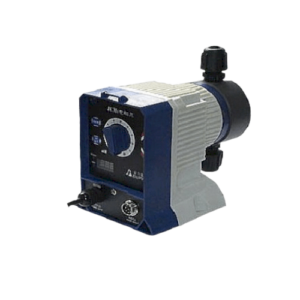

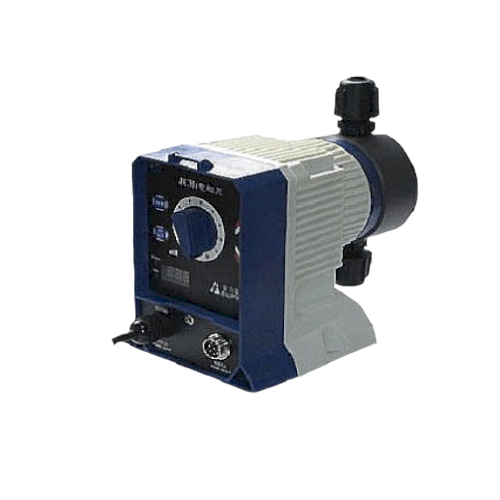

Solenoid Metering Pump House Dosser MPA Series.

  •      Adjustable two (frequency, volume adjustment).
  •      The pump can be external receiver mA (Option).
  •      A control function and shuts down when the chemical tank (Option).
  •      Remote control (Option).



Model Electical system Frequency Power Flow rate Outletport Pressure Material pump
MPA-0120 110/220 V 0.6/0.4 A 50/60 Hz 22 W 1 L/Hr 1/4″PE 20.7 bar PVC/PVDF/316
MPA-0217 110/220 V 0.6/0.4 A 50/60 Hz 22 W 1.9 L/Hr 1/4″PE 17.2 bar PVC/PVDF/316
MPA-0408 110/220 V 0.6/0.4 A 50/60 Hz 22 W 3.8 L/Hr 3/8″PE 7.6 bar PVC/PVDF/316
MPA-0804 110/220 V 0.6/0.4 A 50/60 Hz 22 W 7.6 L/Hr 3/8″PE 3.4 bar PVC/PVDF/316
MPA-1202 110/220 V 0.6/0.4 A 50/60 Hz 22 W 12.1 L/Hr 3/8″PE 1.5 bar PVC/PVDF/316
MPA-1501 110/220 V 0.6/0.4 A 50/60 Hz 22 W 15 L/Hr 3/8″PE 1 bar PVC/PVDF/316
