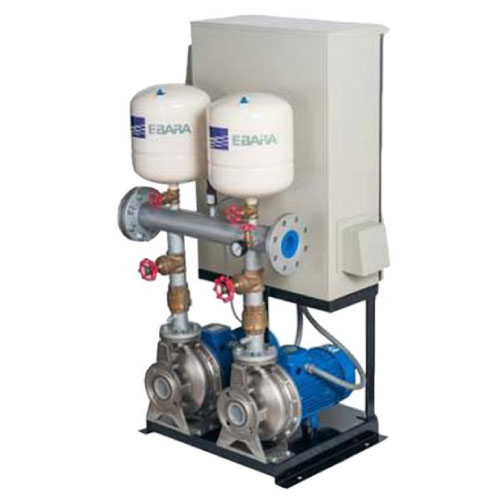

Booster Pump System brand EBARA model UN3 Series or a set of water pressure control pumps. With a high-quality water pump, the system will start when the pressure in the pipe system drops. EBARA UN3 Series is a booster pump that can adjust the speed. Mostly used in high rise apartment condominium buildings. Including in hotels, etc.

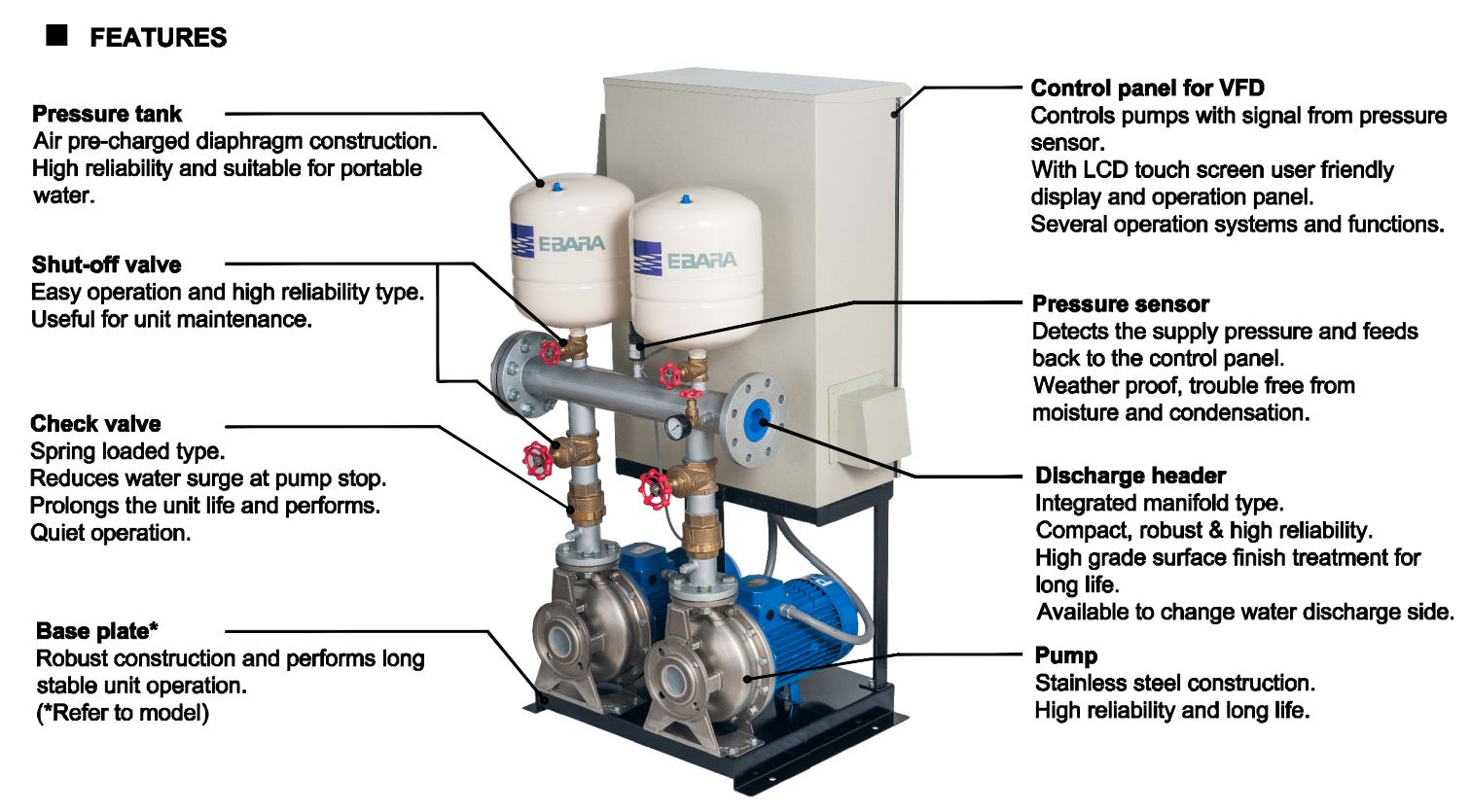

Booster Pump EBARA model UN3 Series (Booster pump system) is a booster pump set. With high quality standards from Japan In principle, the EBARA booster pump system has a unique design. Help with saving energy Save space for use Can be easy to install Comes with a control cabinet, can be placed outside the building area.
Booster pump Can be used in high-rise buildings, condominiums, offices, industrial factories, apartments, high-rise hotels
1.Domestic : High-rise buildings, Condominiums, Apartments etc.
2.Commercial : Office buildings, Hotels, Shopping centers etc.
3.Industrial : Factory utility, Manufacturing & processing industries applications etc.
4.Social service : Schools, Hospitals etc.
| Model Booster Pump EBARA UN3 | UN3C-D | UN3C-T | UN3C-F | |
| Pump operation No. / Inverter No. | 2/2 | 3/3 | 4/4 | |
| Pump model | CDX, 2CDX, 3M & EVMS (Vertical Multistage) | |||
| Handled liquid property | Fresh water, 0-60 degree C | |||
| Installation | Outdoor design | |||
| Operation system | Pump speed | Variable frequency control | ||
| Control | Supply pressure constant with pipe loss compensation by VFD drive | |||
| Power source | AC, Three phase, 50Hz, 380V | |||
| Max.working pressure | 8 to 10 bar G (8.2 to 10.2 kgf/cm² G) ; Refer to model | |||
| Allowable suction pressure | Min. : -0.3 bar G (-0.3 kgf/cm² G), Max. : +0.3 bar G (+0.3 kgf/cm² G) | |||
| Control panel | Starting method | Soft start | ||
| Construction | Weather & dust proof type | |||
| Operation key | Touch screen | |||
| Display | LCD | |||
| Pressure tank | Construction | Air pre-charged diaphragm type | ||
| Capacity | 24 liters (Standard) | |||
| Quantity | Refer to model | |||
| Accessories | Control panel & support, Pressure sensor, Pressure tank | |||
| Common base, Piping & valves | ||||
| Pump model / Operation No. | Other models / 5 & 6 |
| Pressure tank | Large capacity upon request |
| Others | On request |
