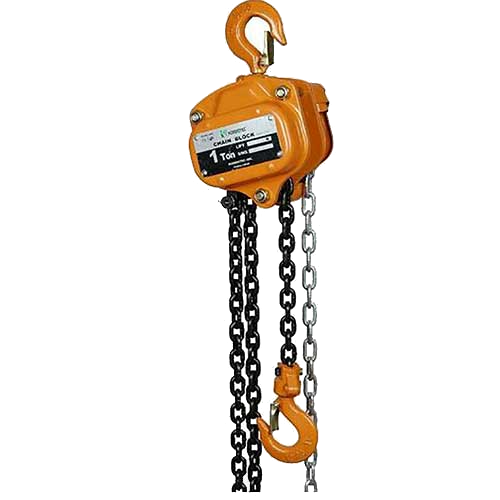

Chain Block KONDO
Chain Block KONDO product standard quality control of japan, has capacity load lifting start 0.5-30 Tons. Suitable for factory industry construction and transportation.
Facebook
Twitter
Email
Print
CHAIN BLOCK KONDO
HAND CHAIN HOIST KONDO product standard quality control of japan,Suitable for factory industry construction and transportation.
CHAIN BLOCK KONDO Feature
- Small,lightweight and easy to use.
- Chain made by heat treatment technology increase Dorable and High resistance wear.
- Strong and safety,add a groove and safety lacth at hook prevent more loose and increase the sequrity level.
- Chain can increase length.
- KONDOTEC conformed with CE standard.
Specifcations
| MODEL | LEVER HOIST | ||||||||||
| Rated load (T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | |
| Test load (T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 18.75 | 25 | 37.5 | |
| Standard Lift (m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Min.distance beetween 2 hooks (mm) | 262 | 324 | 330 | 395 | 402 | 430 | 438 | 447 | 438 | 442 | |
| Effort required at capacity (N) | 5 | 6 | 7.1 | 8(6) | 7.1 | 10 | 10 | 10 | 10 | 10 | |
| Diameter of Load Chain (mm) | 1 | 1 | 1 | 1(2) | 2 | 2 | 4 | 6 | 8 | 10 | |
| Number of Load Chain | 127 | 56 | 180 | 153 | 180 | 230 | 410 | 410 | 645 | 710 | |
| Dimensions (mm) | A | 115 | 131 | 142 | 131 | 142 | 171 | 171 | 204 | 215 | 398 |
| B | 288 | 334 | 415 | 459 | 536 | 660 | 738 | 1028 | 1002 | 1050 | |
| C | 23 | 24 | 36 | 34 | 35 | 47 | 61 | 816 | 816 | 816 | |
| D | 7 | 10.5 | 15.5 | 16 | 23 | 39 | 69 | 95 | 155 | 237 | |
| Net Weight (kg) | 1.5 | 1.8 | 13.8 | 2.7 | 3.2 | 5.3 | 9.8 | 14.2 | 19.6 | 23.9 | |
