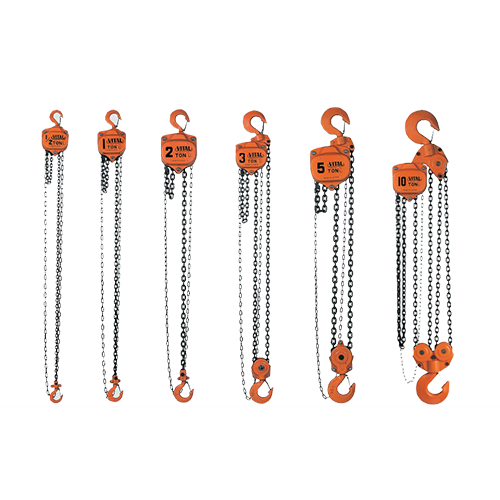

Chain Block VITAL VL5 Series
VITAL VL5 Series Hoists with the lift in other lengths are also available.”VL5″Series….With a hardened special alloy steel load chain.
Facebook
Twitter
Email
Print
Chain Block VITAL VL5 Series
VL 5 is the chain block of the wonderful performance high quality. VITAL brand is registered worldwide. Products made in japan. For plated parts, we use trivalent chromate treatment, which is environment friendly, high quality.
- Moving products from one place to another.
- Uprooting trees.
- Installing underwater pump
- Laying conduits and pipelines
- ISO 9001 Certificate No.JQA-QM4488
| Capacity | Model Number | Standard Lift (m) | Net Weight | Gross Weight | Pull to Lift Load | Head Room c | a | b | g | Test Load | |
| (t) | (m) | (kg) | (kg) | (kgf) | (N) | (mm) | (mm) | (mm) | (mm) | (t) | |
| ½ | VL5-05 | 2.5 | 8.3 | 8.7 | 25 | 245 | 285 | 129 | 145 | 27 | 0.8 |
| 1 | VL5-10 | 2.5 | 11.3 | 11.8 | 33 | 324 | 315 | 149 | 158 | 30 | 1.5 |
| 1 ½ | VL5-15 | 2.5 | 13.5 | 13.5 | 34 | 333 | 340 | 149 | 177 | 34 | 2.25 |
| 2 | VL5-20 | 3.0 | 21.0 | 21.0 | 34 | 333 | 380 | 181 | 204 | 37 | 3.0 |
| 3 | VL5-30 | 3.0 | 22.0 | 22.0 | 35 | 343 | 475 | 149 | 208 | 43 | 4.5 |
| 5 | VL5-50 | 3.0 | 40.0 | 40.0 | 39 | 382 | 600 | 181 | 263 | 47 | 7.5 |
| 7½ | VL5-75 | 3.5 | 59.0 | 59.0 | 41 | 402 | 700 | 181 | 354 | 67 | 9.5 |
| 10 | VL5-90 | 3.5 | 77.0 | 77.0 | 41 | 402 | 740 | 181 | 367 | 67 | 12.5 |
