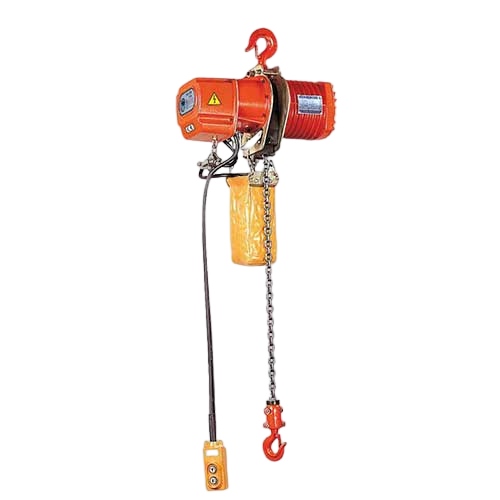

Electric Chain Hoist BLACKBEAR YSF SERIES
Electric Chain Hoist BLACKBEAR YSF Series is an electrically-powered hoisting device designed for easy control during lifting operations. It is lightweight and convenient for movement. Electric chain hoists are commonly used in industrial settings, manufacturing plants, maintenance, and service applications, among others.
Facebook
Twitter
Email
Print
Electric Chain Hoist BLACKBEAR YSF SERIES
FEATURES OF YSF SERIES:
- Pendant control voltage transformed into 24V/48V to eliminate possible accident caused by circuit short and assure safe operation in wet environments.
- Automatic motor brake system features simultaneous braking upon power failure or switching off.
- Dual brake system assures safe operation.
SPECIFICATIONS DATA
| Lift Height (m) | 3(6) etc. | ||||||
| Load Chain (mm) | ø7.1 | ø7.1 | |||||
| Single Speed (m/min) | 50 Hz | 5.6 | 3.9 | 2 | 6.7 | 4.7 | 2.3 |
| 60 Hz | 6.7 | 4.7 | 2.3 | 8 | 5.6 | 2.8 | |
| Motor Power (kw) | 1.8 | 1.8 | |||||
| Power Supply | Single Phase | Single Phase | |||||
| 110V, 115V | 220V, 230V | ||||||
| E.D. Rating (%) | 15 | 15 | |||||
| Load Chain Fall Number | 1 | 2 | 1 | 2 | |||
| N.W./G.W. (kg) | 55/58.5 | 64.5/67 | 55/58.5 | 65/67 | |||
| Packing LXWXH (cm) | 60X57X33 | ||||||
| Msrmnt (Cu.ft) | 4 | ||||||

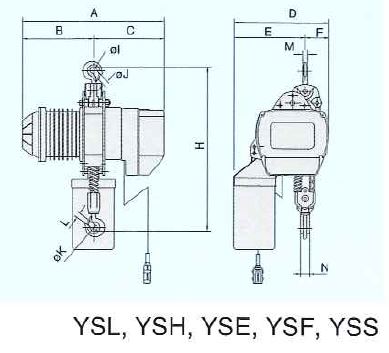

DIMENSIONS DATA
| Capacity (ton) |
Model | Dimensions (mm) | ||||||
| H | A | B | C | D | E | |||
| YSL,H,E YSF |
0.5,1 | MT-050, 100 | 705 | 328 | 173 | 294 | 98 | 75-125 |
| 2 | MT-200 | 935 | 328 | 173 | 322 | 111 | 100-150 | |

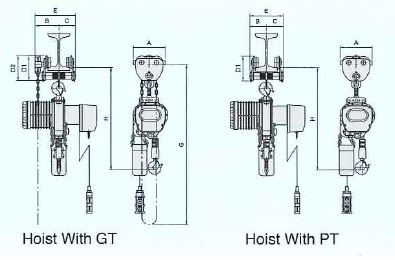

| Capacity (ton) |
Model | Dimensions (mm) | Flange Width | ||||||||
| H | A | B | C | D1 | D2 | E | G | (mm) | |||
| YSL,H, YSE,F |
0.5 | GT-050 | 710 | 194 | 156 | 110 | 151 | 150 | 266 | 2709 | 50-150 |
| 0.5 | PT-050 | 710 | 194 | 110 | 110 | 151 | – | 220 | – | 50-150 | |
| 1 | GT-100 | 720 | 217 | 160 | 113.5 | 170 | 167 | 273 | 2719 | 75-150 | |
| 1 | PT-100 | 720 | 217 | 113.5 | 113.5 | 167 | – | 227 | – | 75-150 | |
| 2 | GT-200 | 920 | 247 | 179 | 130 | 224 | 207 | 309 | 3279 | 100-175 | |
| 2 | PT-200 | 920 | 247 | 130 | 130 | 207 | – | 260 | – | 100-175 | |
