Electric Chain Hoist ELEPHANT DAM SERIES
Electric Chain Hoist with Motor Trolley ELEPHANT DAM-1,DAM-2,DAM-3,DAM-5,DAM-10
- Durable and strong motor In order to work in many situations, the motor is developed again. To be installed in this hoist which the motor can operate continuously Even with frequent on-off The lifting speed is high.
- The pulley structure is designed to prevent dust and keep sound.
- The hoist chain is certified to ISO and DIN 5684 (German standard). It can withstand tensile strength of 900 mpa.
- Braking system using electromagnetic DC solenoid which uses less power to operate And the electromagnetic brake system also works with the mechanical brake system to make the brakes work Can be more complete (2-layer brake system)
- The correct braking mechanism Precise even with a load on the hook. In addition, the gear can be monitored conveniently. Because there is a structure that encapsulates the gear into an open style
- Reliable 2-stroke power switch for working. Step 1 The switch will cut the control circuit. Step 2 The switch will cut the power circuit, which will make the switch life longer. And the contact point has a low resistance and has a phase reverse protection
- Motor structure is aluminum. Make the heating system well
- The control switch will have a voltage only 24v.
- The hook has a steel plate closed together and the hook can rotate around 360 degrees because there are bearings. In the case of overload, the hook will slowly pull out but not broken
- Can increase the chain length.
ELEPHANT DAM Series Specifications
Electric Chain Hoist with Motor Trolley ELEPHANT DAM-1,DAM-2,DAM-3,DAM-5,DAM-10
| Model | Lifting | Test Load | Lifting Distance | Standard push button cord length | Lifting motor output | Chain Size | Traversing motor output | Lifting Speed | Hoist Speed | Traversing Ibeam Width | Trolley minimum radius | minimum Distance | Capacity |
| (T.) | (T.) | (M.) | (M.) | (Kw.) | (MM.x Pitch) | (Kw.) | (m/min) | MM | MM | (MM.) | (Kg.) | ||
| DAM-1W | 1 | 1.25 | 3 | 2.5 | 0.9 | 6.3×19(2) | 0.4 | 3.6 | 20 | 75-150 | 1100 | 740 | 92(102) |
| 6 | 5.5 | ||||||||||||
| DAM-1S | 1 | 1.25 | 3 | 2.5 | 1.7 | 7.1×21(1) | 6.8 | 620 | 101(106 | ||||
| 6 | 5.5 | ||||||||||||
| DAM-2W | 2 | 2.5 | 3 | 2.5 | 1.7 | 7.1×21(2) | 3.4 | 100-150 | 795 | 124(133) | |||
| 6 | 5.5 | ||||||||||||
| DAM-2S | 2 | 2.5 | 3 | 2.5 | 3.4 | 11.2×34(1) | 0.4 | 6.9 | 20 | 1500 | 735 | 197(206) | |
| 6 | 5.5 | ||||||||||||
| DAM-2.5 | 2.5 | 3.13 | 4 | 3.5 | 3.4 | 11.2 x 34 (1) | 0.75 | 5.5 | 20 | 100-150 | 1500 | 745 | 192 |
| DAM-3 | 3 | 3.75 | 4 | 3.5 | 3.4 | 9.5 x 28.6 (2) | 0.75 | 4.35 | 20 | 100-150 | 1500 | 955 | 209 |
| DAM-5 | 5 | 6.25 | 4 | 3.5 | 3.4 | 11.2 x 34 (2) | 0.75 | 2.75 | 20 | 125-175 | 2000 | 1060 | 246 |
| DAM-10 | 10 | 12.5 | 4 | 3.5 | 3.4×2 | 11.2 x 34 (4) | 0.75×2 | 2.7 | 20 | 125-175 | 2000 | 1185 | 619 |
ELEPHANT DAM Series Dimensions

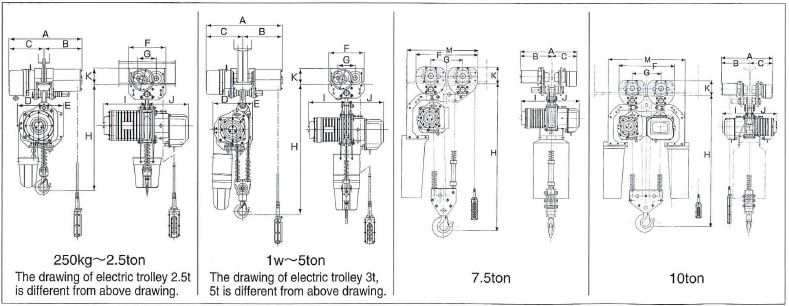

Electric Chain Hoist with Motor Trolley ELEPHANT DAM-1,DAM-2,DAM-3,DAM-5,DAM-10
| Model | A | B | C | γ | D | E | F | G | I | J | K | M |
| DAM-1W | 482+2β | 251+β | 231+β | 75 | 208 | 68 | 246 | 120 | 267 | 261 | 108 | |
| DAM-1S | 482+2β | 251+β | 231+β | 75 | 174 | 127 | 246 | 120 | 290 | 274 | 108 | |
| DAM-2W | 516+2β | 268+β | 248+β | 100 | 219 | 82 | 324 | 148 | 290 | 274 | 122 | |
| DAM-2S | 516+2β | 268+β | 248+β | 100 | 198 | 174 | 324 | 148 | 342 | 313 | 122 | |
| DAM-2.5 | 574+2β | 323+β | 251+β | 100 | 198 | 174 | 316 | 16 | 342 | 313 | 167 | |
| DAM-3 | 574+2β | 323+β | 251+β | 100 | 258 | 114 | 316 | 160 | 342 | 313 | 167 | |
| DAM-5 | 612+2β | 342+β | 270+β | 125 | 273 | 102 | 336 | 170 | 342 | 313 | 172 | |
| DAM-10 | 612+2β | 342+β | 270+β | 125 | 696 | 360 | 342 | 313 | 172 | 798 |
