ELECTRIC CHAIN HOIST NITCHI EC4 SERIES Geared trolley type

Electric Chain Hoist NICHI EC4 With Geared trolley high quality products imported from Japan. 4-way Available in all models,scale was raised first. 0.25 until 2 tonnes, a power supply at 380V and 220V

Facebook
Twitter
Email
Print

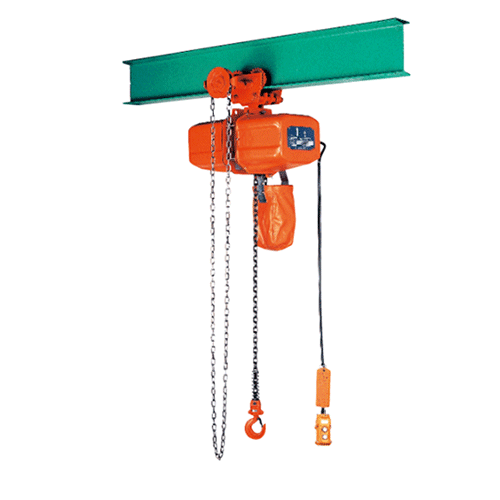

ELECTRIC CHAIN HOIST NITCHI EC4 SERIES Geared trolley type

Nitchi’s Economy models feature high reliability, easy maintenance, and an affordable price so that they can be used in various industrial applications.

FEATURES

  • Simple oparation This geared trolley hoist can be moved upward and downward via a two-button switch.
  • Easy oparation of the four-button A four-button switch is used when combining the hoist with a motorized crane (traveling type).
  • Super-tough two-chain configuration The rated load of 1 tw and 2 t is applicable to a two-chain configuration.(ECCG4 Series is only 1tw)
  • You can choose length of the lift The standard lift is 3 m and 6 m. Longer lifts are available upon request. ECCG4 Series’s standard lift is 3m)
  • You can choose length of power cable too The length of a standard power cable is 5 m. (That of a four-button model used in combination with a crane is 1 m.) Please consult us for different cable lengths or for other power feeding systems.
  • Speed change suitable for precision work This is a two-speed electric chain hoist with a geared trolley.(ECTG4 Series)
  • More convinient in combination with trolley This is a single-phase electric chain hoist with a geared trolley. (ECCG4 Series)



ELECTRIC CHAIN HOIST NITCHI ECG4 SERIES With Geared trolley
Single Speed Electric Chain Hoist
ECG4 Specifications

Item no. Rated Standard Lifting motor output(kW) Lifting speed(m/min) Breadth of Net weight Hook weight(kg) Length of power Length of push Length of Movement distance
load (t) lift (m) beams ※(≒kg) source cable button cable hand chain (mm)
b(mm) (m) S(m) I(m) when the hand
50Hz 60Hz 50Hz 60Hz chain is pulled 1 m
ECG40025 0.25 3 0.4 0.5 8.7 10.3 75 47 0.7 5 2.6 3 229
6 100 53 5.6 6
ECG40050 0.5 3 0.9 1.1 8.6 10.1 125 49 2.6 3
6 55 5.6 6
ECG40100 1 3 1.1 1.3 5.6 6.6 60 0.9 2.6 3
6 67 5.6 6
ECJG40200 2 3 2.8 3.3 100 80 5 2.6 3 138
125
6 150 90 5.6 6

Notes:
Figures marked with an asterisk (*) are based on the standard lift.
Specifications are subject to change for improvements without notice.



ELECTRIC CHAIN HOIST NITCHI ECTG4 SERIES With Geared trolley
Dual Speed Electric Chain Hoist
ECTG4 Specifications

Item no. Rated Standard Lifting motor output(kW) Lifting speed(m/min) Breadth of Net weight Hook weight(kg) Length of power Length of push Length of Movement distance
load (t) lift (m) beams ※(≒kg) source cable button cable hand chain (mm)
fast speed slow speed fast speed slow speed b(mm) (m) S(m) I(m) when the hand
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz chain is pulled 1 m
ECTG40025 0.25 3 0.4 0.5 0.1 0.125 8.7 10.3 2.2 2.6 75 49 0.7 5 2.6 3 229
6 100 55 5.6 6
ECTG40050 0.5 3 0.9 1.1 0.23 0.28 8.6 10.1 2.2 2.6 125 53 2.6 3
6 58 5.6 6
ECTG40100 1 3 1.1 1.3 0.27 0.33 5.6 6.7 1.4 1.7 65 0.9 2.6 3
6 73 5.6 6
ECTJG40200 2 3 2.8 3.3 0.7 0.8 100 85 5 2.6 3 138
125
6 150 95 5.6 6

Notes:
Figures marked with an asterisk (*) are based on the standard lift.
Specifications are subject to change for improvements without notice.



ELECTRIC CHAIN HOIST NITCHI ECCG4 SERIES With Geared trolley
Single Speed 1-phase Electric Chain Hoist
ECCG4 Specifications

Item no. Rated Standard Lifting Lifting speed(m/min) Breadth of Net weight Hook weight(kg) Length of power Length of push Length of Movement distance
load (t) lift (m) motor output beams ※(≒kg) source cable button cable hand chain (mm)
(kW) b(mm) (m) S(m) I(m) when the hand
50Hz 60Hz chain is pulled 1 m
ECCG40030 0.3 3 0.4 5.4 6.4 75 48 0.7 5 2.6 3 229
100
ECCG40050 0.5 3.2 3.8 125

Notes:
Figures marked with an asterisk (*) are based on the standard lift.
Specifications are subject to change for improvements without notice.
