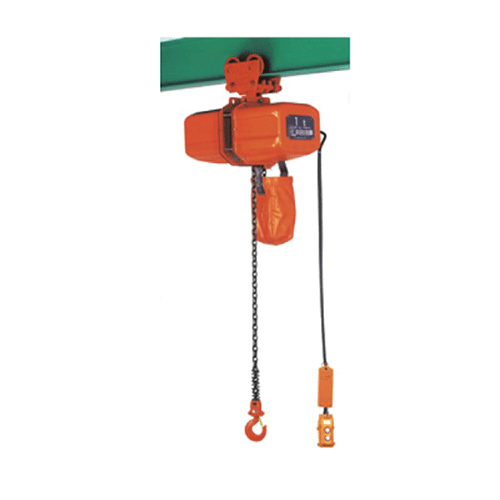

ELECTRIC CHAIN HOIST NICHI EC4 SERIES Plain trolley type
Electric Chain Hoist NICHI EC4 With Plain trolley high quality products imported from Japan. 4-way Available in all models,scale was raised first. 0.25 until 2 tonnes, a power supply at 380V and 220V
ELECTRIC CHAIN HOIST NICHI EC4 SERIES Plain trolley type
Nitchi’s Economy models feature high reliability, easy maintenance, and an affordable price so that they can be used in various industrial applications.
FEATURES
- Simple oparation This plain trolley hoist can be moved upward and downward via a two-button switch.
- Easy oparation of the four-button A four-button switch is used when combining the hoist with a motorized crane (traveling type).
- Super-tough two-chain configuration The rated load of 1 tw and 2 t is applicable to a two-chain configuration.（ECCP4 Series is only 1tw）
- You can choose length of the lift The standard lift is 3 m and 6 m. Longer lifts are available upon request. （ECCP4 Series’s standard lift is 3m）
- You can choose length of power cable too The length of a standard power cable is 5 m. (That of a four-button model ECP4 Series, ECTP4 Series used in combination with a crane is 1 m.) Please consult us for different cable lengths or for other power feeding systems.
- Speed change suitable for precision work This is a two-speed electric chain hoist with a plain trolley.（ECTP4 Series）
- It can be use 100V home power supply This is a single-phase electric chain hoist with a plain trolley.（ECCP4 Series
ELECTRIC CHAIN HOIST NICHI ECP4 SERIES With Plain trolley
Single Speed Electric Chain Hoist
ECP4 Specifications
| Item no. | Rated | Standard | Lifting motor output(kW) | Lifting speed(m/min) | Breadth of | Net weight | Hook weight(kg) | Length of power | Length of push | ||
| load (t) | lift (m) | beams | ※(≒kg) | source cable | button cable | ||||||
| 50Hz | 60Hz | 50Hz | 60Hz | b(mm) | (m) | S(m) | |||||
| ECP40025 | 0.25 | 3 | 0.4 | 0.5 | 8.7 | 10.3 | 75 | 41 | 0.7 | 5 | 2.6 |
| 6 | 100 | 45 | 5.6 | ||||||||
| ECP40050 | 0.5 | 3 | 0.9 | 1.1 | 8.6 | 10.1 | 125 | 44 | 2.6 | ||
| 6 | 47 | 5.6 | |||||||||
| ECP40100 | 1 | 3 | 1.1 | 1.3 | 5.6 | 6.6 | 55 | 0.9 | 2.6 | ||
| 6 | 59 | 5.6 | |||||||||
| ECJP40200 | 2 | 3 | 2.8 | 3.3 | 100 | 73 | 5 | 2.6 | |||
| 125 | |||||||||||
| 6 | 150 | 80 | 5.6 | ||||||||
Notes:
Figures marked with an asterisk (*) are based on the standard lift.
Specifications are subject to change for improvements without notice.
ELECTRIC CHAIN HOIST NICHI ECTP4 SERIES With Plain trolley
Dual Speed Electric Chain Hoist
ECTP4 Specifications
| Item no. | Rated | Standard | Lifting motor output(kW) | Lifting speed(m/min) | Breadth of | Net weight※(≒kg) | Hook weight(kg) | Length of power | Length of push | ||||||
| load (t) | lift (m) | fast speed | slow speed | fast speed | slow speed | beams | source cable | button cable | |||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | b(mm) | (m) | S(m) | |||||
| ECTP40025 | 0.25 | 3 | 0.4 | 0.5 | 0.1 | 0.125 | 8.7 | 10.3 | 2.2 | 2.6 | 75 | 44 | 0.7 | 5 | 2.6 |
| 6 | 100 | 48 | 5.6 | ||||||||||||
| ECTP40050 | 0.5 | 3 | 0.9 | 1.1 | 0.23 | 0.28 | 8.6 | 10.1 | 2.2 | 2.6 | 125 | 47 | 2.6 | ||
| 6 | 49 | 5.6 | |||||||||||||
| ECTP40100 | 1 | 3 | 1.1 | 1.3 | 0.27 | 0.33 | 5.6 | 6.7 | 1.4 | 1.7 | 60 | 0.9 | 2.6 | ||
| 6 | 65 | 5.6 | |||||||||||||
| ECTJP40200 | 2 | 3 | 2.8 | 3.3 | 0.7 | 0.8 | 100 | 78 | 5 | 2.6 | |||||
| 125 | |||||||||||||||
| 6 | 150 | 85 | 5.6 | ||||||||||||
Notes:
Figures marked with an asterisk (*) are based on the standard lift.
Specifications are subject to change for improvements without notice.
ELECTRIC CHAIN HOIST NICHI ECCP4 SERIES With Plain trolley
Single Speed 1-phase Electric Chain Hoist
ECCP4 Specifications
| Item no. | Rated | Standard | Lifting motor output(kW) | Lifting speed(m/min) | Breadth of | Net weight※(≒kg) | Hook weight(kg) | Length of power | Length of push | ||||||
| load (t) | lift (m) | fast speed | slow speed | fast speed | slow speed | beams | source cable | button cable | |||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | b(mm) | (m) | S(m) | |||||
| ECTP40025 | 0.25 | 3 | 0.4 | 0.5 | 0.1 | 0.125 | 8.7 | 10.3 | 2.2 | 2.6 | 75 | 44 | 0.7 | 5 | 2.6 |
| 6 | 100 | 48 | 5.6 | ||||||||||||
| ECTP40050 | 0.5 | 3 | 0.9 | 1.1 | 0.23 | 0.28 | 8.6 | 10.1 | 2.2 | 2.6 | 125 | 47 | 2.6 | ||
| 6 | 49 | 5.6 | |||||||||||||
| ECTP40100 | 1 | 3 | 1.1 | 1.3 | 0.27 | 0.33 | 5.6 | 6.7 | 1.4 | 1.7 | 60 | 0.9 | 2.6 | ||
| 6 | 65 | 5.6 | |||||||||||||
| ECTJP40200 | 2 | 3 | 2.8 | 3.3 | 0.7 | 0.8 | 100 | 78 | 5 | 2.6 | |||||
| 125 | |||||||||||||||
| 6 | 150 | 85 | 5.6 | ||||||||||||
Notes:
Figures marked with an asterisk (*) are based on the standard lift.
Specifications are subject to change for improvements without notice.
ELECTRIC CHAIN HOIST NICHI ECCP4 SERIES With Plain trolley
Single Speed 1-phase Electric Chain Hoist
ECCP4 Specifications
| Item no. | Rated | Standard | Lifting | Lifting speed(m/min) | Breadth of | Net weight※(≒kg) | Hook weight(kg) | Length of power | Length of push | |
| load (t) | lift (m) | motor output | beams | source cable | button cable | |||||
| (kW) | 50Hz | 60Hz | b(mm) | (m) | S(m) | |||||
| ECCP40030 | 0.3 | 3 | 0.4 | 5.4 | 6.4 | 75 | 42 | 0.7 | 5 | 2.6 |
| 100 | ||||||||||
| ECCP40050 | 0.5 | 3.2 | 3.8 | 125 | ||||||
Notes:
Figures marked with an asterisk (*) are based on the standard lift.
Specifications are subject to change for improvements without notice.
