Electric Chain Hoists ELEPHANT SA Series
Electric Chain Hoists ELEPHANT SA Series Electric Chain Hoist (Elephant Electric Chain hoist) from Japan (Made in Japan), with all three versions of the SA-025 scale was raised to 0.25 tons Model SA-05 scale was raised to 0.5 tonnes and Model SA-1 size. Now lift one ton lift system 2-way 3- 6 meters. Can increase the chain length.
Facebook
Twitter
Email
Print
Electric Chain Hoists ELEPHANT SA Series

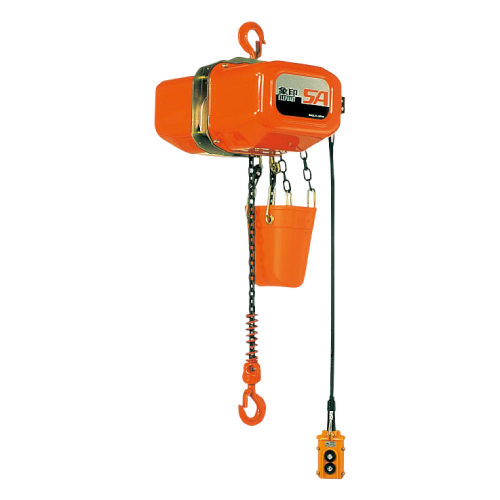

Electric Chain Hoist with Hook ELEPHANT SA Series SA-025,SA-05,SA-1
- Motor designed for general use.
- Precision DC electromagnetic brakes.
- The chains are manufactured from factories according to Japanese standards.
- The structure is made of closed metal.
- The hook has a steel plate closed and the hook can rotate around 360 degrees.
- The chain box is made of durable plastic.
- There is a limit switch to cut when it is up.
- Internal wiring is not complicated.
- Grease lubrication system
- Can increase the chain length
Elephant SA Series Specifications
Electric Chain Hoist with Hook ELEPHANT SA Series SA-025,SA-05,SA-1
| Model | Lifting | Lift Distance | Chain Size | Lifting Speed | Hoist motor | minimum Dstance |
| (T.) | (M.) | (MM.xPitch) | (M./Min) | (Kw.) | (MM.) | |
| SA-025 | 0.25 | 3/6 | 6.3×19(1) | 7 | 0.45-220V | 555 |
| SA-05 | 0.5 | 3/6 | 6.3×19(1) | 3.5 | 0.45-220V | 555 |
| SA-1W | 1 | 3/6 | 6.3×19(2) | 1.8 | 0.45-220V | 670 |
| SA-1S | 1 | 3/6 | 7.1×21(1) | 2.7 | 0.90-220V | 590 |

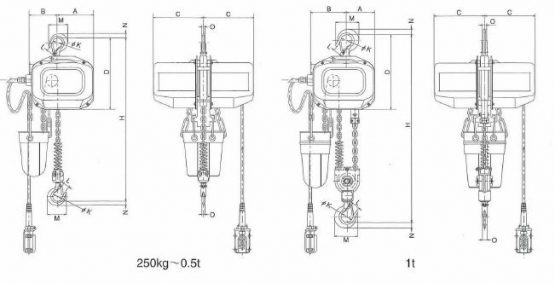

ELEPHANT SA Series Dimensions
Electric Chain Hoist with Hook ELEPHANT SA Series SA-025,SA-05,SA-1
| W.L.L (ton) | A | B | C | D | K | L | M | N | O |
| 250 kg | 161 | 124 | 224 | 311 | 43 | 26.5 | 84 | 19 | 14 |
| 0.5 T | 161 | 124 | 224 | 311 | 43 | 26.5 | 84 | 19 | 14 |
| 1T | 127 | 158 | 224 | 329.5 | 50 | 31 | 103 | 25 | 19 |
