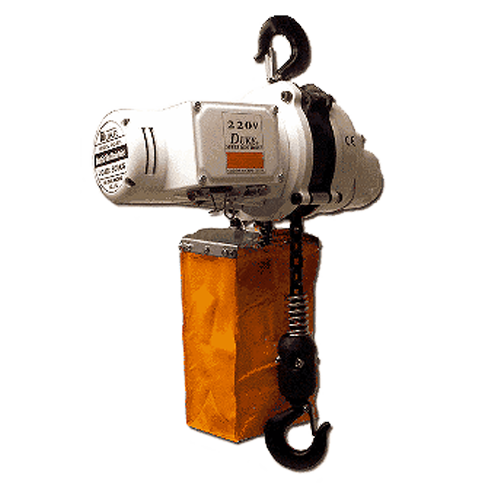

Electric Mini Chain Hoist DUKE DU-902 Series

Electric Mini Chain Hoist DUKE DU-902 Series

Mini chain hoist Light Weight. High Performance

Key Features

Model：DU-902
Capacity(kg)：1000kg

Introduction Of DUKE Brand Electric Winch.

1) The DUKE Electric Winch Adopt.

Brake System: (1) Motor Brake  (2) Gear Brake.

2) Rugged Alloy Body Construction Provide Lightweight,  Compact & Short Headroom.

3) Adopt High Tensile Alloy Wire Rope.  Galvanized & Wear Resistance.

4) All Gears And Pinion Shaft Are Made From High Quality Alloy Steel Of Extreme Surface Hardness And Support On Both Ends By Anti-Friction Ball Bearings. Gears Operate In Sealed Oil Bath.

Features:

• Braking: Dual braking system combines mechanical plus regenerative braking, provides instant and safe braking.
• Gearing: Precision machined gears heat treated for strength and durability, the ball or needle bearings at all rotating points run in oil bath lubrication for a quieter, smoother and cooler operation.
• Loading sheave: Provide smooth lifting, reduce vibration and wear.
• Housing: Lightweight, cast aluminum alloy
• Friction clutch: A high performance and durability friction clutch that is integrated with the load brake. This design is to slip in order to prevent overloading and over travel that could damage the hoist.
• Chain: Designed and manufactured by FEC, Japan, grade 80 alloy steel with resistance and long life service.

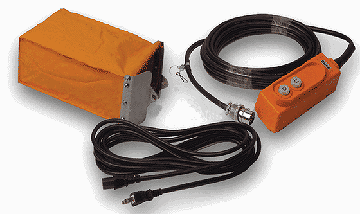

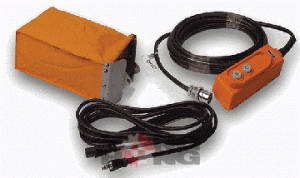

• Chain bag: The vinyl chain bag container is provided standard with hoist.
• Switch: Simply layout of the control with 3M power cable as standard and emergency stop as option.
