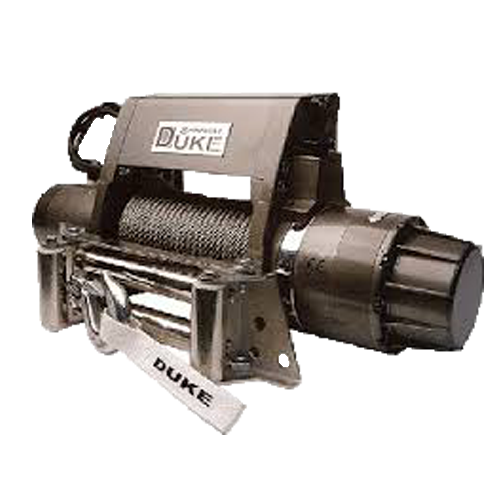

DC Off-Road Winch DUKE DW-12000i Series

DC OFF-ROAD WINCH DUKE DW-12000i SERIES

DC OFF ROAD WINCH

Spec

• Height(cm) : 43
• Weight(kg) : 45
• Length(cm) : 73
• Width(cm) : 29
• machine size : 62.1cmX26.6cmX26.4cm

Key Features

Model：DW-12000i

Usage:

At The Rainforest Challenge ,Stuck On Rotting Bridges-Even Rolled Over In Mud. Yet They Kept Moving Quickly. By Economizing Every Movement, They Maximized Winching Efficiency. DUKE Winch Let Them Power Out Line As Fast As Free Spooling And Once Set, Pull Fast Via Legendary Line Speed. DUKE Winch Never Let Obstacles ,Slow The Down.

• RATED LINE PULL:12000 LBS.(5440 KGS.) SINGLE-LINE
• MOTOR:12V 4.6HP,24V3.6HP,SERIES WOUND

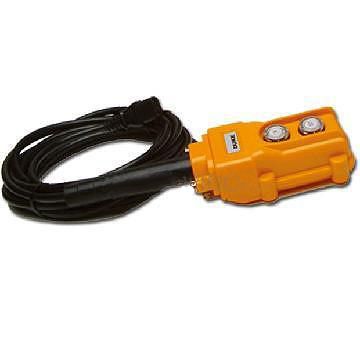

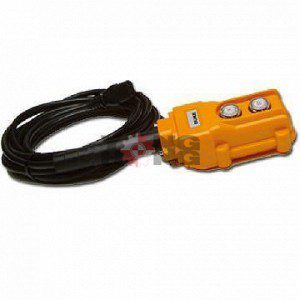

• REMOTE CONTROL:REMOTE SWITCH,16´(5M)LEAD
• GEARTRAIN:4-STAGE PLANETARY
• GEAR RATIO:265:1
• CLUTCH(FREESPOOLING):SLIDING RING GEAR
• BRAKE:AUTOMATIC DIRECT DRIVE BRAKE
• DRUM DIAMETER/LENGTH: 2.5”/9.0”(6.4CM/23CM)
• WEIGHT:84LBS.(38KGS.)
• WIRE ROPE:92”,13/32”DIAMETER(28M.10mmDIAMETER)
• FAIRLEAD:4-WAY ROLLER

1. The solenoid electric wiring box of DW-12000i/DW-10000i/DW-9500i/DW-9000i/DW-8000i/DW-6000i.
2. Is located at central upper of winch and suitable for install it outside car bumper.(it is a open type)

Chi Zong Machine Co., Ltd. is the number one professional manufacturer of winch & hoist in Taiwan.
We developed a leading quality of Taiwan brand “STORNG” and our exporting brand name is “DUKE”.
Our company established in 1979 and we producing excellent quality of hoisting equipment for 30 years.
