FP-FK-FG-FB Series

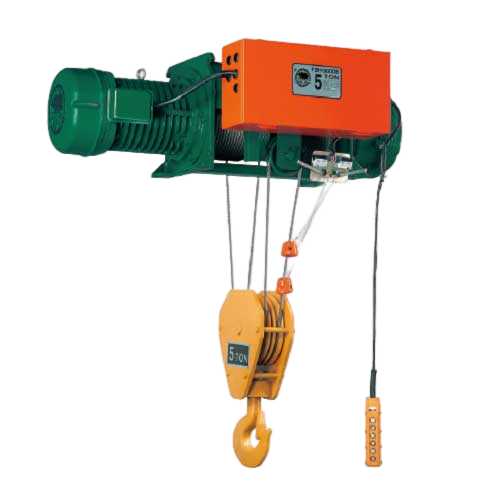

Electric wire rope hoist BLACKBEAR FP-FK-FG-FB Series (DC Brake)

 Electric wire rope hoist BLACKBEAR FP-FK-FG-FB Series (DC Brake) Electric wire rope hoist BLACKBEAR FOOTMOUNT TROLLEY DC Brake Electric wire rope hoist high quality products imported from Taiwan with DC Motor brack , is a FOOTMOUNT Trolley type(available to Lifts) ,has capacity load 1-5 Tons with single speed and Up-Down

Category Tags , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Electric wire rope hoist BLACKBEAR FP-FK-FG-FB Series

Electric wire rope hoist BLACKBEAR FOOTMOUNT TROLLEY DC Brake FP-FK-FG-FB Series

Electric wire rope hoist BLACKBEAR FP-FK-FG-FB Series Electric wire rope hoist BLACKBEAR FOOTMOUNT TROLLEY DC Brake use INTORQ (Lenze Germany) DC Electromagnetic safety brake.Besides low noise basic request, it’s with big brake torque, long life span.Its features come from multi-coil technology instead of the single structure,as well as wear-resistant rotor capability to achieve the torque requirements for users.

FEATURES

  1.  DC Brake New design of DC brake electromagnetic motor disc system works precisely and synchronously with motors, and with a rectifier for trouble free
  2. MOTOR Highly efficiently squirrel cage motors of 40%ED rate (40/ 20% for dual speed) are quiet, small volume , light weight and suitable for most applications.
  3. Control BoxIP-20 control box is applied; Higher IP degree is available upon request.
  4. Gear box Hoist reduction gear system are made of alloy steel with surface harden treatment for long lasting life span.
  5. Wire rope According to JIS no.6 standard for wire rope applications, we use 6×37-A and IWRC 6xFi (29) -B wire rope which features flexible and long life span.
  6. Sheave The proper diameter of sheave ensures the operation and life span of wire rope.
  7. Hook Hot forged hooks with thrust bearing are enable to be swiveled 360°



FP.FK .FG .FB 2



SPECIFICATIONS DATA AND DIMENSIONS DATA  BLACKBEAR FP-FK-FG-FB Series

Model Capacity
(ton)		 Lift
(m)		 Hoisting Wire Rope Approximate Dimension (mm) Approximate
Weight
(kg)
Speed(m/min) Motor
kw pole		 ED% mm R/F H A B C D E F G J K L
60Hz  50Hz
FKM-100 DB 1 6 10.8 10.8 2.2
4P		 40 8 1/2 650 314 540 467 16 310 150 450 373 72 280 205
9 364 590 567 473 215
12 414 640 667 573 225
15 464 690 767 673 235
FKM-200 DB 2 6 8 10.8 3
4P		 40 10 1/2 1150 348 627 466 16 390 232 420 372 72 260 319
9 401 679 571 477 339
12 453 732 676 582 359
15 506 785 781 678 379
FKH-200DB 2 6 8 10.8 3
4P		 40 8 2/4 1150 422 701 614 16 390 232 433 520 72 260 359
9 509 788 788 694 399
12 596 874 961 867 439
15 682 961 1134 1040 479
FGM-300DB 3 6 8 10.8 5
4P		 40 12 1/2 1250 435 635 482 16 430 185 430 348 72 280 330
9 477 676 565 464 350
12 479 862 770 672 370
15 634 917 880 782 390
FKL-300DB 3 6 4.4 10.8 3
4P		 40 10 1/4 1100 450 729 670 16 360 275 443 572 72 310 350
9 523 801 815 717 390
12 640 918 1049 951 430
15 733 1012 1235 1137 470
FGL-300DB 3 6 8 10.8 5
4P		 40 10 2/4 1250 529 729 670 16 430 185 443 527 72 280 330
9 602 802 815 717 365
12 719 919 1049 951 395
15 814 1014 1235 1141 425
FGL-500DB 5 6 4.4 10.8 5
4P		 40 10 1/4 110 529 729 670 16 430 285 453 572 72 330 413
9 602 802 815 717 433
12 719 919 1049 951 453
15 805 1004 1221 1123 473
FBH-500DB 5 6 7.3 10.8 7.5
4P		 40 10 2/4 1300 553 722 670 16 440 215 483 572 72 350 483
9 603 722 770 672 423
12 743 912 1049 951 603
15 838 1007 1239 1141 633
