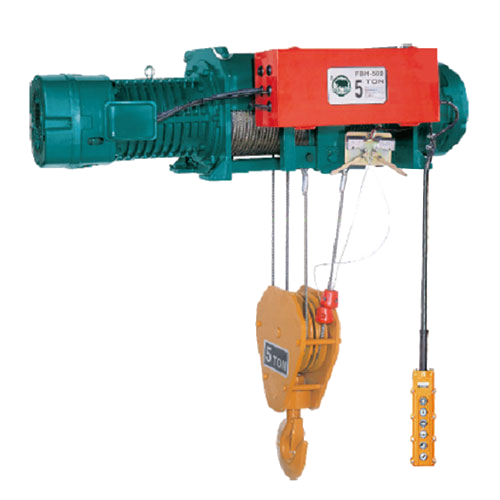

Electric wire rope hoist BLACKBEAR SB-SC-SE Series (AC Brake)

Electric wire rope hoist BLACKBEAR SB-SC-SE Series (AC Brake) Electric wire rope hoist BLACKBEAR SADDLE TROLLEY AC Brake Electric wire rope hoist high quality products imported from Taiwan with AC Motor brack , is a SADDLE TROLLEY type,has capacity load 5-20 Tons with single speed and Dual speed,(Up-Down-Left-Right)

Category Tags , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Electric wire rope hoist BLACKBEAR SB-SC-SE AC Brake

Electric wire rope hoist BLACKBEAR SADDLE TROLLEY AC Brake SB-SC-SE Series

Electric wire rope hoist BLACKBEAR SB-SC-SE AC Brake Electric wire rope hoist BLACKBEAR SADDLE TROLLEY AC Brake use AC Electromagnetic safety brake.Besides low noise basic request, it’s with big brake torque, long life span.Its features come from multi-coil technology instead of the single structure,as well as wear-resistant rotor capability to achieve the torque requirements for users.

FEATURES

  • AC Brake  New design of AC brake electromagnetic motor disc system works precisely and synchronously with motors.
  • MOTOR Highly efficiently squirrel cage motors of 40%ED rate (40/ 20% for dual speed) are quiet. small volume, light weight and suitable for most applications.
  • Contro box IP-20 control box is applied: Higher IP degree is available upon request.
  • Gear box  Hoist reduction gear system are made of alloy steel with surface harden treatment for long lasting life span.
  • Wire rope According to JIS no.6 standard for wire rope applications, we use 6×37-A and IWRC 6xFi (29) -B wire rope which features flexible and long life span.
  • Sheave The proper diameter of sheave ensures the operation and life span of wire rope.
  • Hook  Hot forged hooks with thrust bearing are enable to be swiveled 360°



DIMENSIONS DATA BLACKBEAR SB-SC-SE AC Brake

SB.SC.SE 2



SPECIFICATIONS DATA BLACKBEAR SB-SC-SE AC Brake

Model Capacity
(ton)		 Lift
(m)		 Hoisting Traversing Wire Rope Approximate Dimension (mm) Approximate
Weight
(kg)
Speed(m/min) Motor
kw pole		 ED% Speed(m/min) Motor
kw pole		 ED% Ø mm R/F H A B C D E F G K
60Hz  50Hz Single  Dual 60Hz  50Hz Single  Dual Single  Dual Single  Dual
SBH-500 5 6 7.3 6.1 7.5
4 P		 40 40/20 21 18 7.5
4 P		 40 40/20 Ø 10 2/4 750 553 776 946 850 150 545 690 988 45 680
SBHD-500 9 7.3/2.4 6.1/2.0 7.5/2.5
4/12P		 21/7 18/6 0.75/0.25
4/12P		 603 826 996 850 690
12 743 966 1136 1150 720
SBH-750 7.5 6 7.3 6.1 11
4p		 40 40/20 20 17 1.1
4 P		 40 40/20 Ø 14 2/4 1200 608 921 1000 850 160 550 790 1095 60 880
SBHD-750 9 7.3/2.4 6.1/2.0 11/3.7
4/1 2P		 20/6 17/6 1.1/0.37
4/12P		 743 1056 1135 1150 1050
12 833 1146 1225 1300 1250
SBL-1000 10 6 5.0 4.2 11
4p		 40 40/20 15 13 1.1
4 P		 40 40/20 Ø 16 1/4 1300 605 903 982 850 160 570 970 1280 60 1070
SBLD-1000 9 5.0/1.7 4.2/1.4 11/3.7
4/1 2P		 15/5 13/4 1.1/0.37
4/12P		 673 971 1050 1150 1080
12 773 1071 1150 1150 1210
SCAH-1000D 6 5.1 4.3 11
4p		 40 40/20 17 14 1.1
4 P		 40 40/20 Ø 16 2/4 1500 702 903 982 850 180 580 920 1250 60 1290
SCAHD-1000D 9 5.1/1.7 4.3/1.4 11/3.7
4/1 2P		 17/6 14/5 1.1/0.37
4/12P		 817 1018 1097 1150 1430
12 914 1115 1194 1300 1590
 SEAL-1500 15 8 4.4 3.7 13
4p		 40 40/20 18 15 1.5
4 P		 40 40/20 Ø 20 1/4 1550 690 1040 1040 1150 200 715 1160 1500 60 1550
SEALD-1500 10 4.4/1.5 3.7/1 13/4.3
4/1 2P		 18/6 15/5 1.5/0.5
4/12P		 735 1086 1086 1150 1765
12 801 1152 1152 1300 2000
SCAL-2000 20 8 3.2 2.7 13
4p		 40 40/20 18 15 1.5
4 P		 40 40/20 Ø 20 1/4 1700 760 1040 1040 1150 200 715 1160 1500 60 1950
SCALD-2000 10 3.2/1.1 2.7/0.9 13/4.3
4/1 2P		 18/6 15/5 1.5/0.5
4/12P		 806 1086 1086 1150 2080
12 872 1152 1152 1300 2230
