SB-SC-SE Series

Electric wire rope hoist BLACKBEAR SB-SC-SE Series (DC Brake)

Electric wire rope hoist BLACKBEAR SB-SC-SE Series (DC Brake) Electric wire rope hoist BLACKBEAR SADDLE TROLLEY DC Brake Electric wire rope hoist high quality products imported from Taiwan with DC Motor brack , is a SADDLE TROLLEY type,has capacity load 5-20 Tons with single speed and Dual speed,(Up-Down-Left-Right)

Category Tags , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Electric wire rope hoist BLACKBEAR SB-SC-SE Series

Electric wire rope hoist BLACKBEAR SADDLE TROLLEY DC Brake SB-SC-SE Series

Electric wire rope hoist BLACKBEAR SB-SC-SE Series Electric wire rope hoist BLACKBEAR SADDLE TROLLEY DC Brake use INTORQ (Lenze Germany) DC Electromagnetic safety brake.Besides low noise basic request, it’s with big brake torque, long life span.Its features come from multi-coil technology instead of the single structure,as well as wear-resistant rotor capability to achieve the torque requirements for users.

FEATURE

  1. DC Brake New design of DC brake electromagnetic motor disc system works precisely and synchronously with motors, and with a rectifier for trouble free
  2. MOTOR
    Highly efficiently squirrel cage motors of 40%ED rate (40/ 20% for dual speed) are quiet, small volume , light weight and suitable for most applications.
  3.  Control box IP-20 control box is applied; Higher IP degree is available upon request.
  4. Gear box Hoist reduction gear system are made of alloy steel with surface harden treatment for long lasting life span.
  5. Wire rope According to JIS no.6 standard for wire rope applications, we use 6×37-A and IWRC 6xFi (29) -B wire rope which features flexible and long life span.
  6. SheaveThe proper diameter of sheave ensures the operation and life span of wire rope.
  7. Hook Hot forged hooks with thrust bearing are enable to be swiveled 360°

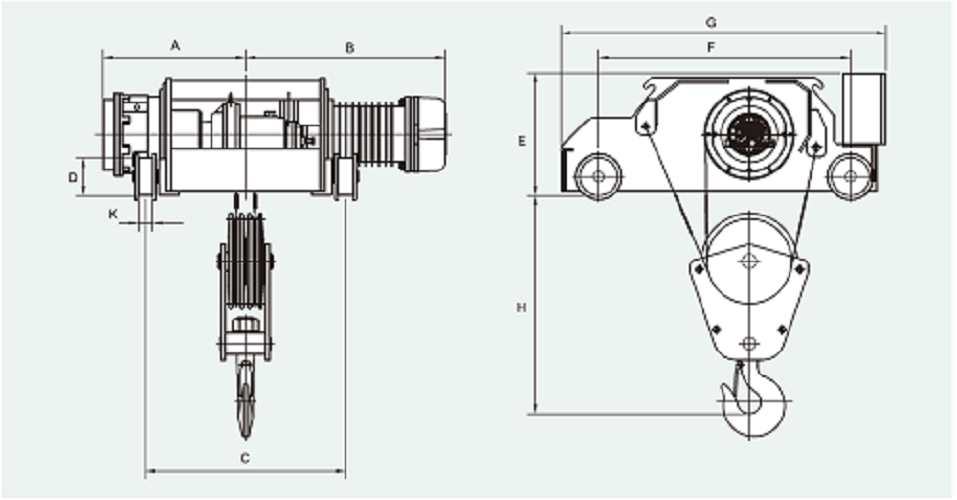

SB.SC .SE SERIES 2



SPECIFICATIONS AND DIMENSIONS DATA BLACKBEAR SB-SC-SE Series

Model Capacity
(ton)		 Lift
(m)		 Hoisting Traversing Wire Rope Approximate Dimension (mm)
Speed(m/min) Motor
kw pole		 ED% Speed(m/min) Motor
kw pole		 ED% Ø mm R/F H A B C D E F G K
60Hz  50Hz Single  Dual 60Hz  50Hz Single  Dual Single  Dual Single  Dual
SBH-500 DB 5 6 7.3 6.1 7.5
4 P		 40 40/20 21 18 7.5
4 P		 40 40/20 Ø 10 2/4 750 553 875 850 150 545 690 988 45
SBHD-500DB 9 7.3/2.4 6.1/2.0 7.5/2.5
4/12P		 21/7 18/6 7.5/2.5
4/12P		 603 925 850
12 743 1065 1150
SBH-750DB 7.5 6 7.3 6.1 11
4p		 40 40/20 20 17 1.1
4 P		 40 40/20 Ø 14 2/4 1200 608 929 850 160 550 790 1095 60
SBHD-750DB 9 7.3/2.4 6.1/2.0 11/3.7
4/1 2P		 20/6 17/6 1.1/0.37
4P/12		 743 1064 1150
12 833 1154 1300
SBL-1000DB 10 6 5.0 4.2 11
4p		 40 40/20 15 13 1.1
4 P		 40 40/20 Ø 16 1/4 1300 605 911 850 160 570 970 1280 60
SBLD-1000DB 9 5.0/1.7 4.2/1.4 11/3.7
4/1 2P		 15/5 13/4 1.1/0.37
4P/12		 673 979 1150
12 773 1079 1150
SCAH-1000DB 6 5.1 4.3 11
4p		 40 40/20 17 14 1.1
4 P		 40 40/20 Ø 16 2/4 1500 702 911 850 180 580 920 1250 60
SCAHD-1000DB 9 5.1/1.7 4.3/1.4 11/3.7
4/1 2P		 17/6 14/5 1.1/0.37
4P/12		 817 1026 1150
12 914 1123 1300
 SEAL-1500 DB 15 8 4.4 3.7 13
4p		 40 40/20 18 15 1.5
4 P		 40 40/20 Ø 20 1/4 1550 690 969 1150 200 715 1160 1500 60
SEALD-1500DB 10 4.4/1.5 3.7/1 13/4.9
4/1 2P		 18/6 15/5 1.5/0.5
4P/12		 735 1014 1150
12 801 1080 1130
SCAL-2000DB 20 8 3.2 2.7 13
4p		 40 40/20 18 15 1.5
4 P		 40 40/20 Ø 20 2/4 1700 760 969 1150 200 715 1160 1500 60
SCALD-2000DB 10 3.2/1.1 2.7/0.9 13/4.9
4/1 2P		 18/6 15/5 1.5/0.5
4P/12		 806 1014 1150
12 872 1080 1130
  1. R/F=Reeving/falling numbers.
  2. .Dual speed model under green shadow.
  3. Traversing pinion 5 ton M3.5×23,7.5 ton M3.5x20t, 10-20 ton M3.5x23t.
  4. Traversing motor standard supply, 50 Hz or 60Hz all used 4 pole, or please specify. 5. Traversing motor: used reducing gear motor.
