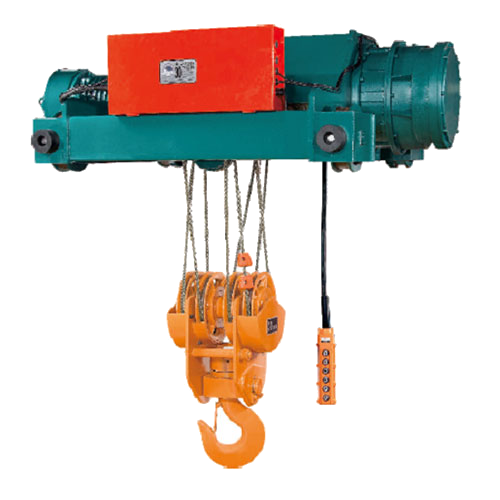

Electric wire rope hoist BLACKBEAR SF Series (AC Brake)

BLACKBEAR SF Series (AC Brake) Electric wire rope hoist BLACKBEAR SADDLE TROLLEY AC Brake Electric wire rope hoist high quality products imported from Taiwan with AC Motor brack , is a SADDLE TROLLEY type,has capacity load 15-30 Tons with single speed and Dual speed,(Up-Down-Left-Right)

Category Tags , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

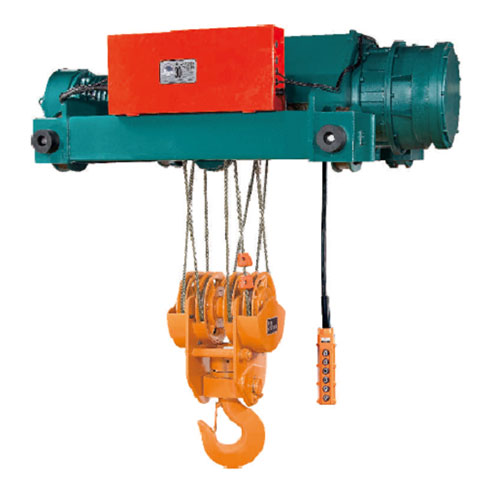

Electric wire rope hoist BLACKBEAR SF AC Brake

Electric wire rope hoist BLACKBEAR SADDLE TROLLEY AC Brake SF Series

Electric wire rope hoist BLACKBEAR SF AC Brake Electric wire rope hoist BLACKBEAR SADDLE TROLLEY AC Brake use AC Electromagnetic safety brake.Besides low noise basic request, it’s with big brake torque, long life span.Its features come from multi-coil technology instead of the single structure,as well as wear-resistant rotor capability to achieve the torque requirements for users.

FEATURES

  • AC Brake  New design of AC brake electromagnetic motor disc system works precisely and synchronously with motors.
  • MOTOR Highly efficiently squirrel cage motors of 40%ED rate (40/ 20% for dual speed) are quiet. small volume, light weight and suitable for most applications.
  • Contro box IP-20 control box is applied: Higher IP degree is available upon request.
  • Gear box Hoist reduction gear system are made of alloy steel with surface harden treatment for long lasting life span.
  • Wire rope  According to JIS no.6 standard for wire rope applications, we use 6×37-A and IWRC 6xFi (29) -B wire rope which features flexible and long life span.
  • Sheave The proper diameter of sheave ensures the operation and life span of wire rope.
  • Hook Hot forged hooks with thrust bearing are enable to be swiveled 360°

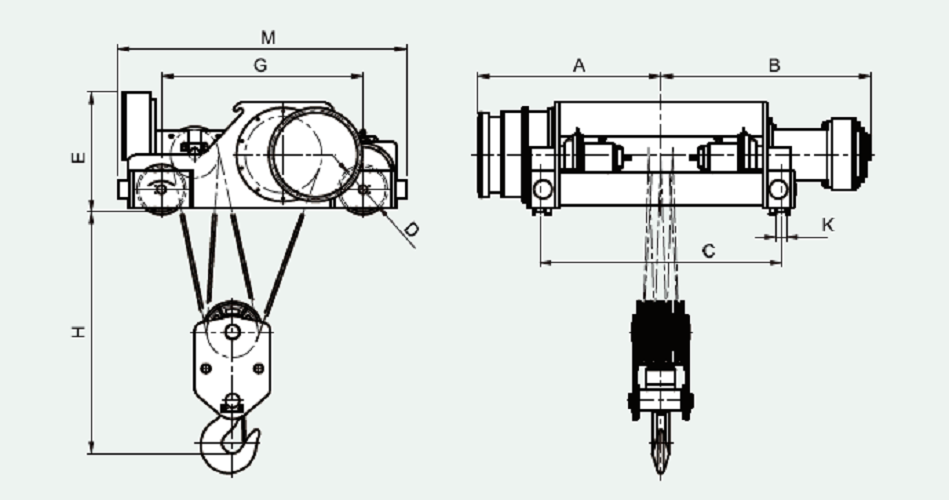

DIMENSIONS DATA BLACKBEAR SF AC Brake

SF 2



SPECIFICATIONS DATA BLACKBEAR SF AC Brake

Model Capacity
(ton)		 Lift
(m)		 Hoisting Traversing Wire Rope Approximate Dimension (mm) Approximate
Weight
(kg)
Speed(m/min) Motor
kw pole		 ED% Speed(m/min) Motor
kw pole		 ED% Ø mm R/F H A B C D E G K M
60Hz  50Hz Single  Dual 60Hz  50Hz Single  Dual Single  Dual
SFAH- 1500 15 8 6.1 5.1 18.5
4 P		 40 40/20 18 15 1.5
4 P		 40 40/20 Ø 18 2/4 1600 1007 1140 1235 1150 200 725 1150 60 1475 2115
SFAHD- 1500 10 6.1/2.0 5.1/1.7 18.5/6.2
4/12P		 18/6 15/5 1.5/0.5
4/12P		 1053 1186 1281 1400 2351
12 1093 1226 1321 1400 2528
SFAJ- 3000 30 8 3.0 2.5 18.5
4 P		 40 40/20 21 17.5 1.5×2
4 P		 40 40/20 Ø 18 2/8 1800 1113 1246 1343 1400 300 795 1336 70 1912 2500
SFAJD- 3000 10 3.0/1.02 2.5/0.8 18.5/6.2
4/12P		 21/7 17.5/5.8 1.5/0.5×2
4/12P		 1213 1346 1443 1600 2725
12 1313 1446 1543 1800 2950
