Electric wire rope hoist BLACKBEAR SK-SG Series (AC Brake)

Electric wire rope hoist BLACKBEAR SK-SG Series (AC Brake) Electric wire rope hoist BLACKBEAR SADDLE TROLLEY AC Brake Electric wire rope hoist high quality products imported from Taiwan with AC Motor brack , is a SADDLE TROLLEY type,has capacity load 2-5 Tons with single speed and Dual speed,(Up-Down-Left-Right)

Category Tags , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Electric wire rope hoist BLACKBEAR SK-SG AC Brake

Electric wire rope hoist BLACKBEAR SADDLE TROLLEY AC Brake SK-SG Series

Electric wire rope hoist BLACKBEAR SK-SG AC Brake Electric wire rope hoist BLACKBEAR SADDLE TROLLEY AC Brake use AC Electromagnetic safety brake.Besides low noise basic request, it’s with big brake torque, long life span.Its features come from multi-coil technology instead of the single structure,as well as wear-resistant rotor capability to achieve the torque requirements for users.

FEATURES

  • AC Brake New design of AC brake electromagnetic motor disc system works precisely and synchronously with motors.
  • MOTOR Highly efficiently squirrel cage motors of 40%ED rate (40/ 20% for dual speed) are quiet. small volume, light weight and suitable for most applications.
  • Control box IP-20 control box is applied: Higher IP degree is available upon request.
  •  Gear box Hoist reduction gear system are made of alloy steel with surface harden treatment for long lasting life span.
  • Wire rope According to JIS no.6 standard for wire rope applications, we use 6×37-A and IWRC 6xFi (29) -B wire rope which features flexible and long life span.
  •  Sheave The proper diameter of sheave ensures the operation and life span of wire rope.
  •  Hook Hot forged hooks with thrust bearing are enable to be swiveled 360°

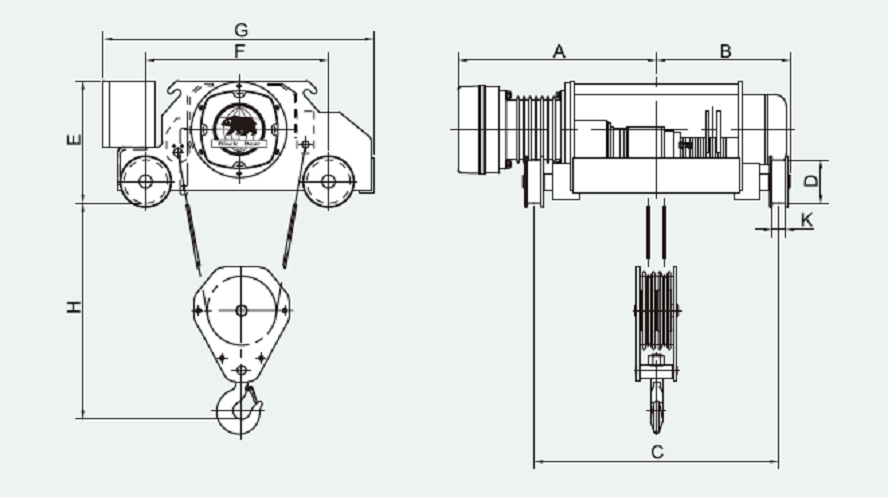

DIMENSIONS DATA

SK.SG 2



SPECIFICATIONS DATA

Model Capacity
(ton)		 Lift
(m)		 Hoisting Traversing Wire Rope Approximate Dimension (mm) Appoximate
Weight
(kg)
Speed(m/min) Motor
kw pole		 ED% Speed(m/min) Motor
kw pole		 ED% Ø mm R/F H A B C D E F G K
60Hz  50Hz Single  Dual 60Hz  50Hz Single  Dual Single  Dual Single  Dual
SKM-200D 2 6 8 6.7 3
4 P		 40 40/20 20 17 0.25
4 P		 40 40/20 Ø 10 1/2 600 680 680 401 600 120 390 460 615 923 40 420
SKMD-200 9 8/2.7 6.7/2.2 3/1
4/12P		 20/6 17/6 0.25/0.08
4/12P		 680 680 401 600 440
12 732 732 462 850 450
SKH-200 2 6 8 6.7 3
4p		 40 40/20 20 17 0.25
4 P		 40 40/20 Ø 8 2/4 600 701 701 462 850 120 390 460 615 923 40 450
SKHD-200 9 8/2.7 6.7/2.2 11/3.7
4/1 2P		 20/6 17/6 0.25/0.08
4/12P		 788 788 509 850 470
12 875 875 612 1150 490
SKL-300 3 6 4.4 3.7 3
4p		 40 40/20 21 18 0.4
4 P		 40 40/20 Ø 10 1/4 650 729 729 465 850 150 425 495 725 1030 45 500
SKLD-300 9 4.4/1.5 3.7/1.2 3/1
4/1 2P		 21/7 18/6 0.14/0.13
4/12P		 802 802 523 850 530
12 919 919 640 1150 560
SGM-300 3 6 8 6.7 5
4p		 40 40/20 21 18 0.4
4 P		 40 40/20 Ø 12 1/2 750 702 814 477 850 150 495 495 660 968 45 490
SGMD-300 9 8/2.7 6.7/2.2 5/1.7
4/1 2P		 21/7 18/6 0.14/0.13
4/12P		 702 814 477 850 500
12 804 916 579 850 510
SGH-300 3 6 8 6.7 5
4p		 40 40/20 21 18 0.4
4 P		 40 40/20 Ø 10 2/4 750 754 866 529 850 150 495 495 635 940 45 520
SGHD-300 9 8/2.7 6.7/2.2 5/1.7
4/1 2P		 21/7 18/6 0.14/0.13
4/12P		 827 939 602 850 580
12 944 1056 719 1150 610
SGL-500 5 6 4.4 3.7 5
4p		 40 40/20 21 18 0.75
4 P		 40 40/20 Ø 10 1/4 700 754 866 529 850 150 495 545 725 1030 45 570
SGLD-500 9 4.4/1.5 3.7/1.2 5/1.7
4/1 2P		 21/7 18/6 0.75/0.25
4/12P		 827 939 602 850 590
12 944 1056 719 1150 630
