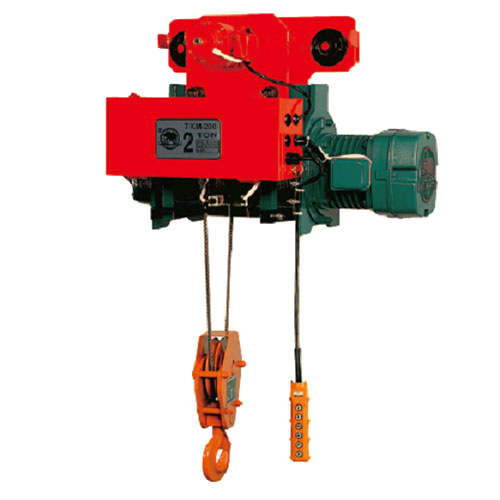

Electric wire rope hoist BLACKBEAR TP-TK-TG Series (AC Brake)

Electric wire rope hoist BLACKBEAR TP-TK-TG Series (AC Brake) Electric wire rope hoist BLACKBEAR MONORAIL TROLLEY AC Brake Electric wire rope hoist high quality products imported from Taiwan with AC Motor brack , is a Monorail Trolley type,has capacity load 1-5 Tons with single speed and Dual speed,(Up-Down-Left-Right)

Category Tags , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

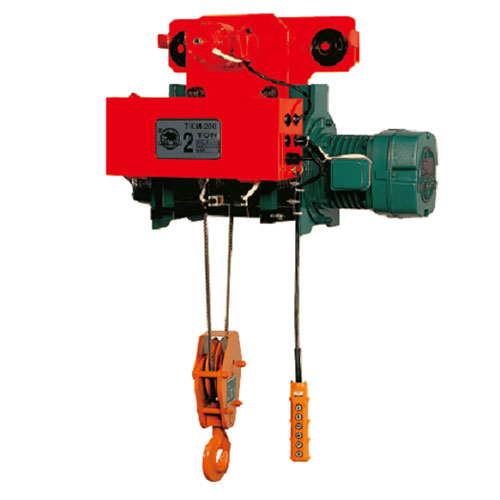

Electric wire rope hoist BLACKBEAR TP-TK-TG AC Brake

Electric wire rope hoist BLACKBEAR MONORAIL TROLLEY AC Brake TP-TK-TG Series

Electric wire rope hoist BLACKBEAR TP-TK-TG AC Brake Electric wire rope hoist BLACKBEAR MONORAIL TROLLEY AC Brake use AC Electromagnetic safety brake.Besides low noise basic request, it’s with big brake torque, long life span.Its features come from multi-coil technology instead of the single structure,as well as wear-resistant rotor capability to achieve the torque requirements for users.

FEATURES

  • AC Brake New design of AC brake electromagnetic motor disc system works precisely and synchronously with motors.
  • MOTOR Highly efficiently squirrel cage motors of 40%ED rate (40/ 20% for dual speed) are quiet. small volume, light weight and suitable for most applications.
  • Control box IP-20 control box is applied: Higher IP degree is available upon request.
  •  Gear box Hoist reduction gear system are made of alloy steel with surface harden treatment for long lasting life span.
  • Wire rope According to JIS no.6 standard for wire rope applications, we use 6×37-A and IWRC 6xFi (29) -B wire rope which features flexible and long life span.
  •  Sheave The proper diameter of sheave ensures the operation and life span of wire rope.
  •  Hook Hot forged hooks with thrust bearing are enable to be swiveled 360°

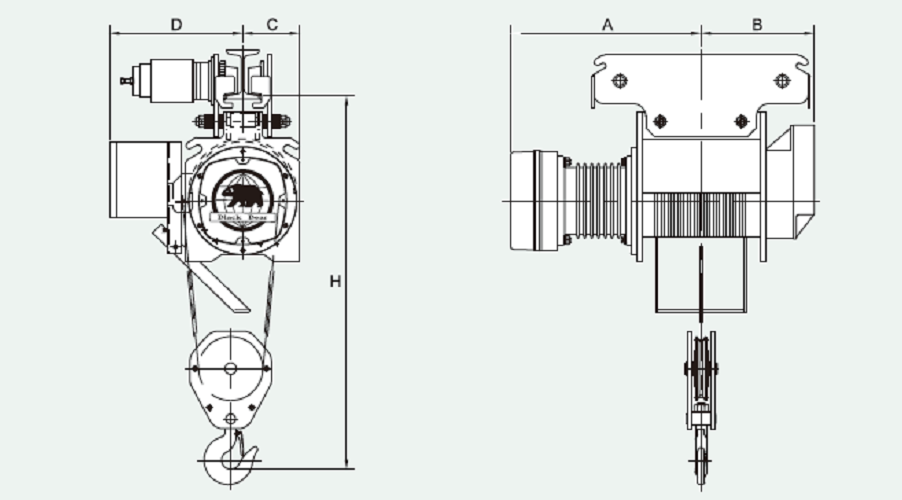

DIMENSIONS DATA  BLACKBEAR TP-TK-TG AC Brake

TP.TK.TG 2



SPECIFICATIONS DATA BLACKBEAR TP-TK-TG AC Brake

Model Capacity
(ton)		 Lift
(m)		 Hoisting Traversing Wire Rope Approximate Dimension (mm) Approximate
Weight
(kg)
Speed(m/min) Motor
kw pole		 ED% Speed(m/min) Motor
kw pole		 ED% Ø mm R/F H A B C D Adjust for Std. I-Beam
(mm)
60Hz  50Hz Single  Dual 60Hz  50Hz Single  Dual Single  Dual Single  Dual Single  Dual
TPM-100 1 6 10.8 9 2.2
4 P		 40 40/20 24 20 0.25
4 P		 40 40/20 Ø 8 1/2 1050 530 611 314 210 210 380 380 75-125 246
TPMD-100 9 10.8/3.6 9/3 2.2/0.73
4/12P		 24/8 20/6 0.25/0.08
4/12P		 580 661 364 256
12 630 711 414 266
 TKM-200 2 6 8 6.7 3
4p		 40 40/20 24 20 0.25
4 P		 40 40/20 Ø 10 1/2 1150 627 627 350 232 232 410 410 100-150 370
TKMD-200 9 8/2.7 6.7/2.2 3/1
4/1 2P		 24/8 20/6 0.25/0.08
4/12P		 680 680 403 390
12 732 732 455 410
TKH-200 2 6 4.4 6.7 3
4p		 40 40/20 24 20 0.25
4 P		 40 40/20 Ø 8 2/4 1150 701 701 422 232 232 443 443 100-150 400
 TKHD-200 9 4.4/1.5 6.7/2.2 3/1
4/1 2P		 24/8 20/6 0.25/0.08
4/12P		 788 788 509 420
12 875 875 596 440
TKL-300 3 6 8 3.7 3
4p		 40 40/20 18 15 0.6
4p		 40 40/20 Ø 10 1/4 1150 729 729 518 275 275 443 443 125-175 410
TKLD-300 9 8/2.7 3.7/1.2 3/1
4/1 2P		 18/6 15/5 0.6/0.2
4/1 2P		 802 802 523 450
12 919 919 640 490
 TGM-300 3 6 8 6.7 5
4p		 40 40/20 18 15 0.6
4p		 40 40/20 Ø 12 1/2 1200 660 772 435 185 210 430 455 125-175 410
TGMD-300 9 8/2.7 6.7/2.2 5/1.7
4/1 2P		 18/6 15/5 0.6/0.2
4/1 2P		 702 814 477 430
12 804 916 579 450
TGH-300 3 6 8 6.7 5
4p		 40 40/20 18 15 0.6
4p		 40 40/20 Ø 10 2/4 1200 754 866 529 185 210 443 468 125-175 390
TGHD-300 9 8/2.7 6.7/2.2 5/1.7
4/1 2P		 18/6 15/5 0.6/0.2
4/1 2P		 827 939 602 425
12 944 1056 719 455
TGL-500 5 6 4.4 3.7 5
4p		 40 40/20 18 15 0.6
4p		 40 40/20 Ø 10 1/4 1200 754 866 564 300 300 468 468 125-175 520
TGLD-500 9 4.4/1.5 3.7/1.2 5/1.7
4/1 2P		 18/6 15/5 0.6/0.2
4/1 2P		 827 393 602 540
12 944 1056 719 560
