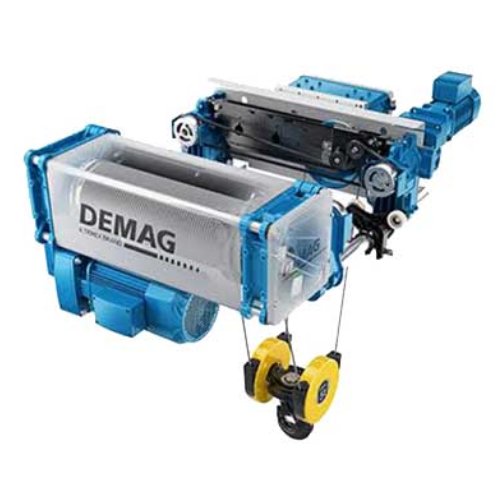

Electric Wire Rope Hoist DEMAG EK-DMR
ELECTRIC wire rope hoist Demag EK-DMR Low-Headroom Monorail series product quality control from germany the modular design of wire rope hoist either as a simple hoist unit or as past of a crane,product has five model with load capacities up to 50 tons.
Electric Wire Rope Hoist DEMAG EK-DMR
ELECTRIC wire rope hoist Demag EK-DMR Low-Headroom Monorail series
FEATURES
- C-design for compact overall dimensions and reduced approach dimensions for crane applications
- Infinitely variable cross-travel speeds for low sway and gentle positioning (optional two-stage travel speeds)
- Cross-travel inverter and braking resistor integrated in the electric enclosure to save space
- Infinitely variable flange width adjustments from 120-420mm
- Best possible traction with DualDrive and DualDrive Plus (optional)
DEMAG EK-DMR Specifications
| Range | Load capacity | Hook path | Lifting speed | Group of mechanism | ||
| (t.) | (m.) | (m./min) | ||||
| 2-stage | Stepless | ProHub* | (FEM/ISO) | |||
| DMR3 | 2/1 | |||||
| 1 | 12 20 30 | 1.4/8 | 0.32/6.4 | 9.6 | 4m/M7 | |
| 1.25 | 2/12 | 0.64/12.5 | 19 | 3m/M6 | ||
| 1.6 | 2.6/16 | 1-25 | 38 | 2m/M5 | ||
| 2 | 1.4/8 | 0.32-6.4 | 9.6 | 1Am/M4 | ||
| 4/1 | ||||||
| 2 | 6 10 15 | 0.7/4 | 0.16-3.2 | 4.8 | 4m/M7 | |
| 2.5 | 1/6 | 0.32-6.4 | 9.6 | 3m/M6 | ||
| 3.2 | 1.3/8 | 0.5-12.5 | 19 | 2m/M5 | ||
| 4 | 0.7/4 | 0.16-3.2 | 4.8 | 1Am/M4 | ||
| Range | Load capacity | Hook path | Lifting speed | Group of mechanism | ||
| (t.) | (m.) | (m./min) | ||||
| 2-stage | Stepless | ProHub* | (FEM/ISO) | |||
| DMR5 | 2/1 | |||||
| 1.6 | 12 20 30 | 1.4/8 | 0.32/6.4 | 9.6 | 4m/M7 | |
| 2 | 2/12 | 0.64-12.5 | 19 | 3m/M6 | ||
| 2.5 | 2.6/16 | 1-25 | 38 | 2m/M5 | ||
| 3.2 | 1.4/8 | 0.32-6.4 | 9.6 | 1Am/M4 | ||
| 4/2 | ||||||
| 1.6 | 9.9 16.3 | 1.4/8 | 0.32-6.4 | 9.6 | 4m/M7 | |
| 2 | 2/12 | 0.64-12.5 | 19 | 3m/M6 | ||
| 2.5 | 2.6/16 | 1-25 | 38 | 2m/M5 | ||
| 3.2 | 1.4/8 | 0.32-6.4 | 9.6 | 1Am/M4 | ||
| 4/1 | ||||||
| 3.2 | 6 10 15 | 0.7/4 | 0.16-3.2 | 4.8 | 4m/M7 | |
| 4 | 1/6 | 0.32-6.4 | 9.6 | 3m/M6 | ||
| 5 | 1.3/8 | 0.5-12.5 | 19 | 2m/M5 | ||
| 6.3 | 0.7/4 | 0.16-3.2 | 4.8 | 1Am/M4 | ||
| Range | Load capacity | Hook path | Lifting speed | Group of mechanism | ||
| (t.) | (m.) | (m./min) | ||||
| 2-stage | Stepless | ProHub* | (FEM/ISO) | |||
| DMR10 | 2/1 | |||||
| 3.2 | 12 20 30 40 | 1.4/8 | 0.32-6.4 | 9.6 | 4m/M7 | |
| 4 | 2/12 | 0.64-12.5 | 19 | 3m/M6 | ||
| 5 | 2.6/16 | 1-25 | 38 | 2m/M5 | ||
| 6.3 | 1.4/8 | 0.32-6.4 | 9.6 | 1Am/M4 | ||
| 4/2 | ||||||
| 3.2 | 5.8 11.35 18.4 25.2 | 1.4/8 | 0.32-6.4 | 9.6 | 4m/M7 | |
| 4 | 2/12 | 0.64-12.5 | 19 | 3m/M6 | ||
| 5 | 2.6/16 | 1-25 | 38 | 2m/M5 | ||
| 6.3 | 1.4/8 | 0.32-6.4 | 9.6 | 1Am/M4 | ||
| 4/1 | ||||||
| 6.3 | 6 10 15 20 | 0.7/4 | 0.16-3.2 | 4.8 | 4m/M7 | |
| 8 | 1/6 | 0.32-6.4 | 9.6 | 3m/M6 | ||
| 10 | 1.3/8 | 0.5-12.5 | 19 | 2m/M5 | ||
| 12.5 | 0.7/4 | 0.16-3.2 | 4.8 | 1Am/M4 | ||
| Range | Load capacity | Hook path | Lifting speed | Group of mechanism | ||
| (t.) | (m.) | (m./min) | ||||
| 2-stage | Stepless | ProHub* | (FEM/ISO) | |||
| DMR16 | 4/1 | |||||
| 16 | 6 10 15 20 | 0.7/4 | 0.16-3.2 | 4.8 | 1Bm/M3 | |
| 6/1 | ||||||
| 12.5 | 6.7 13.3 | 0.7/4 | 0.22-4.3 | 6.4 | 3m/M6 | |
| 16 | 0.9/5.3 | 0.32-8.3 | 12.6 | 2m/M5 | ||
| Range | Load capacity | Hook path | Lifting speed | Group of mechanism | ||
| (t.) | (m.) | (m./min) | ||||
| 2-stage | Stepless | ProHub* | (FEM/ISO) | |||
| DMR20 | 2/1 | |||||
| 6.3 | 20 30 40 54 | 1.4/8 | 4m/M7 | |||
| 8 | 2/12 | 3m/M6 | ||||
| 10 | 2.6/16 | 0.32-6.4 | 9.6 | 2m/M5 | ||
| 0.64-12.5 | 19 | |||||
| 1/6 | 0.8-16 | 24 | ||||
| 12.5 | 1.4/8 | 1Am/M4 | ||||
| 2/12 | ||||||
| 4/2 | ||||||
| 6.3 | 7.6 14.6 21.6 31.3 | 1.4/8 | 4m/M7 | |||
| 8 | 2/12 | 0.32-6.4 | 9.6 | 3m/M6 | ||
| 10 | 2.6/16 | 0.64-12.5 | 19 | 2m/M5 | ||
| 0.8-16 | 24 | |||||
| 12.5 | 1/6 | 1Am/M4 | ||||
| 1.4/8 | ||||||
| 4/2 | ||||||
| 12.5 | 10 15 20 27 | 0.7/4 | 4m/M7 | |||
| 16 | 1/6 | 3m/M6 | ||||
| 20 | 1.3/8 | 0.16-3.2 | 4.8 | 2m/M5 | ||
| 0.32-6.4 | 9.6 | |||||
| 0.5/3 | 0.4-8 | 12 | ||||
| 25 | 0.7/4 | 1Am/M4 | ||||
| 1/6 | ||||||
| 8/2 | ||||||
| 12.5 | 7.8 11.3 16.1 27.1 | 0.7/4 | 4m/M7 | |||
| 16 | 1/6 | 3m/M6 | ||||
| 20 | 1.3/8 | 0.16/3.2 | 4.8 | 2m/M5 | ||
| 0.32-6.4 | 9.6 | |||||
| 0.5/3 | 0.4-8 | 12 | ||||
| 25 | 0.7/4 | 1Am/M4 | ||||
| 1/6 | ||||||
| 6/1 | ||||||
| 20 | 6.7 10 13.3 18 | 4m/M7 | ||||
| 25 | 0.7/4 | 0.22-4.3 | 6.4 | 3m/M6 | ||
| 32 | 0.9/5.3 | 0.26-5.3 | 8 | 2m/M5 | ||
| 40 | 0.7/4 | 1Am/M4 | ||||
| 12/2 | ||||||
| 20 | 8 1.2 18 | 4m/M7 | ||||
| 25 | 0.7/4 | 0.22-4.3 | 6.4 | 3m/M6 | ||
| 32 | 0.9/5.3 | 0.26-5.3 | 8 | 2m/M5 | ||
| 40 | 0.7/4 | 1Am/M4 | ||||
| 8/1 | ||||||
| 25 | 7.5 10 13.5 21.3 | 4m/M7 | ||||
| 32 | 0.5/3 | 0.16-3.2 | 4.8 | 3m/M6 | ||
| 40 | 0.7/4 | 0.2-4 | 6 | 2m/M5 | ||
| 50 | 0.5/3 | 1Am/M4 | ||||
