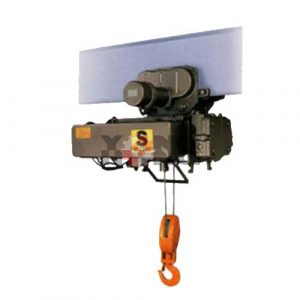

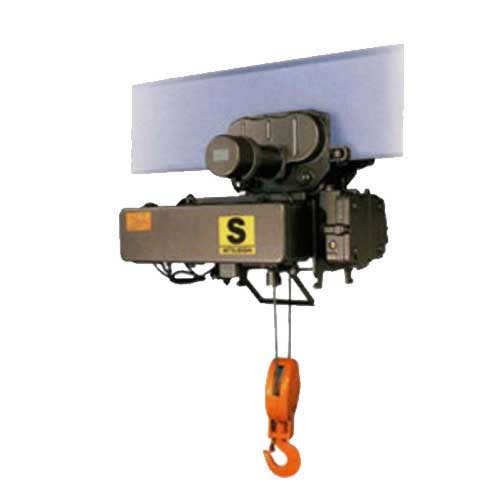

ELECTRIC wire rope hoist MITSUBISHI S Series product imported from japan are the Monorail type, Lowhead type,Doublerail type has capacity load 0.5-60 Tons,Lifting 6,8,12 m.(Up-Down-Left-Right)
| Type | Lifting Capacity | Loadlifting height (m) | Wire rope | Hoisting | Travelling | ||||||||||||||||
| Mono rail low hearoom | Double Rail | ||||||||||||||||||||
| t | Low | High | 2falls (stationary) | 4falls (Double rail low-headroom) | Ropre specifications | Speed (m/min) | motor | Speed (m/min) | motor | Speed (m/min) | motor | ||||||||||
| Output (kW) | Poles | Output (kW) | Poles | Output (kW) | Poles | ||||||||||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||||||||||
| S | 1/2 | 6 | 12 | Ø6.3 | Ø4 | 6xW(19)B Class JIS G 3525 | 11 | 13 | 1 | 1.2 | 4 | 21 | 25 | 0.22 | 0.26 | 4 | – | – | – | – | – |
| 1 | 6 | 12 | Ø8 | Ø6.3 | 2 | 2.4 | – | – | – | – | – | ||||||||||
| 2 | 6 | 12 | Ø10 | Ø8 | 6xFi (29) B Class JIS G3525 | 8.4 | 10 | 2.9 | 3.5 | 0.5 | 0.6 | – | – | – | – | – | |||||
| 2.8 | 6 | 12 | Ø12.5 | Ø9 | 4.1 | 4.9 | 21 | 25 | 0.5 | 0.6 | 4 | ||||||||||
| 3 | 6 | 12 | Ø12.5 | Ø9 | 4.4 | 5.3 | |||||||||||||||
| 5 | 8 | 12 | – | Ø11.2 | 6.7 | 8 | 6.2 | 7.5 | 0.85 | 1 | |||||||||||
| 7.5 | 8 | 12 | – | Ø14 | 5.8 | 7 | 8.3 | 10 | 12 | 15 | 15 | 18 | 0.85 | 1 | |||||||
| 10 | 8 | 12 | – | Ø16 | 5 | 6 | 10 | 12 | 6 | 1.5 | 1.8 | 0.85 | 1 | ||||||||
| 15 | 8 | 12 | – | Ø20 | 17 | 20 | 0.85×2 | 1.0×2 | 1.5 | 1.8 | |||||||||||
| 20 | – | 12 | – | Ø22.4 | 4.2 | 5 | 1.5×2 | 1.8×2 | |||||||||||||
| 30 | – | 12 | – | Ø25 | IWRC 6xFi (29) B Class JIS G3525 | 2.8 | 3.3 | – | – | – | – | – | 1.5×2 | 1.8×2 | |||||||
| 40 | 6.5 | – | – | Ø22.4 | IWRC 6xFi (29) B Class JIS G3525 | 2.1 | 2.5 | 0.85×4 | 1.0×4 | ||||||||||||
| – | 11.5 | – | |||||||||||||||||||
| 45 | – | 12.5 | – | Ø25 | IWRC 6xFi (29) B Class JIS G3525 | 1.8 | 2.2 | ||||||||||||||
| – | 19 | – | |||||||||||||||||||
