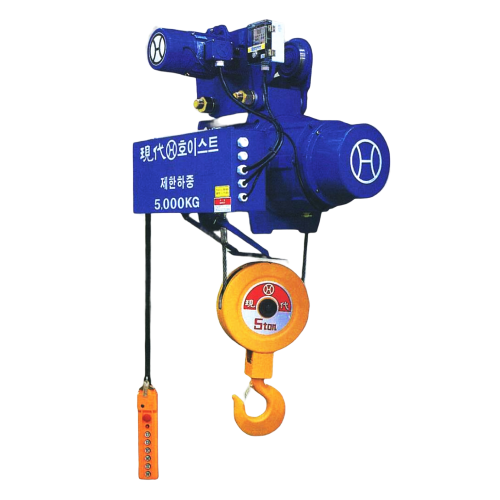

Electric Wire Rope HYUNDAI HN Series
Electric Wire Rope HYUNDAI HN Series Electric Hoist, Hyundai (Hyundai Electric Wire Rope) 4-way single track quality products imported from Korea. Available in several versions, including HN1-L6, HN1-L12, HN1-H6, HN1-H12, HN2-L6, HN2-L12, HN2-H6, HN2-H12, HN3-L6, HN3-L12, HN3-H6,. HN3-H12, HN5-L6, HN5-L12, HN5-H6, HN5-H12, HN7.5-L12, HN7.5-H12, HN10-L12, HN10-L12, HN15-H12, HN15-H12, HN20-. HN20-H12 and L12 has a lifting capacity range from 1-20 tons.
Electric Wire Rope HYUNDAI HN Series
Electric Wire Rope HYUNDAI HN Series It is 3phase squirrel cage induction motor designed under the performance standard of KSC-9621 (equivalent to ISO4301)to eudure the high operation cycle with continuous rating time(30min)and 125% rated load.There are two kinds of motors what we apply ;one is T.E.N.V(Totally Endosed Non-Ventilated) type below 13kw motor capacity and T.E.F.C(Totally Endosed Fan Cooled)type over 13 kw motor capacity.
In case of mono rail hoist,the flange width avalable to adjust I-beam(H-beam)size on the brochure with the spacer and in case of double rail hoist the trolly span adjustable to non standard size.All the wheel adopt Grease enclosed ball bearing standing hoist load condition,easy exchange for maintenance.Wheel taper approx.8 degree angle for I-beam and available to adopt H-beam as plain wheel without taper
SPECIFICATIONS DATA HYUNDAI HN Series
| Capacity (ton) | 1 | 2 | 2.8.3 | 5 | ||||||||||||||||||
| Lift Height m | 6 (12 | 6 (12) | 6 (12) | 6 (12) | ||||||||||||||||||
| Hoisting Speed (m/min) | High Speed | 50 Hz | 10 | 8.3 | 7.5 | 4.7 | ||||||||||||||||
| 60 Hz | 12 | 10 | 9 | 5.6 | ||||||||||||||||||
| Low Speed | 50 Hz | 6.7 | 5 | 3.8 | 3.5 | |||||||||||||||||
| 60 Hz | 8 | 6 | 4.5 | 4.2 | ||||||||||||||||||
| Hoisting Motor(kWxP) | High Speed | 2.2×4 | 3.7×4 | 5.5×4 | 5.5×6 | |||||||||||||||||
| Low Speed | 1.5×6 | 2.5×6 | 2.8×8 | 4.2×8 | ||||||||||||||||||
| Wire rope | Construction | 6×24 | 6×37 | 6×37 | 6×37 | |||||||||||||||||
| Dia mm xNo of rope | 8×2 | 10×2 | 12.5×2 | 16×2 | ||||||||||||||||||
| Brake | DC magnet disc | |||||||||||||||||||||
| Travesing Speed (m/min) | High Speed | 50 Hz | 20 | 20 | 20 | 20 | ||||||||||||||||
| 60 Hz | 24 | 24 | 24 | 24 | ||||||||||||||||||
| Low Speed | 50 Hz | 13.3 | 13.3 | 13.3 | 13.3 | |||||||||||||||||
| 60 Hz | 16 | 16 | 16 | 16 | ||||||||||||||||||
| Travesing Motor (kWxP) | High Speed | 0.75×4 | 0.75×4 | 0.75×4 | 0.75×4 | |||||||||||||||||
| Low Speed | 0.5×6 | 0.5×6 | 0.5×6 | 0.5×6 | ||||||||||||||||||
| Brake | DC magnet disc | |||||||||||||||||||||

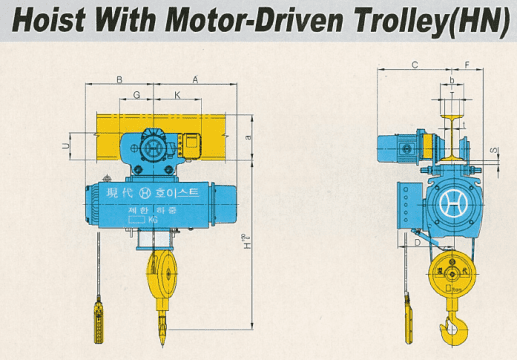

| Dimension (approx.) mm | H | 815 | 960 | 1115 | 1325 | |||||||||||||||||
| A | 464 (512) | 502 (552) | 547(597) | 632 (682) | ||||||||||||||||||
| B | 379 (531) | 431 (581) | 448 (598) | 523 (673) | ||||||||||||||||||
| D | 303 | 330 | 375 | 398 | ||||||||||||||||||
| G | 212 | 225 | 225 | 275 | ||||||||||||||||||
| K | 304 | 314 | 314 | 349 | ||||||||||||||||||
| I-beam and Spacing (mm) | axbxt | C | S | F | T | U | C | S | F | T | U | C | S | F | T | U | C | S | F | T | U | |
| 200x100x7 | 454.5 | 35 | 169 | 48 | 144 | 465 | 32 | 197 | 46 | 170 | 465 | 32 | 205 | 46 | 170 | |||||||
| 250x125x74 | 467 | 33 | 169 | 73 | 146 | 478 | 30 | 197 | 71 | 172 | 478 | 30 | 205 | 71 | 172 | 483 | 40 | 240 | 60 | 216 | ||
| 300x150x10 | 479.5 | 27 | 169 | 96 | 152 | 490 | 24 | 197 | 96 | 178 | 490 | 24 | 205 | 96 | 178 | 496 | 34 | 240 | 85 | 222 | ||
| 450x175x13 | – | – | – | – | – | – | – | – | – | – | 508 | 26 | 240 | 110 | 230 | |||||||
| Min.radius of curvature (m) | 1.5 | 1.8 | 1.8 | 2.3 | ||||||||||||||||||
| Weight (approx.) kg | 212 (228) | 284 (308) | 372 (405) | 586 (630) | ||||||||||||||||||
| Capacity (ton) | 7.5 | 10 | 15 | 20 | ||||||||||||||||||
| Lift Height m | 12 | 12 | 12 | 12 | ||||||||||||||||||
| Hoisting Speed (m/min) | High Speed | 50 Hz | 3.2 | 5 | 3.8 | 3.5 | ||||||||||||||||
| 60 Hz | 3.8 | 6 | 4.5 | 4.2 | ||||||||||||||||||
| Low Speed | 50 Hz | 2.4 | 3.8 | 2.5 | 2.3 | |||||||||||||||||
| 60 Hz | 2.9 | 454 | 3 | 2.8 | ||||||||||||||||||
| Hoisting Motor(kWxP) | High Speed | 5.5×6 | 13×6 | 13×8 | 17×8 | |||||||||||||||||
| Low Speed | 4.2×8 | 9×8 | 8.5×12 | 11.5×12 | ||||||||||||||||||
| Wire rope | Construction | 6×37 | 6xFi (25) | 6xFi (25) | 6×37 | |||||||||||||||||
| Dia mm xNo of rope | 14×4 | 14×4 | 18×4 | 22.4×4 | ||||||||||||||||||
| Brake | DC magnet disc | |||||||||||||||||||||
| Travesing Speed (m/min) | High Speed | 50 Hz | 20 | 13.3 | 12.5 | 12.5 | ||||||||||||||||
| 60 Hz | 224 | 16 | 15 | 15 | ||||||||||||||||||
| Low Speed | 50 Hz | 13.3 | 8.3 | 8.3 | 8.3 | |||||||||||||||||
| 60 Hz | 16 | 10 | 10 | 10 | ||||||||||||||||||
| Travesing Motor (kWxP) | High Speed | 0.75 x 4 (Unit) | 0.75 x 4 (Unit) | 1.5x4x2 | 1.5x4x2 | |||||||||||||||||
| Low Speed | 0.5 x6 (2 Unit) | 0.5 x6 (2 Unit) | 1x6x2 | 1x6x2 | ||||||||||||||||||
| Brake | DC magnet disc | |||||||||||||||||||||
| Dimension (approx.) mm | H | 1460 | 1520 | 1875 | 2115 | |||||||||||||||||
| A | 961 | 1000 | 1076 | 1180 | ||||||||||||||||||
| B | 850 | 953 | 1128 | 1185 | ||||||||||||||||||
| D | 521 | 550 | 618 | 648 | ||||||||||||||||||
| G | 800 | 670 | 700 | 730 | ||||||||||||||||||
| K | 349 | 349 | 403.5 | 403.5 | ||||||||||||||||||
| J | 275 | 275 | 297.5 | 297.5 | ||||||||||||||||||
| I-beam and Spacing (mm) | axbxt | C | S | F | T | U | C | S | F | T | U | C | S | F | T | U | C | S | F | T | U | |
| 300x150x10 | 495.5 | 34 | 283 | 85 | 222 | 499 | 34 | 345 | 64.5 | 222 | ||||||||||||
| 450x175x13 | 508 | 26 | 283 | 110 | 230 | 511 | 26 | 345 | 89.5 | 230 | 606 | 19 | 400 | 75 | 249 | 606 | 19 | 440 | 75 | 249 | ||
| 600x190x13 | 615 | 20 | 400 | 90 | 248 | 615 | 20 | 440 | 90 | 248 | ||||||||||||
| Min.radius of curvature (m) | For straightm rails only | |||||||||||||||||||||
| Weight (approx.) kg | 1050 | 1345 | 2030 | 2700 | ||||||||||||||||||
