Electric Wire Rope KAMIUCHI R Series

Name: Electric Wire Rope KAMIUCHI R Series - บริษัท ย่งฮง (ประเทศไทย) จำกัด
Brand: KAMIUCHI

KAMIUCHI R Series hoist is self-cooling type. Motor with self-insulation New model with high efficiency High torque and durability that is superior to quality products from Japan.

Category Electric Wire Rope

Electric Wire Rope KAMIUCHI R Series

Electric Wire Rope KAMIUCHI R Series, high quality electric wire rope hoist imported from Japan.

The motor is on the outside, making it easy to wiring and maintain
The hoist is made of materials that are excellent heat resistant.
Torque and initial value With sufficient allowance
motor with fins Which helps to
release the temperature well
Low noise motor

Ordinary Type • Motor trolley hoist

กำลัง การยก	รุ่น	ระยะยก (m.)	Hoist							Trolley
			ความเร็วในการยก m/min		มอเตอร์รอก		กระแสไฟฟ้า (A)			ความเร็วขาแขวน m/min		มอเตอร์		กระแสไฟฟ้า (A)
			50 Hz	60Hz	kW	Pole	200V 50Hz	200V 60 Hz	220V 60 Hz	50 Hz	60Hz	kW	Pole	200V 50Hz	200V 60 Hz	220V 60 Hz
500kg	RMT-1/2CNN	6	0.17 (10)	0.20 (12)	1.5	4	7	6.6	6.6	0.35 (21)	0.42 (25)	0.2	4	1.24	1.09	1.09
500kg	RMT-1/2CHNN	12	0.17 (10)	0.20 (12)	1.5	4	7	6.6	6.6	0.35 (21)	0.42 (25)	0.2	4	1.24	1.09	1.09
1t	RMT-1CNN	6	0.17 (10)	0.20 (12)	2.6	4	11.5	11.5	10.5	0.35 (21)	0.42 (25)	0.2	4	1.24	1.09	1.09
1t	RMT-1CHNN	12	0.17 (10)	0.20 (12)	2.6	4	11.5	11.5	10.5	0.35 (21)	0.42 (25)	0.2	4	1.24	1.09	1.09
2t	RMT-2CNN	6	0.13 (7.5)	0.15 (9)	3.7	4	16	16	15	0.35 (21)	0.42 (25)	0.4	4	2.35	2.05	2.02
2t	RMT-2CHNN	12	0.13 (7.5)	0.15 (9)	3.7	4	16	16	15	0.35 (21)	0.42 (25)	0.4	4	2.35	2.05	2.02
2.8 t	RMT-2.8CNN	6	0.13 (7.5)	0.15 (9)	5.3	4	24	24	23	0.35 (21)	0.42 (25)	0.4	4	2.35	2.05	2.02
2.8 t	RMT-2.8CHNN	12	0.13 (7.5)	0.15 (9)	5.3	4	24	24	23	0.35 (21)	0.42 (25)	0.4	4	2.35	2.05	2.02
3t	RMT-3CNN	6	0.13 (7.5)	0.15 (9)	5.5	4	24	24	23	0.35 (21)	0.42 (25)	0.4	4	2.35	2.05	2.02
3t	RMT-3CHNN	12	0.13 (7.5)	0.15 (9)	5.5	4	24	24	23	0.35 (21)	0.42 (25)	0.4	4	2.35	2.05	2.02
5t	RMT-5CNN	6	0.12 (7)	0.14 (8.4)	9	4	34	34	32	0.35 (21)	0.42 (25)	0.75	4	3.88	3.43	3.35
5t	RMT-5CHNN	12	0.12 (7)	0.14 (8.4)	9	4	34	34	32	0.35 (21)	0.42 (25)	0.75	4	3.88	3.43	3.35
7.5t	RMT-7.5CNN	6	0.083 (5)	0.10 (6)	11	6	48	48	46	0.35 (21)	0.42 (25	2x0.4	4	2x2.35	2x2.05	2x2.02
7.5t	RMT-7.5CHNN	12	0.083 (5)	0.10 (6)	11	6	48	48	46	0.35 (21)	0.42 (25	2x0.4	4	2x2.35	2x2.05	2x2.02
10t	RMT-10CNN	6	0.075 (4.5)	0.092 (5.5)	11	6	48	48	46	0.31 (18.5)	0.37 (22)	2x0.4	4	2x2.35	2x2.05	2x2.02
10t	RMT-10CHNN	12	0.075 (4.5)	0.092 (5.5)	11	6	48	48	46	0.31 (18.5)	0.37 (22)	2x0.4	4	2x2.35	2x2.05	2x2.02
15t	RMT-15CNN	6	0.075 (4.5)	0.092 (5.5)	18.5	4	68	68	64	0.31 (18.5)	0.37 (22)	2x0.75	4	2x3.88	2x3.43	2x3.35
15t	RMT-15CHNN	12	0.075 (4.5)	0.092 (5.5)	18.5	4	68	68	64	0.31 (18.5)	0.37 (22)	2x0.75	4	2x3.88	2x3.43	2x3.35

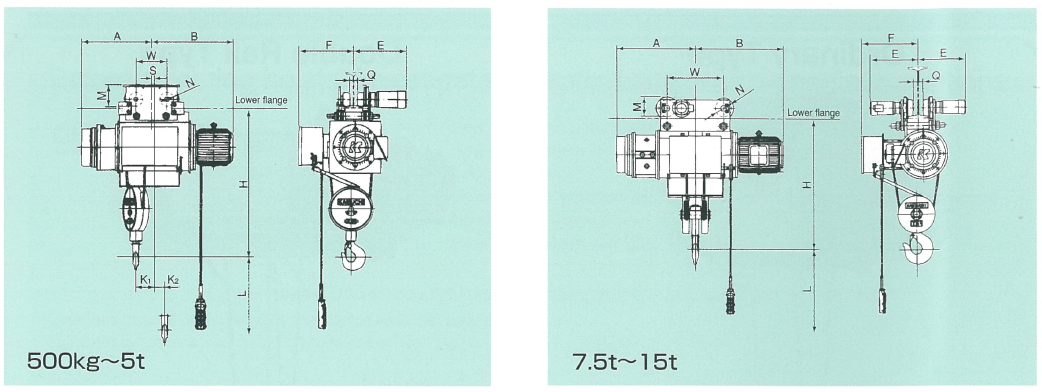

ความยาวสลิง			มิติ (mm)													น้ำหนัก (kg)	Min Radius	Standard I Beam width (mm)
Falls	Construction	Dia mm	มิติ (mm)
Falls	Construction	Dia mm	L	H	A	B	E	F	K1	K2	W	M	N	Q	S
2	6XW (19)	5	6000	680	335	325	355	330	40	40	190	130	Ø80	66	0	140	4mR	125
2	6XW (19)	5	12000	680	405	395	355	330	75	70	190	130	Ø80	66	0	160
2	6XFi(29)	8	6000	750	370	415	355	330	50	50	190	130	Ø80	66	0	170
2		8	12000	750	445	540	355	330	125	75	190	130	Ø80	66	25	190
2		10	6000	920	430	420	390	365	50	45	230	155	Ø100	50	0	310	3mR
2		10	12000	920	500	530	390	365	100	75	230	155	Ø100	50	20	360
2		12.5	6000	1080	470	465	390	415	55	50	230	155	Ø100	52	20	370
2		12.5	12000	1080	560	555	390	415	105	90	230	155	Ø100	50	20	420
2		12.5	6000	1080	470	465	390	415	55	50	230	155	Ø100	50	0	370
2		12.5	12000	1080	560	555	390	415	105	90	230	155	Ø100	50	0	420
2		16	6000	1300	560	60	495	475	65	50	280	180	Ø130	74	-	650	4.5mR	150
2		16	12000	1300	660	700	495	475	120	100	280	180	Ø130	74		690	4.5mR	150
4		14	6000	1210	710	800	430	550	-	-	500	176	Ø150	73	-	800	Straight track	175
4		14	12000	1210	910	1000	430	550	-	-	500	176	Ø150	73	-	900	Straight track
4		16	6000	1430	780	785	440	690	-	-	450	176	Ø150	81	-	1300	Straight track
4		16	12000	1430	955	960	440	690	-	-	450	176	Ø150	81	-	1450	Straight track
4		20	6000	1650	935	875	535	750	-	-	600	224	Ø200	72	-	2000	Straight track
4		20	12000	1650	1135	1075	535	750	-	-	600	224	Ø200	72	-	2150	Straight track

Double Rail Type • Motor trolley hoist

กำลัง การยก	รุ่น	ยกสูง (m.)	Hoist							Trolley
			ความเร็วในการยก(m/s) m/min		มอเตอร์		กระแสไฟฟ้า (A)			ความเร็วขาแขวน (m/s) m/min		มอเตอร์		กระแสไฟฟ้า (A)
			50 Hz	60Hz	kW	Pole	200V 50Hz	200V 60 Hz	220V 60 Hz	50 Hz	60Hz	kW	Pole	200V 50Hz	200V 60 Hz	220V 60 Hz
2.8t	RMT-2.8CDNN	6	0.13 (7.5)	0.15 (9)	5.3	4	24	24	23	0.35 (21)	0.42 (25)	0.4	1	2.35	2.05	2.02
2.8t	RMT-2.8CDHNN	12	0.13 (7.5)	0.15 (9)	5.3	4	24	24	23	0.35 (21)	0.42 (25)	0.4	1	2.35	2.05	2.02
3t	RMT-3CDNN	6	0.13 (7.5)	0.15 (9)	5.5	4	24	24	23	0.35 (21)	0.42 (25)	0.4	4	2.35	2.05	2.02
3t	RMT-3CDHNN	12	0.13 (7.5)	0.15 (9)	5.5	4	24	24	23	0.35 (21)	0.42 (25)	0.4	4	2.35	2.05	2.02
5t	RMT-5CDNN	6	0.12 (7)	0.14 (8.4)	9	4	34	34	32	0.35 (21)	0.42 (25)	0.75	4	3.88	3.43	3.35
5t	RMT-5CDHNN	12	0.12 (7)	0.14 (8.4)	9	4	34	34	32	0.35 (21)	0.42 (25)	0.75	4	3.88	3.43	3.35
7.5t	RMT-7.5CDNN	6	0.083 (5)	0.10 (*6)	11	6	48	48	46	0.35 (21)	0.42 (25)	0.75	4	3.88	3.43	3.35
7.5t	RMT-7.5CDHNN	12	0.083 (5)	0.10 (*6)	11	6	48	48	46	0.35 (21)	0.42 (25)	0.75	4	3.88	3.43	3.35
10t	RMT-10CDNN	6	0.075 (4.5)	0.092 (5.5)	11	6	48	48	46	0.31 (18.5)	0.37 (22)	0.75	4	3.88	3.43	3.35
10t	RMT-10CDHNN	12	0.075 (4.5)	0.092 (5.5)	11	6	48	48	46	0.31 (18.5)	0.37 (22)	0.75	4	3.88	3.43	3.35
15t	RMT-15CDNN	6	0.075 (4.5)	0.092 (5.5)	18.5	4	68	68	64	0.31 (18.5)	0.37 (22)	1.5	4	6.97	6.29	6
15t	RMT-15CDHNN	12	0.075 (4.5)	0.092 (5.5)	18.5	4	68	68	64	0.31 (18.5)	0.37 (22)	1.5	4	6.97	6.29	6
20t	RMT-20CDNN	6	0.075 (4.5)	0.092 (5.5)	22	4	86	8	82	0.31 (18.5)	0.37 (22)	1.5	4	6.97	6.29	6
20t	RMT-20CDHNN	12	0.075 (4.5)	0.092 (5.5)	22	4	86	8	82	0.31 (18.5)	0.37 (22)	1.5	4	6.97	6.29	6
30t	RMT-30CDNN	6	0.037 (2.2)	0.045 (2.7)	18.5	4	68	68	64	0.31 (18.5)	0.37 (22)	2×1.5	4	2×6.97	2×6.29	2×6
30t	RMT-30CDHNN	12	0.037 (2.2)	0.045 (2.7)	18.5	4	68	68	64	0.31 (18.5)	0.37 (22)	2×1.5	4	2×6.97	2×6.29	2×6

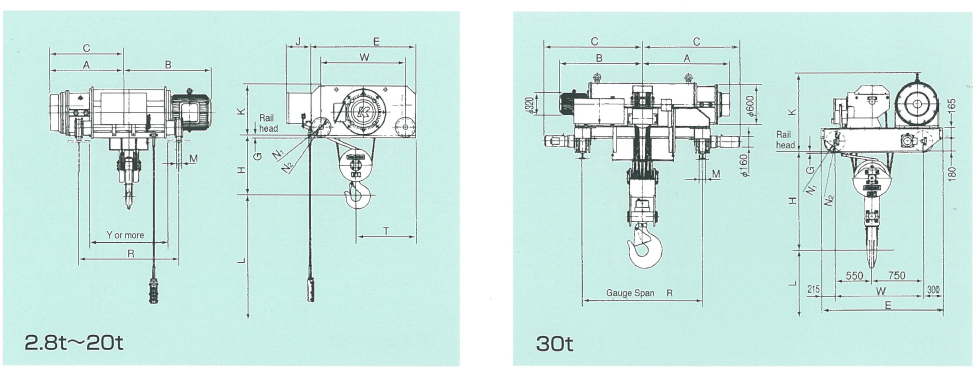

Wire Rope			มิติ (mm)																น้ำหนัก (kg)
Falls	Construction	Dia mm	มิติ (mm)
Falls	Construction	Dia mm	L	H	A	B	C	E	kW	W	J	T	R	Y	M	G	N1	N2
4	6XFi(29)	9	6000	450	560	555	555	780	380	600	200	450	650	400	45	15	Ø150	Ø178	430
4		9	12000	450	705	700	700	780	380	600	200	450	900	700	45	15	Ø150	Ø178	480
4		9	6000	450	560	555	555	780	380	600	200	450	650	400	45	15	Ø150	Ø178	430
4		9	12000	450	705	700	700	780	380	600	200	450	900	700	45	15	Ø150	Ø178	480
4		11.2	8000	540	710	750	715	930	440	750	225	535	900	560	45	20	Ø150	Ø178	720
4		11.2	12000	540	810	850	815	930	440	750	225	535	1150	760	45	20	Ø150	Ø178	780
4		14	8000	660	810	900	-	950	470	750	225	540	1150	750	45	20	Ø150	Ø178	850
4		14	12000	660	910	1000	-	950	470	750	225	540	130	950	45	20	Ø150	Ø178	900
4		16	8000	680	830	835	-	1230	630	950	225	665	900	60	45	20	Ø200	Ø230	1400
4		16	12000	680	955	960	-	1230	630	9952	225	665	1150	850	45	20	Ø200	Ø230	1550
4		20	8000	800	1135	1075	-	1250	680	100	250	690	1400	1040	56	20	Ø200	Ø230	2100
4		20	12000	800	1135	1075	-	1250	680	1000	260	690	1400	1040	56	20	Ø200	Ø230	2200
4		22.4	8000	950	1135	1100	-	1250	681	1000	280	690	1440	1040	56	20	Ø200	Ø230	2250
4		22.4	12000	950	1235	1200	-	1250	680	1000	280	690	1600	1240	56	20	Ø200	Ø230	2350
8		20	800	1450	1315	1250	1465	1815	1150	1300	-	-	1800		80	20	Ø300	Ø340	3800
8		20	12000	1450	15115	1450	16650	1815	1150	1300	-	-	2200		80	20	Ø300	Ø340	4050
