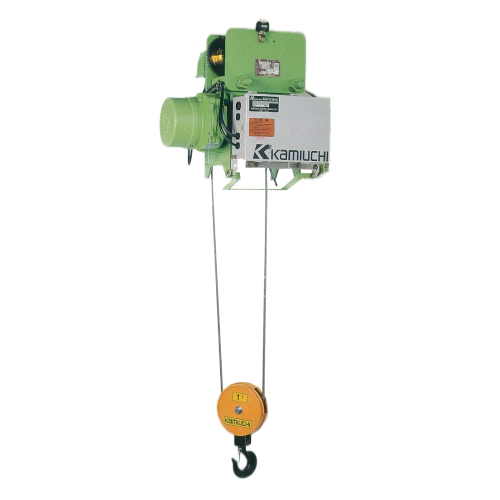

Electric Wire Rope KAMIUCHI S Series
Electric Wire Rope KAMIUCHI S Series is a highly efficient device that excels in its performance. It utilizes a special motor system to conserve energy. This hoist is compact and convenient for both operation and mobility.
- Compact design with small number of parts assures easy assembling, disassembling and maintenance.
- Low headroom structure expands working space.
- New hoisting mechanism with helical gear has reduced the noise.
- Specially designed host-motor with less power consumption.
- Magnetic contactor with mechanical interlock suits inching operation. Electrical interlock also prevents misuse safely.
- Hook has punch marks showing the original distance of hook opening for the convenience of maintenance.
- Small and light push-button switch of ABS resin (rainproof construction).
DIMENSIONS DATA KAMIUCHI S SERIES

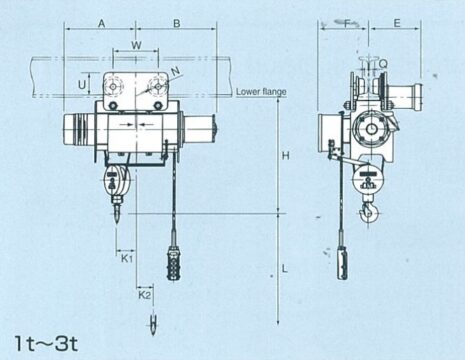

Motor Trolley Hoist
| Rated Load | Model | L | H | A | B | E | F | K1 | K2 | W | Approx Weight (kgf) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SMT-1A | 6000 | 750 | 360 | 390 | 350 | 330 | 60 | 50 | 180 | 150 |
| SMT-1AH | 12000 | 750 | 470 | 500 | 350 | 330 | 120 | 110 | 282 | 180 | |
| 2 | SMT-2A | 6000 | 930 | 390 | 440 | 350 | 350 | 60 | 50 | 180 | 230 |
| SMT-2AH | 12000 | 930 | 510 | 560 | 350 | 350 | 130 | 100 | 82 | 270 | |
| 3 | SMT-3A | 8000 | 1030 | 420 | 470 | 350 | 380 | 70 | 50 | 180 | 300 |
| SMT-3AH | 12000 | 1030 | 550 | 600 | 350 | 380 | 150 | 100 | 282 | 350 |

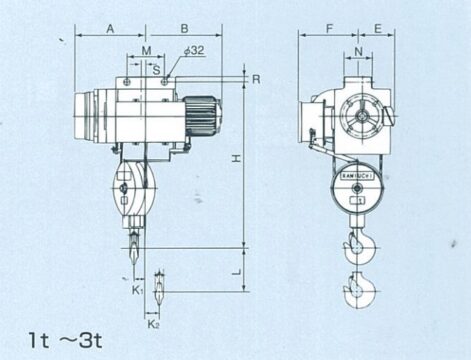

Suspended Hoist
| Rated Load | Model | L | H | A | B | E | F | M | Ø | N | K1 | K2 | R | Approx Weight (kgf) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SMT-1A | 6000 | 750 | 360 | 390 | 350 | 330 | 220 | 32 | 166 | 60 | 50 | 33 | 110 |
| SMT-1AH | 12000 | 750 | 470 | 500 | 350 | 330 | 280 | 32 | 166 | 120 | 110 | 33 | 130 | |
| 2 | SMT-2A | 6000 | 930 | 390 | 440 | 350 | 350 | 220 | 32 | 166 | 60 | 50 | 33 | 190 |
| SMT-2AH | 12000 | 930 | 510 | 560 | 350 | 350 | 280 | 32 | 166 | 130 | 100 | 33 | 230 | |
| 3 | SMT-3A | 6000 | 1030 | 420 | 470 | 350 | 380 | 220 | 32 | 166 | 70 | 50 | 33 | 260 |
| SMT-3AH | 12000 | 1030 | 550 | 600 | 350 | 380 | 280 | 32 | 166 | 150 | 100 | 33 | 300 |
SPECIFICATIONS DATA KAMIUCHI S SERIES
Motor Trolley Hoist
| Rated Load | Model | Lifting Height (m) | Hoist Lifting Speed (m/min) | Hoist Motor | Rated Current (A) | Trolley Speed (m/s) | Trolley Motor | Rated Current (A) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 Hz | 60Hz | kw | Pole | 400V 50HZ | 400V 50HZ | 200V 50HZ | 200V 50HZ | (m/min) | kw | Pole | 400V 50HZ | 400V 50HZ | 200V 50HZ | ||||
| 1 | SMT-1A | 6 | 6 | 7.2 | 1.5 | 4 | 3.2 | 3.1 | 6.3 | 6.1 | 21 | 25 | 0.3 | 8 | 1.8 | 1.5 | 3.6 |
| SMT-1AH | 12 | ||||||||||||||||
| 2 | SMT-2A | 6 | 5.9 | 7.1 | 2.6 | 5.8 | 6.8 | 11.5 | 11.5 | ||||||||
| SMT-2AH | 12 | ||||||||||||||||
| 3 | SMT-3A | 6 | 5.8 | 7 | 3.7 | 8 | 8 | 16 | 16 | ||||||||
| SMT-3AH | 12 | ||||||||||||||||
Suspended Hoist
| Rated Load | Model | Lifting Height (m) | Hoist Lifting Speed (m/min) | Hoist Motor | Rated Current (A) | Wire Rope | |||||||
| 50 Hz | 60Hz | kw | Pole | 400V 50HZ | 400V 50HZ | 200V 50HZ | 200V 50HZ | Falls | Construction | Dia (mm) | |||
| 1 | SMT-1A | 6 | 6 | 7.2 | 1.5 | 4 | 3.2 | 3.1 | 6.3 | 6.1 | 2 | 6XFi (29) | 8 |
| SMT-1AH | 12 | ||||||||||||
| 2 | SMT-2A | 6 | 5.9 | 7.1 | 2.6 | 5.8 | 5.8 | 11.5 | 11.5 | 10 | |||
| SMT-2AH | 12 | ||||||||||||
| 3 | SMT-3A | 6 | 7 | 7 | 3.7 | 8 | 8 | 15 | 16 | 12.5 | |||
| SMT-3AH | 12 | ||||||||||||
