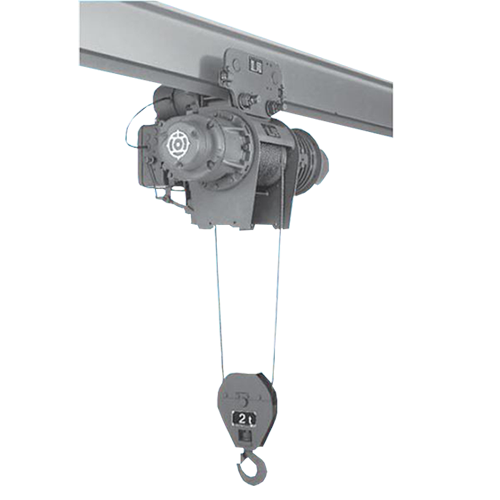

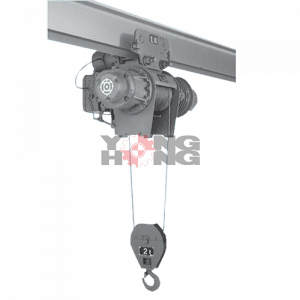

Wire Rope Hoist HITACHI V Series Standard Headroom Type Hoist
HITACHI V Series Standard Headroom Type Hoist This is an orthodox type of hoist widely utilized for general purposes. It boasts high performance for use in rugged jobs such as general production in factories, mining, railroads, and warehouses.
Facebook
Twitter
Email
Print
Wire Rope Hoist HITACHI V Series Standard Headroom Type Hoist
SPECIFICATIONS DATA
| Capacity(t) | 1/2 | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | |||
| Hoisting(m) | 6 and 12 | 8 and 12 | 12 | |||||||||
| Speed(m/min) | 50Hz | 11 | 11 | 8.4 | 7.5 | 6.7 | 6 | 5 | 5 | 4.2 | ||
| 60Hz | 13 | 13 | 10 | 9 | 8 | 7.2 | 6 | 6 | 5 | |||
| Hoisting | Motor | (KW) | 50Hz | 1 | 1.9 | 2.9 | 4.2 | 5.9 | 7.9 | 8.8 | 6.7×2 | 7.5×2 |
| 60Hz | 1.2 | 2.3 | 3.5 | 5 | 7 | 9.5 | 10.5 | 8×2 | 9×2 | |||
| No.of poles | 4 | 4 | ||||||||||
| Speed(m/min) | 50Hz | 21 | 14 | |||||||||
| 60Hz | 25 | 17 | ||||||||||
| Traversing | Motor | (KW) | 50Hz | 0.3 | 0.3 | 0.3 | 0.45 | 0.63 | 0.47×2 | 0.47×2 | 0.7×2 | 0.7×2 |
| 60Hz | 0.36 | 0.36 | 0.36 | 0.55 | 0.75 | 0.56×2 | 0.56×2 | 0.84×2 | 0.84×2 | |||
| No.of poles | 4 | 6 | 4 | |||||||||
| No.of Falls | 2 | 4 | ||||||||||
| Wire Rope | Composition | 6×W(19)-B | 6×Fi(29)-B | 6×Fi(29)-B|WRC-B | ||||||||
| Diam(mm.) | 6.3 | 8 | 11.2 | 14 | 12.5 | 14 | 16 | 20 | 22.4 | |||
| Rating | 40% ED 400 Starts/h | 40% ED 400 Starts/h | ||||||||||
| Operating method | Push-button operation ↑ ↓ ← → ↗ ↙ | Push-button operation ON OFF ↑ ↓ ← → ↗ ↙ | ||||||||||
| Electric source(3 phase) | 200V 50/60Hz,220V 60Hz,380-400V 50Hz,440-460V 60Hz | |||||||||||
| Contral voltage (V) | 200V 50/60Hz | |||||||||||
