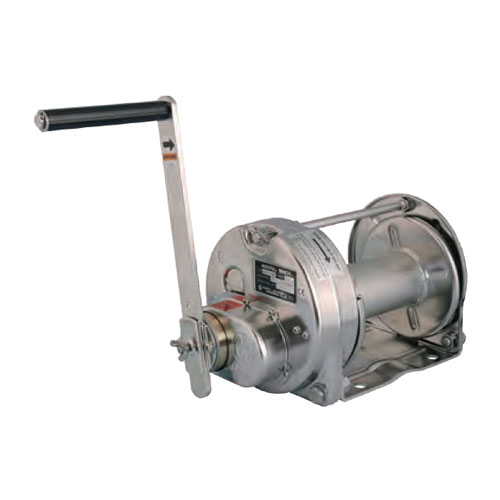

The MAXPULL SB / ESB winch is a stainless steel hand winch hight quality products from japan,Product has installation. Autometic mechanical brake designed to be rotated 360 degree and capacity 0.1-1 t.
MAXPULL SB /ESB Series Primary use
In addition to the above, for all applications that require strength, safety, salt tolerance and chemical resistance
| Model | Wire Rope Tension | Drum Capacity | Winding Layer Number of Wire Rope | Gear Ration | Weight (Body + Handle) |
| SB-1-SI ESB-1-SI | 100 kg (220lbs) 4th Layer or Less | 6-Layers Winding ø 5 mm (6×19)x 35 m (3/16 inch (7×19) x 114ft) | 1st Layer 1:1 r : 14.6kg (32.2lbs) 3rd Layer : 19.0kg (49.9lbs) 4th Layer :21.2kg (46.7lbs) | 1 : 1 | 7.4 kg (16.3lbs) |
| SB-3-SI ESB-3-SI | 300 kg (660lbs) 5th Layer or Less | 6-Layers Winding ø 6 mm (6×37) x 32 m (1/4 inch (6×36) x 104ft) | 1st Layer 1:1 7.7kg ( 7 b ) 3rd Layer : 10.5kg (23.1lbs) 4th Layer :13.3kg (29.3lbs) | 6.25 : 1 | 14.3 kg (31.5lbs) |
| SB-5-SI ESB-5-SI | 500 kg(1,100lbs) 5th Layer or Less | 6-Layers Winding ø 6 mm (6×37) x 40m (1/4 inch (6×36) x 131 ft) | 1st Layer : 11.1 kg ( 24.5lbs ) 3rd Layer : 14.4kg (31.8lbs) 5th Layer :17.7kg (39.0lbs) | 8.9 : 1 | 15.6 kg (34.4lbs) |
| SB-10-SI ESB-10-SI | 1,000 kg (2,200lbs) 5th Layer or Less | 5-Layers Winding ø 8 mm (6×37) x 35m (5/16 inch (6×36) x 114 ft) | 1st Layer : 13.5 kg ( 29.8lbs ) 2nd Layer : 16.0kg (35.3lbs) 3rd Layer :18.5g (40.8lbs) | 12.6 : 1 | 16.6 kg (36.6lbs) |
| Handle Force Handle Length (Effective Max.) 250 mm (9.48inch) | |||||
