Steel Hot Dip Galvanizing (Rotating) Winch MAXPULL GM-GS Series
Steel Hot Dip Galvanizing (Rotating) Winch MAXPULL GM-GS Series Maxpull Series hand winch High quality products Imported from Japan (Made in Japan) is a sling winch designed to be rotated 360 degrees and can be rotated in the clutch as well. Making it possible to support installation in narrow spaces such as wall mounting And installed on the floor. Maxpull MR Series is available in a total of 6 models.[:]
Facebook
Twitter
Email
Print

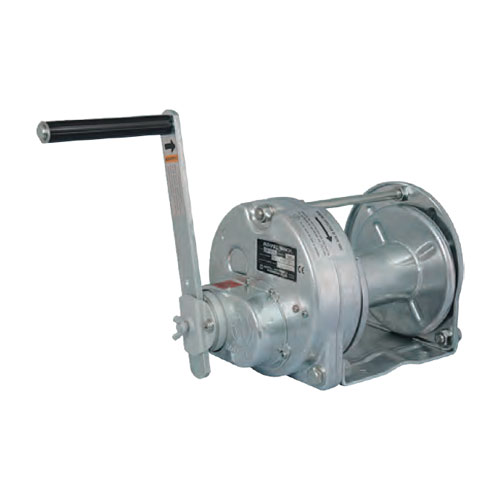

Steel Hot Dip Galvanizing (Rotating) Winch MAXPULL GM-GS Series
- The handle can be rotated 360 degrees
- It has excellent rust and salinity resistance and is cheaper than stainless steel.
- The winch has a clutch and Capstan -drum to choose from.
- Galvanized parts, such as gear box, gear box cover, cable tie roll, housing, base, clutch cover and handle axis
- Bolts, screws, nuts, spring rings and spring are made of SUS-304 stainless steel
MAXPULL GM-GS Series Specifications
| Model | Wire Rope Tension | Drum Capacity | Winding Layer Number of Wire Rope | Gear Ration | Weight (Body + Handle) |
|---|---|---|---|---|---|
| GM - 1 - GS - SI | 100 kg (220lbs) | 6-Layers Winding | 1st Layer 1:1 r : 14.6kg (32.2lbs) | 1:01 | 7.2kg |
| ø 5 mm (6x19) x 35 m | 3rd Layer : 19.0kg(41.9lbs) | (15.9lbs) | |||
| 4th Layer or Less | (3/16 inch (7x19) x 114ft) | 4th Layer :21.2kg(46.7lbs) | |||
| GM - 3 - GS - SI | 300 kg (660lbs) | 6-Layers Winding | 1st Layer 1:1 7.7kg (17.0lbs) | 6.25 : 1 | 14.1kg |
| ø 6 mm (6x37) x 32 m | 3 rd Layer : 10.5kg (23.1lbs) | (31.1lbs) | |||
| 5th Layer or Less | (1/4 inch (6x36) x 104ft) | 5th Layer :13.3ka (29.3lbs) | |||
| GM - 5 - GS - SI | 500 kg (1,100lbs) | 6-Layers Winding | 1st Layer : 11.1 kg ( 24.5lbs ) | 8.9 : 1 | 15.4kg |
| 5th Layer or Less | ø 6 mm (6x37) x 40m | 3 rd Layer : 14.4kg (23.1lbs) | (34.0lbs) | ||
| (1/4 inch (6x36) x 131 ft) | 5th Layer :17.7kg (39.0lbs) | ||||
| GM - 10 - GS - SI | 1,000 kg (2,200lbs) | 5-Layers Winding | 1st Layer : 13.5 kg ( 29.8lbs ) | 12.6 : 1 | 16.4kg |
| ø 8 mm (6x37) x 35m | 3nd Layer : 16.0kg (35.3lbs) | (36.2lbs) | |||
| 3th Layer or Less | (5/16 inch (6x36) x 114 ft) | 3rd Layer :18.5g (40.8lbs) | |||
| GM - 20 - GS - SI | Normal Winding: 400 kg ( 880 lbs) | 5-Layers Winding | 1st Layer : 16.0kg ( 35.3lbs ) | Quick 4 : 1 Winding | 28.2kg |
| 3th Layer | ø 9 mm (6x37) x 38m | 2nd Layer : 18.9kg (41.7lbs) | (62.2lbs) | ||
| (3/8 inch (6x36) x 124 ft) | 3rd Layer :21.8g (48.1lbs) | Normal 20 : 1 Winding | |||
| Quick Winding: 2,000 kg 4,400 lbs) or Less | |||||
| GM - 10 - GS - SI | 3,000 kg (6,600lbs) | 4-Layers Winding | 1st Layer : 13.9kg ( 30.6lbs ) | 35.5 : 1 | 37.7kg |
| ø12 mm (6x37) x 35m | 2rd Layer : 17.2kg (37.9lbs) | (83.1lbs) | |||
| 3th Layer or Less | (7/16 inch (6x36) x 114 ft) | 3th Layer :20.5g (45.2lbs) | |||
| Handle Force Handle Length (Effective Max.) 250 mm (9.84inch) | |||||
