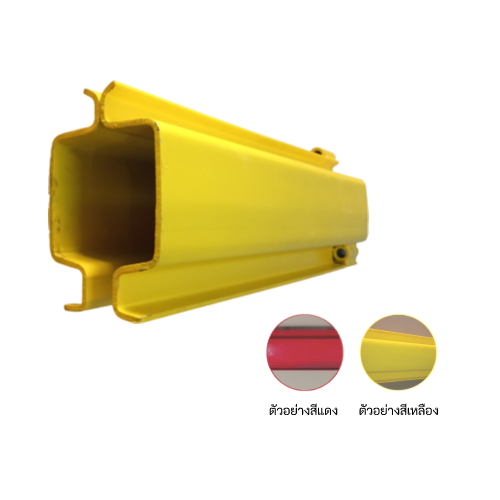

Light Rail System HANKOOK HR Series
HANKOOK HR Series is a precast light rail system that is high-quality, durable, and versatile. It can be used in any environment and is designed for easy assembly with a modular installation system that ensures fast and safe installation. The series consists of three different models, each featuring a simple and easy-to-install design. All components are easily assembled and disassembled, making installation and maintenance quick and easy.
Facebook
Twitter
Email
Print
Structure Light Rail System

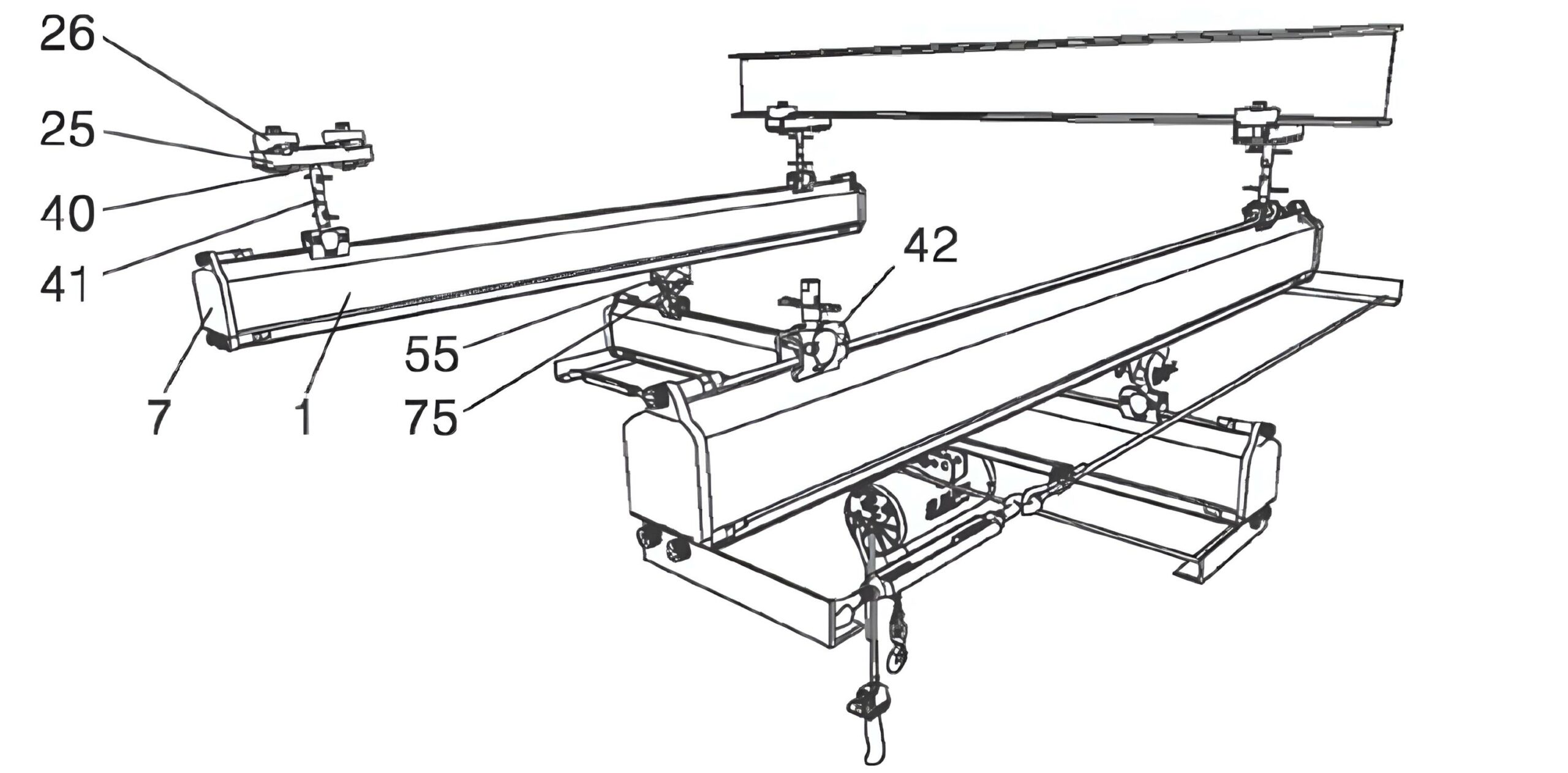

Single girder Suspension crane

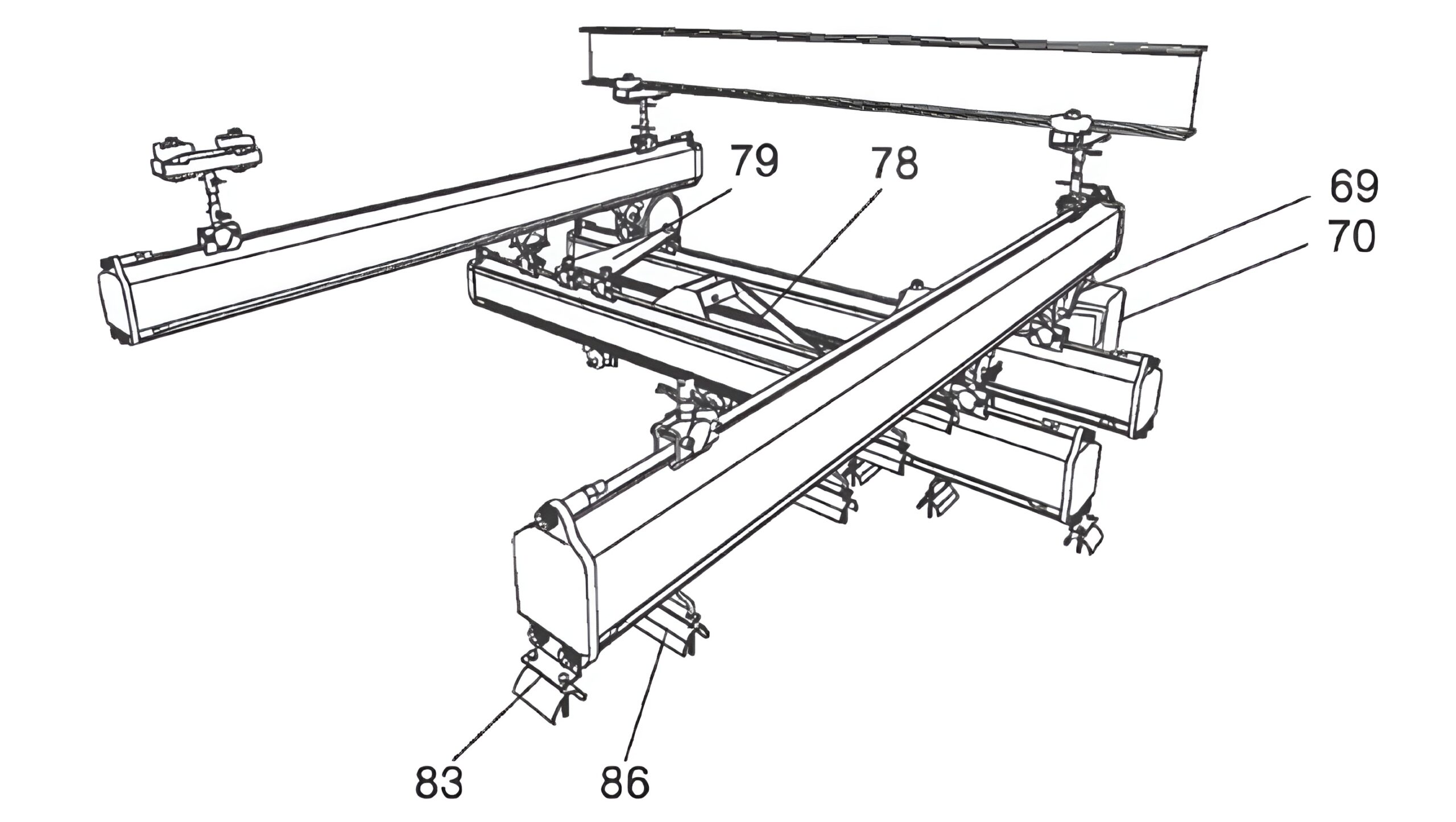

Double girder Suspension crane

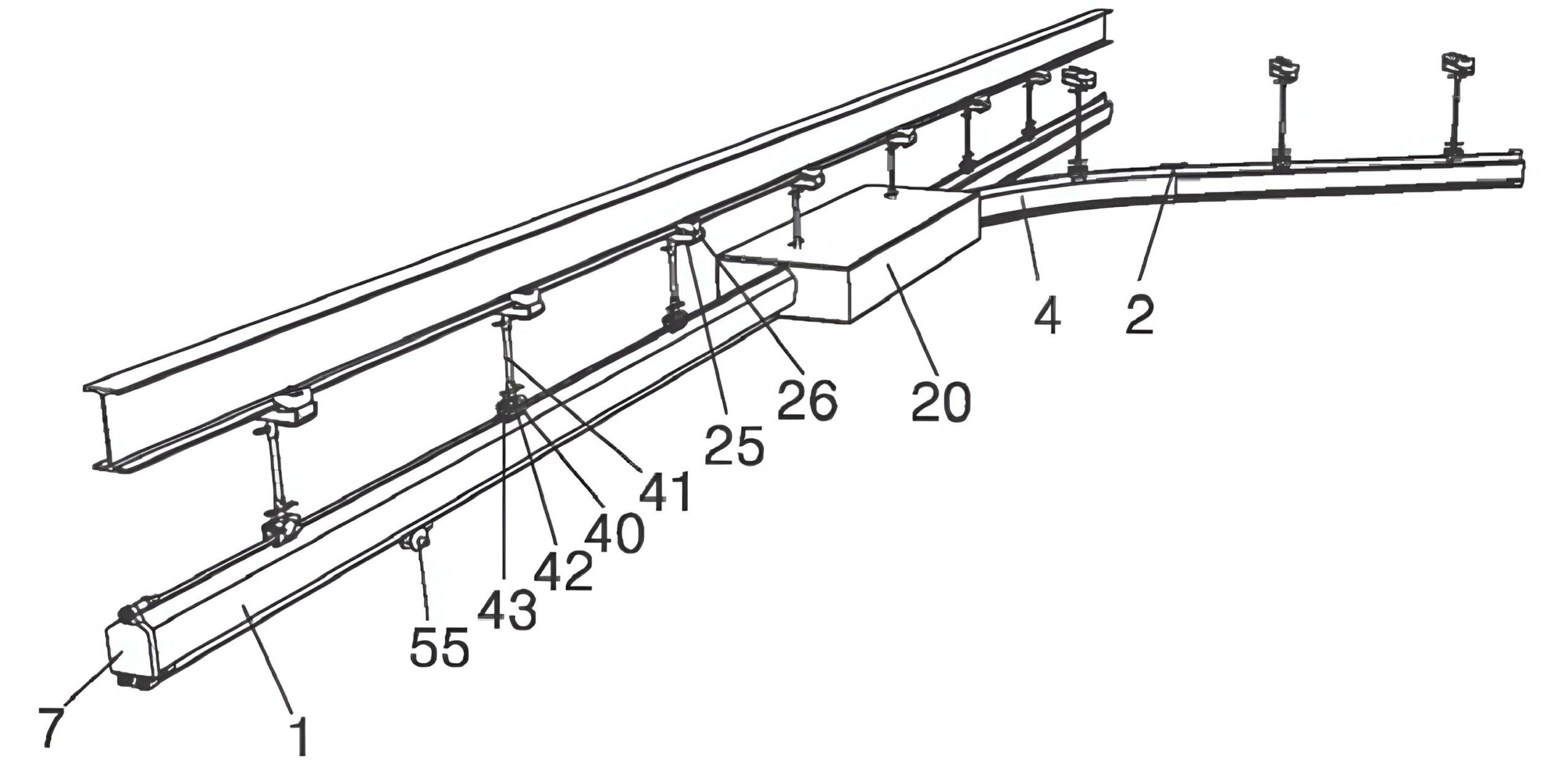

Monorail type
| No. | Designation. | No. | Designation. | No. | Designation. |
|---|---|---|---|---|---|
| 1 | Straight rail section | 40 | Ball head suspension rodu | 70 | Friction wheel travel drive |
| 2 | Joint bolt set | 41 | Suspension rod | 75 | Crane suspension eye |
| 4 | Curved rail section | 42 | Rail suspension clamp | 78 | Crab frame |
| 6 | Internal buffer stop | 43 | Spring clip | 79 | Bracing frame |
| 7 | End cap with buffer | 44 | Ball head bolt | 83 | Cable end |
| 20 | rail switch | 55 | Trolley | 86 | Cable trolley |
| 25 | Upper suspension bracket | 57 | Load bar | - | - |
| 26 | Upper suspension clamp | 69 | Trolley for friction wheel | - | - |

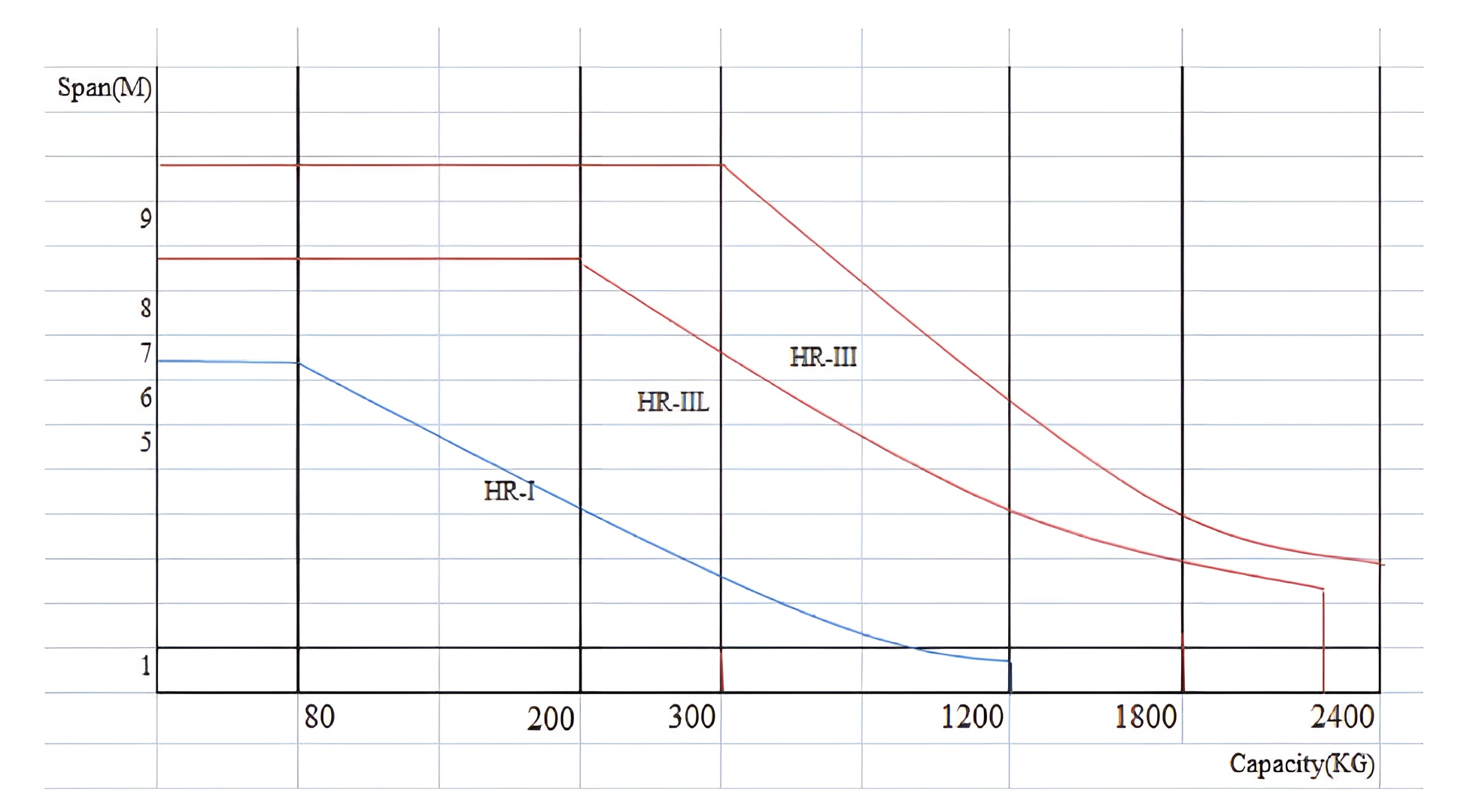

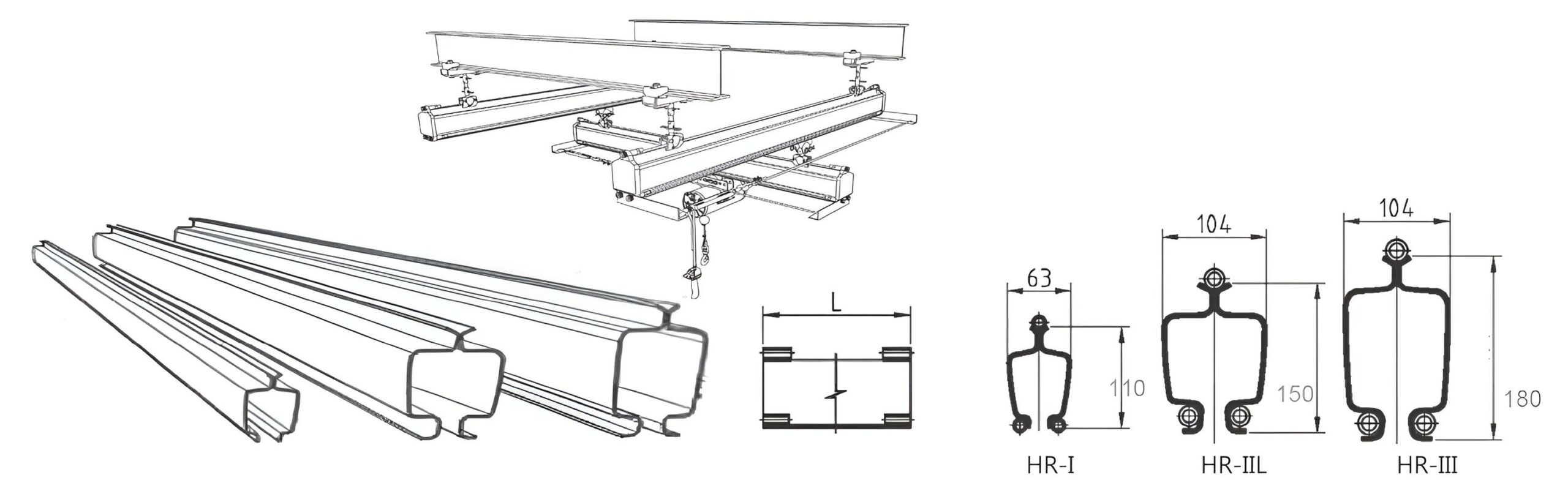

Specifications & Performance Curves
| Length L | HR-I | HR-IIL | HR-III | |||
|---|---|---|---|---|---|---|
| Weight appr.kg | Part. No. | Weight appr.kg | Part. No. | Weight appr.kg | Part. No. | |
| 1000 mm | 6.4 | HR9601120 | 13.8 | HR9601130 | 15.7 | HR9601140 |
| 2000 mm | 12.8 | HR9601220 | 27.6 | HR9601230 | 31.4 | HR9601240 |
| 3000 mm | 19.2 | HR9601320 | 41.4 | HR9601330 | 47.1 | HR9601340 |
| 4000 mm | 25.6 | HR9601420 | 55.2 | HR9601430 | 62.8 | HR9601440 |
| 5000 mm | 32.0 | HR9601520 | 69 | HR9601530 | 78.5 | HR9601540 |
| 6000 mm | - | - | 82.8 | HR9601630 | 94.2 | HR9601640 |
