Lever Hoist Elephant YA Series
Lever Hoist Elephant YA Series Hand Chain Hoist Chang (Elephant Lever Hoist) from Japan (Made in Japan),It has capacity lifting start 0.8 to 9 Tons available several versions of its size, weight lifting, ranging in size from 0.8 to 9 tons available in five models, namely, hand chain hoist Elephant Rock Model YA-. 80, YA-100,YA-160, YA-320, YA-630 and model YA-900.
Facebook
Twitter
Email
Print

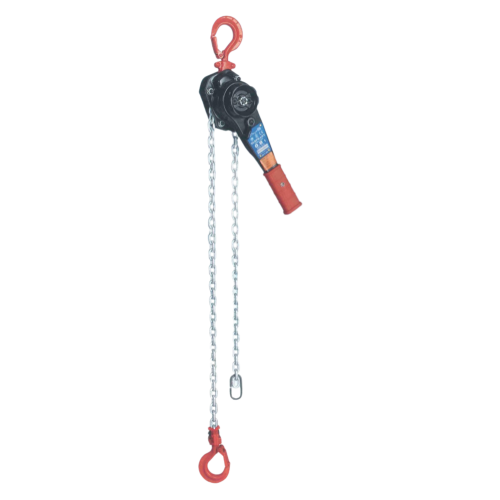

Lever Hoist ELEPHANT YA Series
Lever block ELEPHANT YA Series YA-80,YA-100,YA-160,YA-320,YA-630,YA-900
- High corrosion resistant chain With the use of technology Zinc at the chain, which is different from other brands Therefore suitable for applications that require high durability
- The new type of locking tongue Add a groove on the safety latch to make the lock and hook fit tightly. Prevent more loose And increase the security level
- New lever shape By designing a lever shape Is a curved type that rotates Increasing the flexibility of working in a limited space makes it easy to rotate, not like other brands.
- New type brake system Elephant Brand Hand Chain Hoist YA Series The Braking System Rules by using the mechanical brake principle in the heavy duty electric chain hoist For maximum safety
- Easy to adjust free rotation points Just a little adjustment
ELEPHANT YA Series Specifications
Elephant YA Series YA-80,YA-100, YA-160, YA-320, YA-630, YA-900
| Model | Working Load Ton | Standard lifting | hand effort to lift full working load | Diameter of load chain | Capacity |
| (t.) | (m.) | (kgf.) | (mm.) | (kg.) | |
| YA-80 | 0.8 | 1.5 | 30 | 5.6 | 6 |
| YA-100 | 1 | 1.5 | 37 | 5.6 | 6.2 |
| YA-160 | 1.6 | 1.5 | 30 | 7.1 | 9.2 |
| YA-320 | 3.2 | 1.5 | 37 | 9 | 15.5 |
| YA-630 | 6.3 | 1.5 | 38 | 9×2 | 26.5 |
| YA-900 | 9 | 1.5 | 39 | 9×3 | 42 |

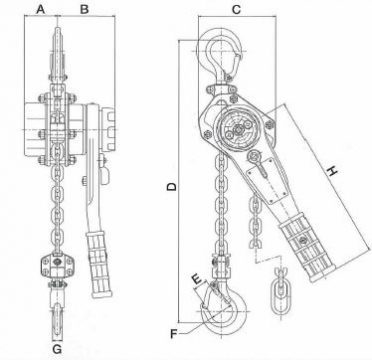

ELEPHANT YA Series Dimensions
Elephant YA Series YA-80,YA-100, YA-160, YA-320, YA-630, YA-900
| Model | A | B | C | D | E | F | G | H |
| YA-80 | 53 | 91 | 122 | 290 | 23 | 36 | 15 | 268 |
| YA-100 | 53 | 91 | 122 | 312 | 28 | 43 | 16 | 268 |
| YA-160 | 63 | 99 | 136 | 352 | 29 | 43 | 21 | 310 |
| YA-320 | 82.5 | 104 | 180 | 420 | 36 | 53 | 28 | 310 |
| YA-630 | 82.5 | 104 | 235 | 564 | 47 | 70 | 34 | 310 |
| YA-900 | 82.5 | 104 | 300 | 689 | 73 | 85 | 47.5 | 310 |
