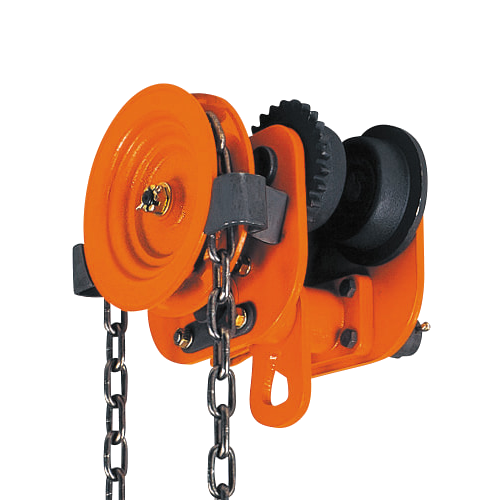

Gear Trolley ELEPHANT G Series
Gear Trolley ELEPHANT G Series Elephant Geared trolley use with chain hoists can be adjust to size and shape of steel beam system bearing in hand chain wheel.
- Elephant adjustable trolleys are adjustable to any beam width,in three stages,simply by increasing or decreasing the number of the adjusting collars.
- Wheel of the trolley fit both I-beam and H-beam wide flange
- High quality closed bearings employed in the trolley provide smooth wheel traveling.
Elephant Geared Trolley Specifications
| Model | Capacity | I-beam width | Diameter x pitch of Hand Chain |
Min. radius of I-beam (mm) |
Net weight (kg) |
||
| (ton.) | No Collars (mm) |
2 Collars (mm) |
4 Collars (mm) |
||||
| ELEPHANT G-0.5 | 0.5 | 75 | 100 | 125 | 5×22.5 | 900 | 12 |
| ELEPHANT G-1 | 1 | 75 | 100 | 125 | 6×26.6 | 1100 | 16 |
| ELEPHANTG-1.6 | 1.6 | 100 | 125 | 150 | 6×26.6 | 1200 | 24.5 |
| ELEPHANT G-2 | 2 | 100 | 125 | 150 | 6×26.6 | 1200 | 25 |
| ELEPHANT G-3.1 | 3.15 | 100 | 125 | 150 | 6×26.6 | 1700 | 33.5 |
| ELEPHANT G-5 | 5 | 125 | 150 | 175 | 6×26.6 | 2300 | 55.8 |
| ELEPHANT G-8 | 8 | 150 | 175 | – | 5×23.6 | 3000 | 107 |
| ELEPHANT G-10 | 10 | 150 | 175 | – | 5×23.6 | 3000 | 117 |
| ELEPHANT G-15 | 15 | 175 | 190 | – | 5×23.6 | 6000 | 315 |
| ELEPHANT G-20 | 20 | 175 | 190 | – | 5×23.6 | 6000 | 420 |
| ELEPHANT G-30 | 30 | 190 | – | – | 5×23.6 | 12000 | 600 |

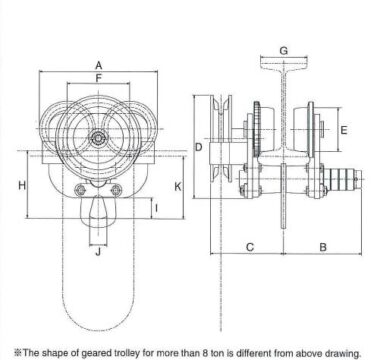

Elephant Geared Trolley Dimensions
| Model | A | B | C | D | E | F | G | H | I | J | K |
| G-0.5 | 190.5 | 125.5 | 118.5 | 164 | 70 | 100.5 | 75•100•125 | 108 | 33 | 28 | 100 |
| G-1 | 221 | 125.5 | 123.5 | 187 | 80 | 116 | 75•100•125 | 112 | 32 | 30 | 104 |
| G-1.6 | 258.5 | 143 | 136 | 233 | 98 | 136 | 100•125•150 | 150 | 52 | 40 | 140 |
| G-2 | 258.5 | 143 | 136 | 233 | 98 | 136 | 100•125•150 | 150 | 52 | 40 | 140 |
| G-3.1 | 287.5 | 144 | 137 | 253 | 115 | 150 | 100•125•150 | 178 | 65 | 50 | 168 |
| G-5 | 326.5 | 165 | 165.5 | 301 | 125 | 169 | 125•150•175 | 223 | 75 | 60 | 210 |
| G-8 | 434 | 188 | 297.5 | 308 | 158 | 220 | 150•175 | 246 | 100 | 80 | 233 |
| G-10 | 434 | 188 | 300.5 | 308 | 158 | 220 | 150•175 | 246 | 100 | 80 | 233 |
| G-15 | 580 | 231 | 326 | 443 | 197 | 295 | 175•190 | 272 | 86 | 95 | 247 |
| G-20 | 580 | 231 | 329 | 443 | 197 | 295 | 175•190 | 272 | 86 | 95 | 247 |
| G-30 | 933.5 | 304 | 444 | 578 | 245 | 600 | 190 | 588 | 185 | 150 | 563 |
