ELEPHANT P Series

Plain Trolley ELEPHANT P Series

Plain Trolley ELEPHANT Elephant Plain trolley use with chain hoists. High-quality products imported from Japan (Made in Japan) used to hang hoist move on the beam I-BEAM measures for use as weight lifting all 10 models, including models P-0.5, P-1, P. -1.6, P-2, P-3.1, P-5, P-8, P-10, P-15 and P-20 model, size, weight lifted from 0.5 to 20 tons.

Category Tags , , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

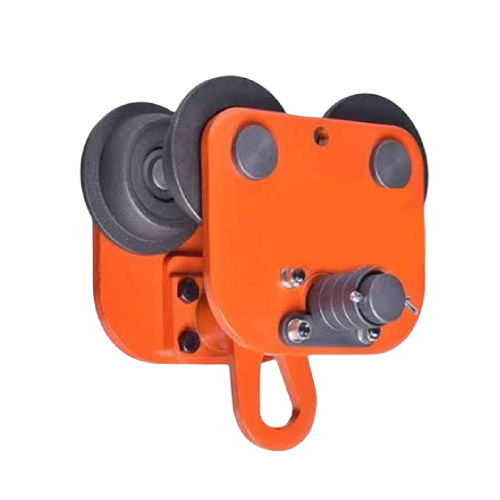

Plain Trolley ELEPHANT P Series

Plain Trolley ELEPHANT Elephant Plain trolley use with chain hoists. High-quality products imported from Japan (Made in Japan)

  • Elephant adjustable trolleys are adjustable to any beam width,in three stages,simply by increasing or decreasing the number of the adjusting collars.
  • Wheel of the trolley fit both I-beam and H-beam wide flange
  • High quality closed bearings employed in the trolley provide smooth wheel traveling.



Plain Trolley ELEPHANT  Specifications

Model Capacity I-beam width Min. radius
of I-beam (mm)		 Net weight
(kg)
(ton.) No Collars (mm) 2 Collars (mm) 4 Collars (mm)
ELEPHANT P-0.5 0.5 75 100 125 900 8
ELEPHANT P-1 1 75 100 125 1100 11
ELEPHANT P-1.6 1.6 100 125 150 1200 19
ELEPHANT P-2 2 100 125 150 1200 19
ELEPHANT P-3.1 3.1 100 125 150 1700 27
ELEPHANT P-5 5 125 150 175 2300 48.5
ELEPHANT P-8 8 150 175 – 3000 98
ELEPHANT P-10 10 150 175 – 3000 100
ELEPHANT P-15 15 175 190 – 6000 295
ELEPHANT P-20 20 175 190 – 6000 400

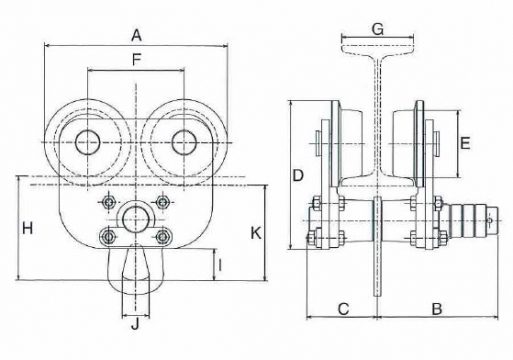

Plain Trolley ELEPHANT Dimensions

dimension-elephant-P

รุ่น A B C D E F G H I J K
P-0.5 190.5 125.5 75.5 155 70 100.5 75•100•125 108 33 28 100
P-1 221 125.5 73.5 172 80 116 75•100•125 112 32 30 104
P-1.6 258.5 143 94 208 98 136 100•125•150 150 52 40 140
P-2 258.5 143 94 208 98 136 100•125•150 150 52 40 140
P-3.1 287.5 144 97 239 115 150 100•125•150 178 65 50 168
P-5 326.5 165.5 123.5 289 125 169 125•150•175 223 75 60 210
P-8 434 176.5 176.5 332 158 220 150•175 246 100 80 233
P-10 434 176.5 176.5 332 158 220 150•175 246 100 80 233
P-15 577 231 231 463 197 295 175•190 272 86 95 247
P-20 577 231 231 463 197 295 175•190 272 86 95 247
