Air Motor GAST MVP Series
GAST Air motor , MVP, quality products from America With high-efficiency MVP’S Modular air motor technology, suitable for non sparking applications such as paint production, thinner, canning industry And the food industry, etc.
Facebook
Twitter
Email
Print

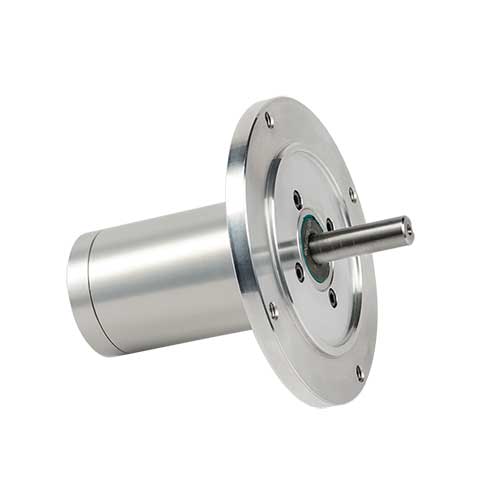

Air Motor GAST MVP Series
GAST MVP Series MVP02 HIGH TORQUE GEAR REDUCED,MVP02,MVP03,MVP05,MVP06
property
- Providing high torque
- Small size, light weight
- Silent soundฃ
- Use less air, easy to maintain
- Can be easily replaced with a new propeller
| MODEL | GAST MVP02 HIGH TORQUE GEAR REDUCED | GAST MVP02 | GAST MVP03 | GAST MVP05 | GAST MVP06 | |
| POWER | HP | 1 (0.75 kW) | 1(0.75kW) | 1.6 (1.19 kW) | 3 (2.24kW) | 4 (2.98 kW) |
| MAX SPEED | rpm | 150 | 3500 | 3500 | 3500 | 3500 |
| TORQUE @ MAX SPEED | lb-in | 340 (38.4 Nm) | 23 (2.6Nm) | 29 (3.28Nm) | 49 (5.5Nm) | 68 (7.7Nm) |
| MAX AIR CONSUMPTION | cfm | 46 (78 m3/h) | 46 (78 m3/h) | 60 (102m3/h) | 84 (143m3/h) | 98 (167m3/h) |
