air-motor-gast-2AM

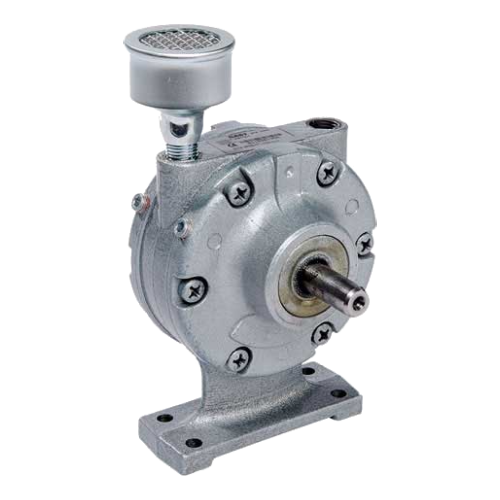

Air Motors GAST 2AM Series

Air Motors GAST 2AM Series wind motor is a high quality product imported from the United States. Suitable for industrial applications that require high security. Don’t want sparks Or operations that require explosion protection, such as industrial work related to stirring, stirring, thinner, etc.

Category Tags , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

Air Motors GAST 2AM Series

GAST 2AM Series 2AM-FCW-13, 2AM-NCW-7A,2AM-NRV-89,2AM-NRV-90, 2AM-ACC-91 ,2AM-ARV-92,2AM-NCC-43A,2AM-ARV-93 ,2AM-FCC-1

Highlights of Gast Air Motors (Air Motors)

  • Work continuously for a long time with Self-sealing vans system to be able to work continuously for a long time. More working hours than using an electric motor Eliminating motor burns
  • Adjustable duty cycle Can adjust the cycle of the wind motor By increasing or decreasing air pressure
  • Resistant to high temperatures Because the wind is used to drive the motor, the wind motor can operate in areas with high temperatures. Resistant to temperatures up to 250 ° F (120 ° C)
  • High security Since there is no need to use electricity to adjust the speed of the air motor, there is no need to worry about accidentally starting the electric ignition.
  • Up to 3/4 hp, speed 300 to 3,000 rpm, maximum pressure 100 psi (7 bar)



GAST 2AM Series  Specifications

GAST 2AM Series 2AM-FCW-13, 2AM-NCW-7A,2AM-NRV-89,2AM-NRV-90, 2AM-ACC-91 ,2AM-ARV-92,2AM-NCC-43A,2AM-ARV-93 ,2AM-FCC-1
MODEL GAST 2AM-FCW-13 GAST 2AM-NCW-7A GAST 2AM-NRV-89 GAST 2AM-NRV-90
Mounting Foot mounting Hub mounting Hub mounting NEMA 56C Flange
Rotation CLOCKWISE CLOCKWISE REVERSIBLE REVERSIBLE
Fitting NPT 1/4 1/4 1/4 1/4
Vane 4 4 4 4
Motor HP 0.9 0.9 0.9 0.9
Max Torque Nm 3 3 3 2
Max Speed RPM 3,000 3,000 3,000 3,000
WxLxH mm 105X126X135 63x126x104 63x126x105 166x150x115



MODEL GAST 2AM-ACC-91 GAST 2AM-ARV-92 GAST 2AM-NCC-43A GAST 2AM-ARV-93 GAST 2AM-FCC-1
Mounting FACE IEC72 IEC 72 Flange NEMA 56C Flange FACE mount Foot mounting
Rotation COUNTER CLOCKWISE REVERSIBLE COUNTER CLOCKWISE REVERSIBLE COUNTER CLOCKWISE
Fitting in 1/4 BSP 1/4  BSP 1/4 NPT 1/4  BSP 1/4  NPT
Vane 4 4 4 4 4
Motor HP 0.9 0.9 0.9 0.9 0.9
Max Torque Nm 3 3 3 3 3
Max Speed RPM 3,000 3,000 3,000 3,000 3,000
WxLxH mm 166x150x115 160x127x105 166x150x115 160x127x105 105x126x135



Yonghong(Thailand)Co.,Ltd.We are Import and distribution Industrial Products as Air compressor,water pump ,Chemical Pump ,Vacuum pump,Pressure tank , motor ,AIR MOTOR ,Hoist ,Crane,Burner and Industrial machinery equipment.We offer after-sales service.Trustworthy for over 60 years.
